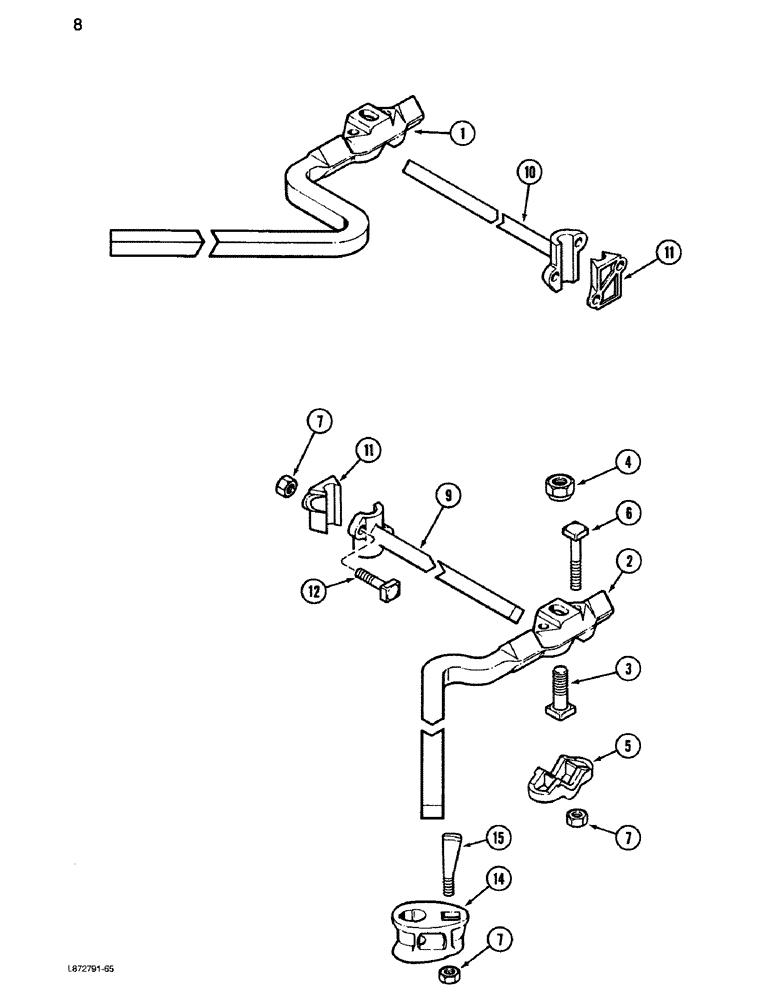

Запчасти Case IH 265 (08) - FRONT TOOL BARS AND EXTENSIONS, 616 STYLE

1976209C1

BAR ATTACHMENT - tool, six sweep (Machinery Item, order 0241009)

1шт.

1

512421R1

BAR

- tool, left front

1шт.

2

1973313C2

BAR ASSY.

BAR - tool, right front

1шт.

3

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

- square head, 7/8 NC x 2-3/4 inch, Grade 1

2шт.

4

30537B

NUT

- 7/8 inch NC, special

2шт.

5

547750R1

CLAMP

- tool bar extension

2шт.

6

18960R1

BOLT,5/8" - 11 x 4", Gr 2

- square head, 5/8 NC x 4 inch, Grade 1

4шт.

7

129-107

NUT,5/8"-11, G5

12шт.

9

30791BA

EXTENSION

- tool bar, right, 13-1/2 inch

1шт.

10

30927B

EXTENSION

- tool bar, left, 16-1/2 inch

1шт.

11

510918R1

CLAMP

CAP - tool bar extension

2шт.

12

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- square head, 5/8 NC x 2-1/2 inch, Grade 1

4шт.

14

511985R2

CLAMP

- standard

4шт.

15

511990R1

BOLT

BOLT - wedge, 5/8 inch NC

4шт.
