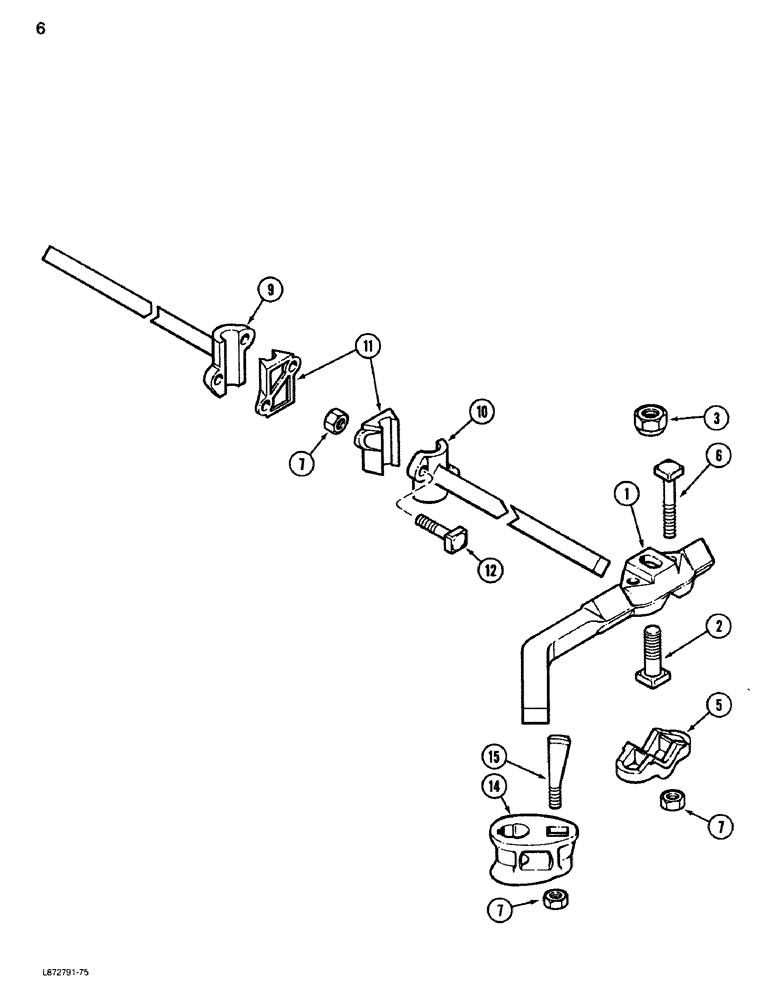

Запчасти Case IH 265 (06) - FRONT TOOL BARS AND EXTENSIONS, 416 STYLE

1976202C1

BAR ATTACHMENT - tool, four sweep (Machinery Item, order 0241008)

1шт.

1

512419R1

BAR

- tool, front

2шт.

2

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

- square head, 7/8 NC x 2-3/4 inch, Grade 1

2шт.

3

30537B

NUT

- 7/8 inch NC, special

2шт.

5

547750R1

CLAMP

- tool bar extension

2шт.

6

18960R1

BOLT,5/8" - 11 x 4", Gr 2

- square head, 5/8 NC x 4 inch, Grade 1

4шт.

7

129-107

NUT,5/8"-11, G5

10шт.

9

30791BA

EXTENSION

- tool bar, left, 13-1/2 inch

1шт.

10

30790BA

EXTENSION

- tool bar, right, 8 inch

1шт.

11

510918R1

CLAMP

CAP - tool bar extension

2шт.

12

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- square head, 5/8 NC x 2-1/2 inch, Grade 1

4шт.

14

511985R2

CLAMP

- standard

2шт.

15

511990R1

BOLT

BOLT - wedge, 5/8 inch NC

2шт.
