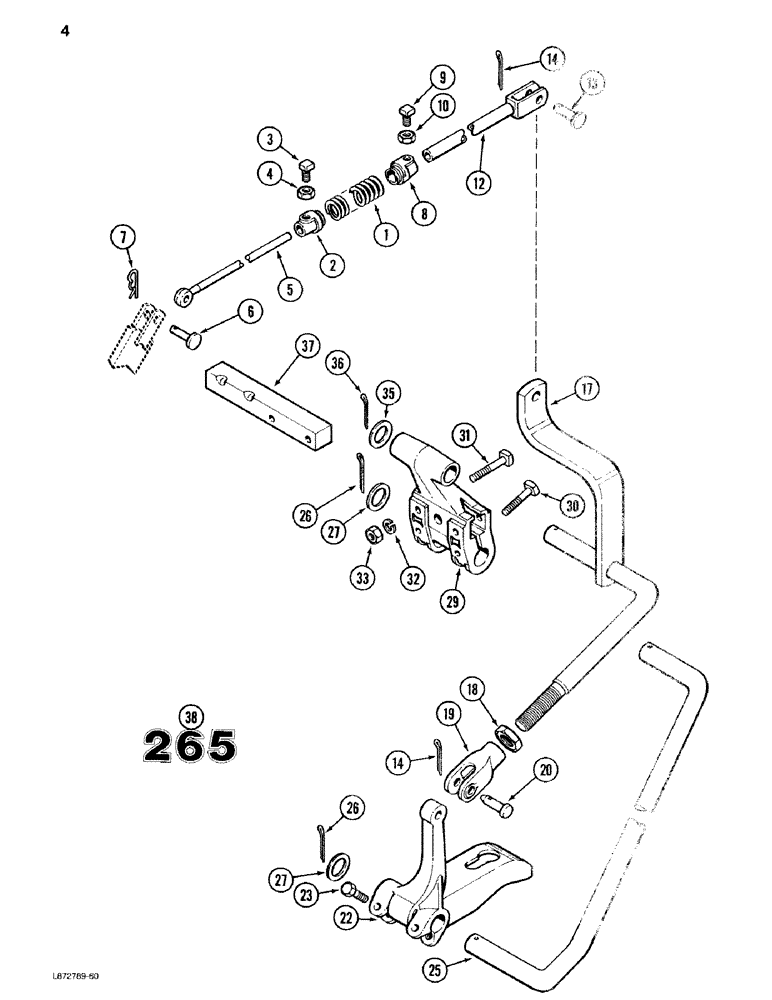

Запчасти Case IH 265 (04) - RIGHT FRONT FRAME AND LIFT SPRING

1

PO27501

SPRING

- lift

1шт.

2

514609R91

PLUG

ASSEMBLY - spring, rod end

1шт.

3

20900R1

SET SCREW

- square head set, 1/2 NC x 1 inch

1шт.

4

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

5

PO28372

ROD

- lift, front

1шт.

6

466331R1

PIN

- headed, 9/16 x 1-1/2 inch

1шт.

7

407212R1

COTTER PIN

PIN - hair

1шт.

8

514608R91

PLUG

ASSEMBLY - spring, pipe end

1шт.

9

20900R1

SET SCREW

- square head set, 1/2 NC x 1 inch

1шт.

10

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

12

1254244C1

ROD

PIPE - lift

1шт.

13

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN - headed, 5/8 x 1-13/16 inch, Grade 1

1шт.

14

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

17

1960407C1

LINK ASSY.

ARM - lift, right

1шт.

18

516773R1

NUT

- hex jam, special

1шт.

19

516766R1

YOKE

CLEVIS - adjusting, lift arm

1шт.

20

512654R1

PIN

- headed, special

1шт.

22

1254221C1

BEAM

BRACKET - tool bar, right

1шт.

23

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch, Grade 1

2шт.

25

1254228C1

ROD

BEAM - gang, right

1шт.

26

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

27

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch

2шт.

29

PO3100B

ARM

BEARING - gang beam, right

1шт.

30

18941R1

BOLT,1/2" - 13 x 2 3/4", Gr 2

- square head, 1/2 NC x 2-3/4 inch, Grade 1

2шт.

31

18942R1

BOLT,1/2" - 13 x 3", Gr 2

- square head, 1/2 NC x 3 inch, Grade 1

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

35

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

36

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

37

1254222C1

BAR

- frame, right front

1шт.

38

1973272C1

DECAL

- model number

1шт.
