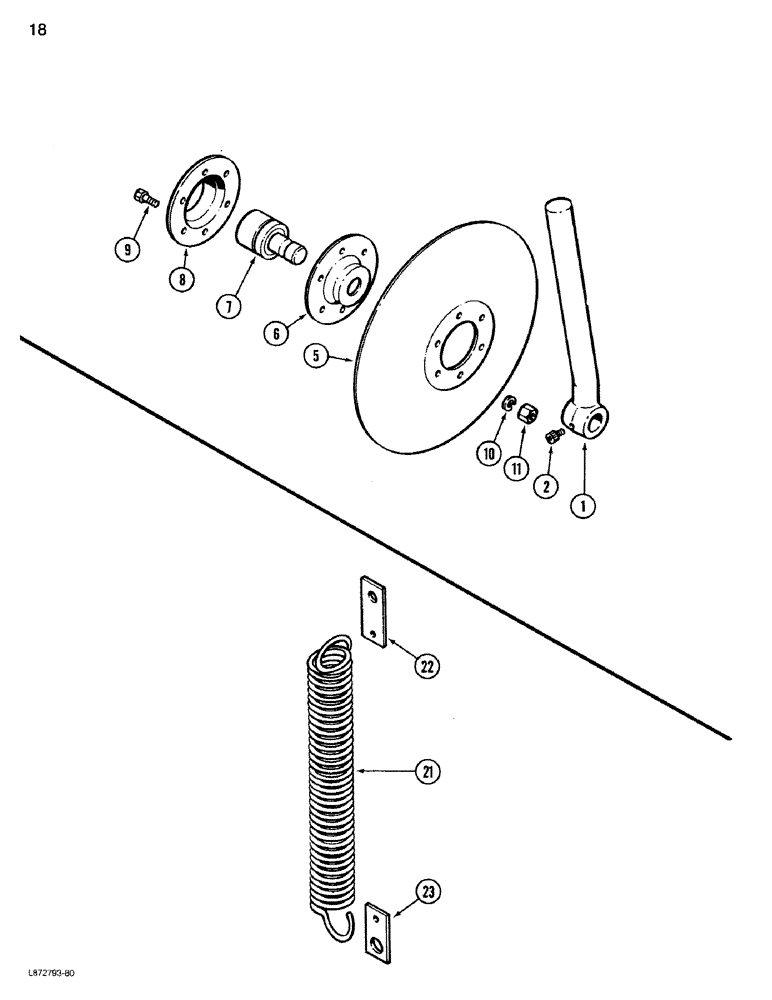

Запчасти Case IH 265 (18) - 13 INCH DISK HILLER

469370R91

HILLER ATTACHMENT - disk, 13 inch (Machinery Item, order 0241006)

2шт.

1

469373R1

SUPPORT ASSY.

STANDARD - straight

1шт.

2

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW - hex socket set, 3/8 NC x 7/16 inch

1шт.

5

469372R1

DISC,13"

DISK - hiller, 13 inch

1шт.

6

468009R1

RETAINER

HOUSING - bearing, open half

1шт.

7

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSEMBLY - ball

1шт.

8

468008R1

COVER

HOUSING - bearing, closed half

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

11

9635082

NUT,5/16" - 18, Gr 5

6шт.

1973312C1

SPRING ATTACHMENT - down pressure (Machinery Item, order 0242540)

1шт.

21

1254385C1

SPRING

- extension, down pressure spring

1шт.

22

1976281C1

STRAP

- attaching, upper, down pressure spring

1шт.

23

1976280C1

STRAP

- attaching, lower, down pressure spring

1шт.
