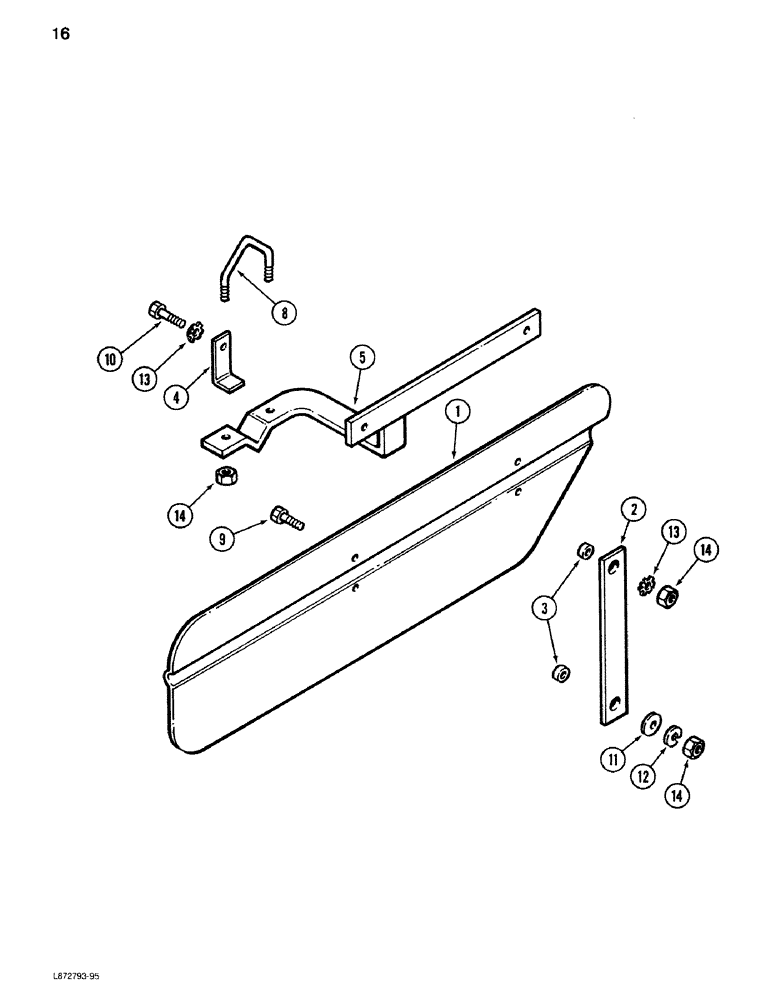

Запчасти Case IH 265 (16) - CROP SHIELD

122SHLD

SHIELD

ATTACHMENT - crop (Machinery Item, order 0241007)

1шт.

1

512007R1

SUPPORT

SHIELD - crop, left (Shown)

1шт.

1

512008R1

SHIELD

- crop, right

1шт.

2

511999R1

LINK

- pivot

4шт.

3

512836R1

WASHER

BUSHING - pivot link

8шт.

4

515217R1

SUPPORT

CLIP - adjusting

2шт.

5

517709R11

BRACKET

- shield, left (Shown)

1шт.

5

517710R11

BRACKET

- shield, right

1шт.

8

517711R1

BOLT,3/8" - 16 x 2 1/4"

U-BOLT - 3/8 inch NC

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

25846R1

WASHER

- flat, hardened

6шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

13

138493

WASHER

- external tooth, 7/16 inch

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.
