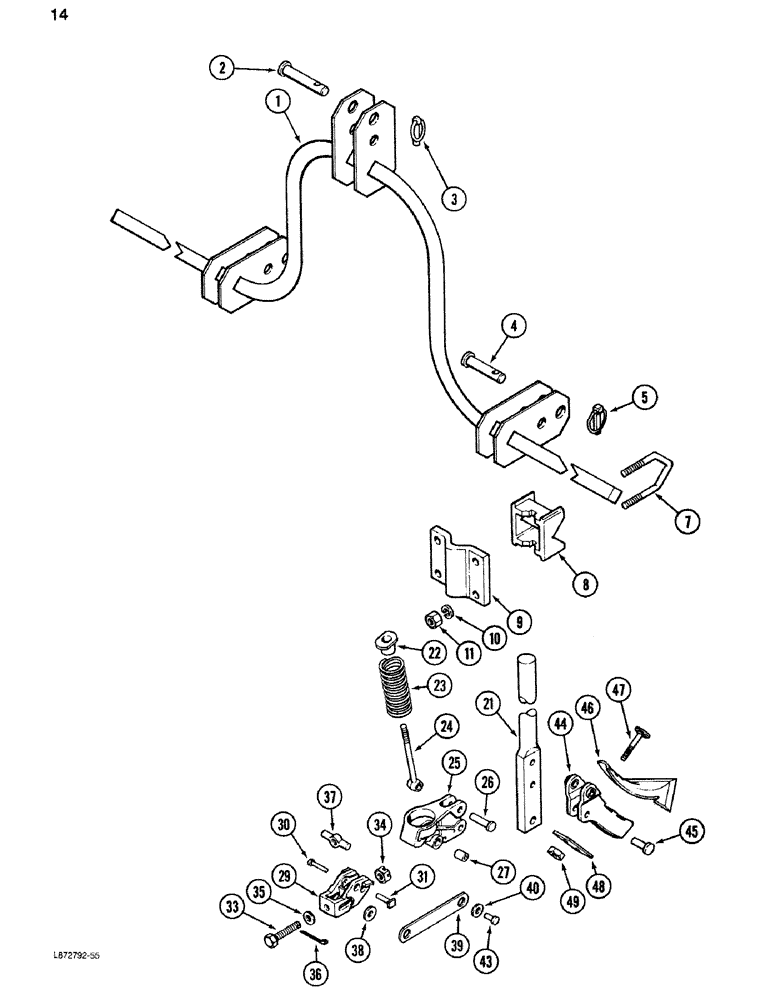

Запчасти Case IH 265 (14) - REAR CULTIVATOR ATTACHMENT

1337295C1

CULTIVATOR ATTACHMENT - rear (Machinery Item, order 0241005)

1шт.

1

1960409C1

BAR ASSY.

BAR - tool, rear

1шт.

2

1273157C2

PIN

- pivot

1шт.

3

372907R91

LINCH PIN

PIN - spring lock

1шт.

4

1973311C1

HITCH PIN

PIN - pivot

2шт.

5

533189R1

PIN

- spring lock

2шт.

7

1973302C1

U-BOLT,1/2" - 13 x 4 3/4"

- 1/2 inch NC

4шт.

8

525330R2

CLAMP

BLOCK - clamping

2шт.

9

1973303C1

PLATE

- clamping

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

21

518286R1

SUPPORT ASSY.

STANDARD - sweep, long

2шт.

22

5105BB

NUT

- spring

2шт.

23

15282BA

SPRING

- compression

2шт.

24

27018B

ROD

- spring

2шт.

25

1694BA

BRACKET

- spring

2шт.

26

45-728

RIVET,But Hd, 7/16" x 1 3/4"

- button head, 7/16 x 1-3/4 inch

4шт.

27

27326BA

SPACER

BUSHING - spring rod

2шт.

29

1695BA

YOKE

- adjusting

2шт.

30

IH104201

RIVET,Csk, 3/8" x 1 1/2"

- flat head, 3/8 x 1-1/2 inch

2шт.

31

46-724

RIVET,Csk, 7/16" x 1 1/2"

- flat head, 7/16 x 1-1/2 inch

2шт.

33

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

ASSEMBLY - adjusting

2шт.

34

121592

SLOTTED NUT,1/2"-13, G5

NUT - hex slotted, 1/2 inch NC

1шт.

35

25710R1

WASHER

- flat, hardened

1шт.

36

648002

KNIFE

1/8" x 3/4"

1шт.

37

27017B

PIVOT

TRUNNION - adjusting yoke

2шт.

38

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch'

4шт.

39

27016BA

STRIP

STRAP -, Serial Range: shank-yoke

4шт.

40

25846R1

WASHER

- flat, hardened

4шт.

43

135203

RIVET,Csk, 7/16" x 3/4"

- flat head, 7/16 x 3.4 inch

4шт.

44

30811B

SHANK

- slotted

2шт.

45

30813B

RIVET

- special

2шт.

46

479007R2

SWEEP

- 10 inch, full

2шт.

47

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - sweep, special

4шт.

48

490648R1

CLIP

- sweep bolt

2шт.

49

129-104

NUT,7/16"-14, G5

4шт.
