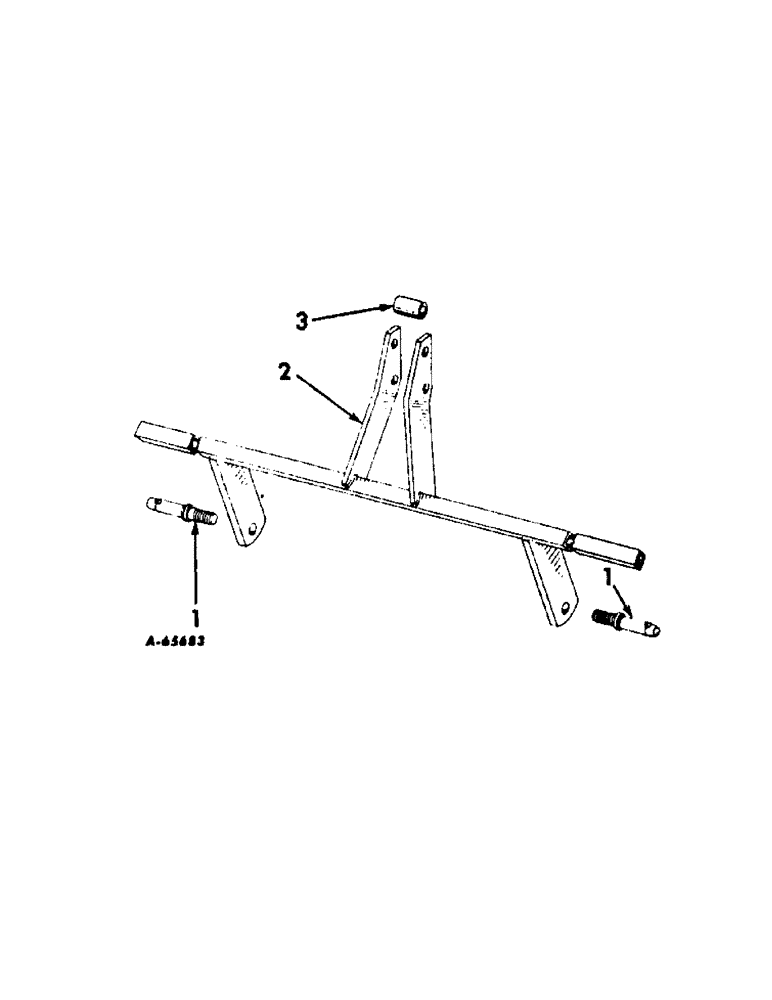

Запчасти Case IH 263 (Q-02) - MAIN FRAME AND MAIN TOOL BAR

1

525896R1

STUD

lower link

2шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

2

466580R91

FRAME ASSY, main

1шт.

18173R1

BOLT

3/4 x 3-3/4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

462425R1

SPACER

mast

1шт.

18841

FITTING

BOLT, 3/4 x 4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
