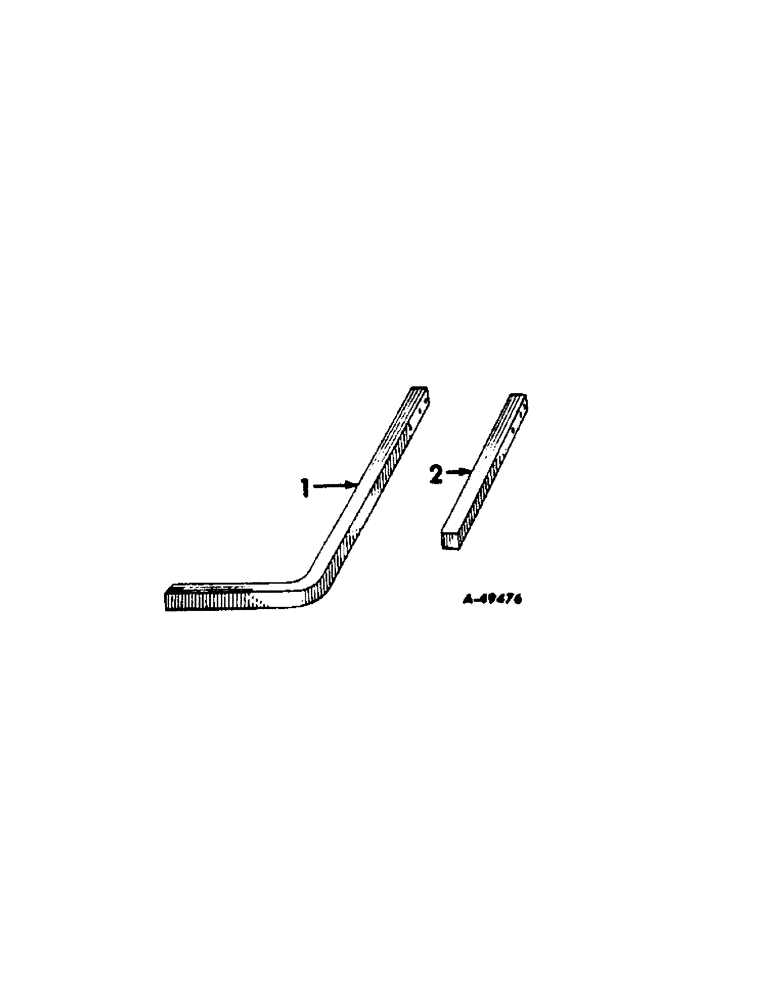

Запчасти Case IH 263 (Q-02[C]) - SQUARE TOOL BAR

1

525896R1

STUD

lower link

2шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

1шт.

131047

WASHER,7/8"

7/8"

1шт.

2

466580R91

FRAME ASSY, main

1шт.

18173R1

BOLT

3/4 x 3-3/4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

462425R1

SPACER

mast

1шт.

18841

FITTING

BOLT, 3/4 x 4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

1

469912R91

TOOL BAR, main, 3-1/4 in. sq. 126 in. long, four-row cultivator, narrow spacing

1шт.

1

524058R91

TOOL BAR, main, 3-1/4 in. sq. 156 in. long, four-row cultivator, wide spacing

1шт.

1

463440R92

TOOL BAR, main, 3-1/4 in. sq 190 in. long, four-row cultivator, wide row

1шт.

1

525093R91

TOOL BAR, main, 3-1/4 in. sq. 72 in. long, two-row cultivator, used 1958

1шт.

1

526466R91

TOOL BAR, main, 2-1/2 in. sq. 72 in. long, two-row cultivator, used 1959

1шт.

1

523653R3

TOOL BAR, 1.66 in. OD, pipe, 36 in. long, 5 holes

1шт.

1

524337R2

TOOL BAR, 1.66 in. OD, pipe, 40-1/4 in. long

1шт.

2

522646R3

PIPE

TOOL BAR, 1.66 in. OD, pipe, 25-1/2 in. long, 5 holes

1шт.

2

524338R2

TOOL BAR, 1.66 in. OD, pipe, 29-3/4 in. long

1шт.

1

523380R1

TOOL BAR, 1-3/8 in. sq. overall lgth. 33-1/2 in.

1шт.

1

524334R1

TOOL BAR, 1-3/8 in. sq. overall lgth 50-3/16 in.

1шт.

2

522566R1

TOOL BAR, 1-3/8 in. sq, 25-1/2 in. long

1шт.

2

524335R1

TOOL BAR, 1-3/8 in. sq, 29-3/4 in. long

1шт.
