Запчасти Case IH 263 (Q-09[A]) - DISK HILLER 13 IN.

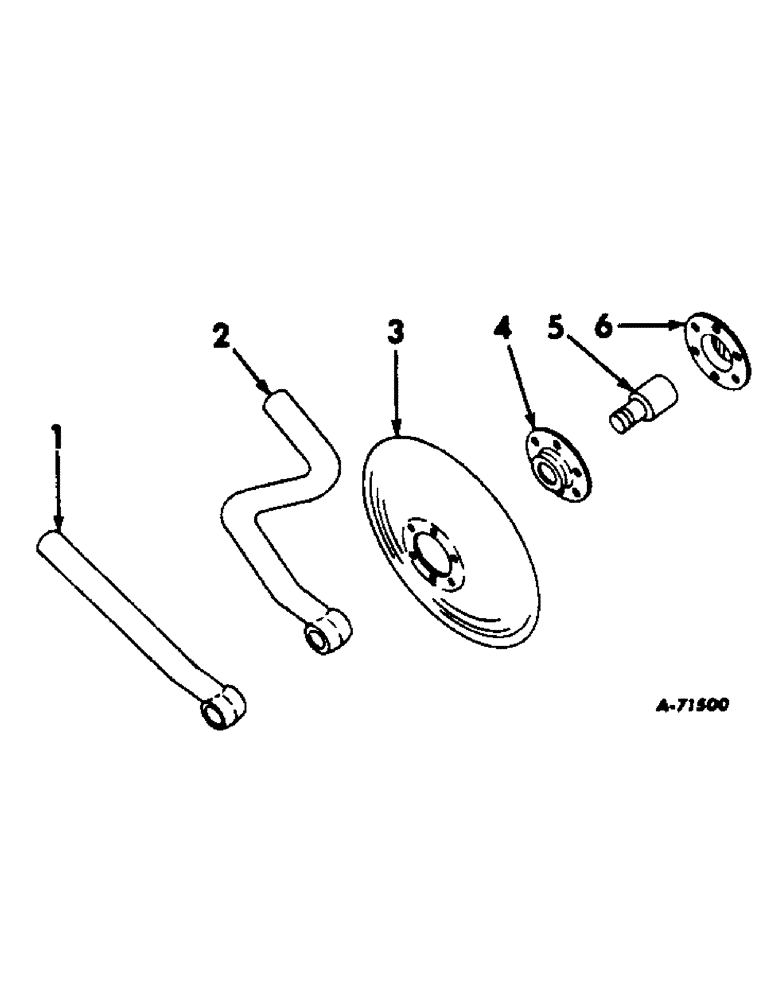

Схема запчастей Case IH 263 - (Q-09[A]) - DISK HILLER 13 IN.
6
5
1
4
3
2

Артикул

Название

Примечание

Количество

1

469373R1

SUPPORT ASSY.

STANDARD, straight

1шт.

138711

SCREW, 3/8 x 7/16 in. hex-soc-hd ov-pt set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset

1шт.

138711

SCREW, 3/8 x 7/16 in. hex soc hd ov-pt set

1шт.

3

469372R1

DISC,13"

DISK, 13 in.

1шт.

120376

NUT,5/16"-18, G5

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 in. C-Z pltd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

468009R1

RETAINER

HOUSING, bearing, open half

1шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half

1шт.

Выбрано товаров: 11
