Запчасти Case IH 263 (Q-08[A]) - DISK HILLER

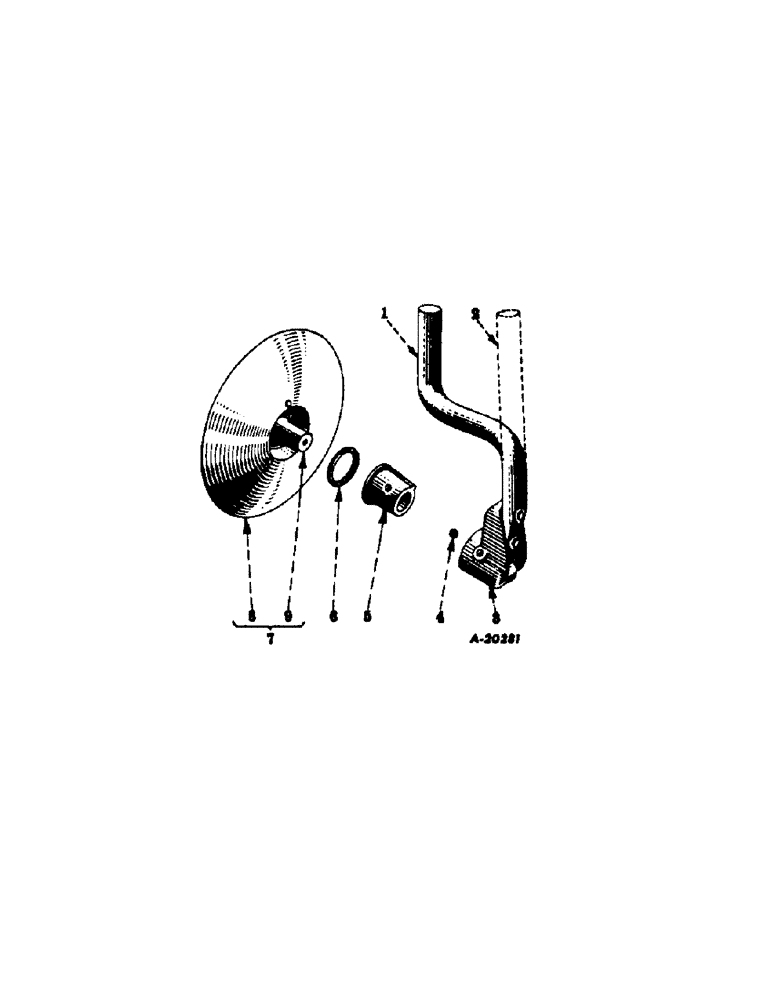

Схема запчастей Case IH 263 - (Q-08[A]) - DISK HILLER
5
6
7
2
8
9
1
4
8

Артикул

Название

Примечание

Количество

1

29238B

STANDARD, 6-1/2 in. offset, 1-1/4 in. dia

1шт.

2

29514B

STANDARD, 1-1/4 in. dia

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 in. rd-hd

2шт.

3

1438BX

BRACKET W/SET SCREW, standard

1шт.

19888R1

SCREW, 7/16 x 1 in. C-Z cup-pt sq-hd set

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

5

1436BA

SLEEVE CYLINDER

SLEEVE

1шт.

15166R1

BOLT, 3/8 x 3-3/8 in. crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

557267R1

WASHER

15/32 x 1-3/4 in. x 11 ga

1шт.

6

M1

WASHER

felt

1шт.

7

25458BB

HUB CAP

DISK W/HUB

1шт.

8

29955B

DISC

DISK, 13 in. dia

1шт.

9

1894BA

HUB CAP

HUB, disk

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 in. truss-hd

6шт.

Выбрано товаров: 16
