(Q-07) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY I HITCH TO 3-POINT CATEGORY II HITCH

Запчасти Case IH 263 (Q-07) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY I HITCH TO 3-POINT CATEGORY II HITCH

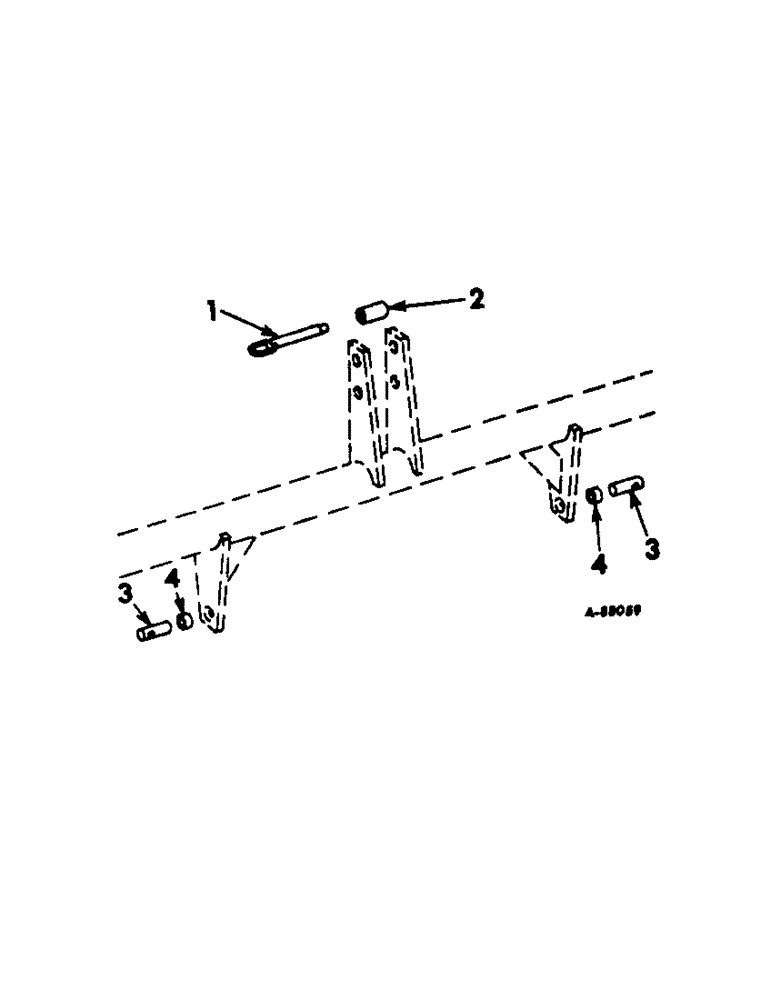

Схема запчастей Case IH 263 - (Q-07) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY I HITCH TO 3-POINT CATEGORY II HITCH
2
1
4
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

380580R91

PIN

upper link implement

1шт.

2

380581R1

BUSHING

upper link category I short

1шт.

2

380582R1

BUSHING

upper link category I long

1шт.

3

380583R1

BUSHING

lower link category I short

2шт.

3

380584R1

BUSHING

lower link category I long

2шт.

4

11484R

BUSHING

SPACER, lower link long bushing

2шт.
