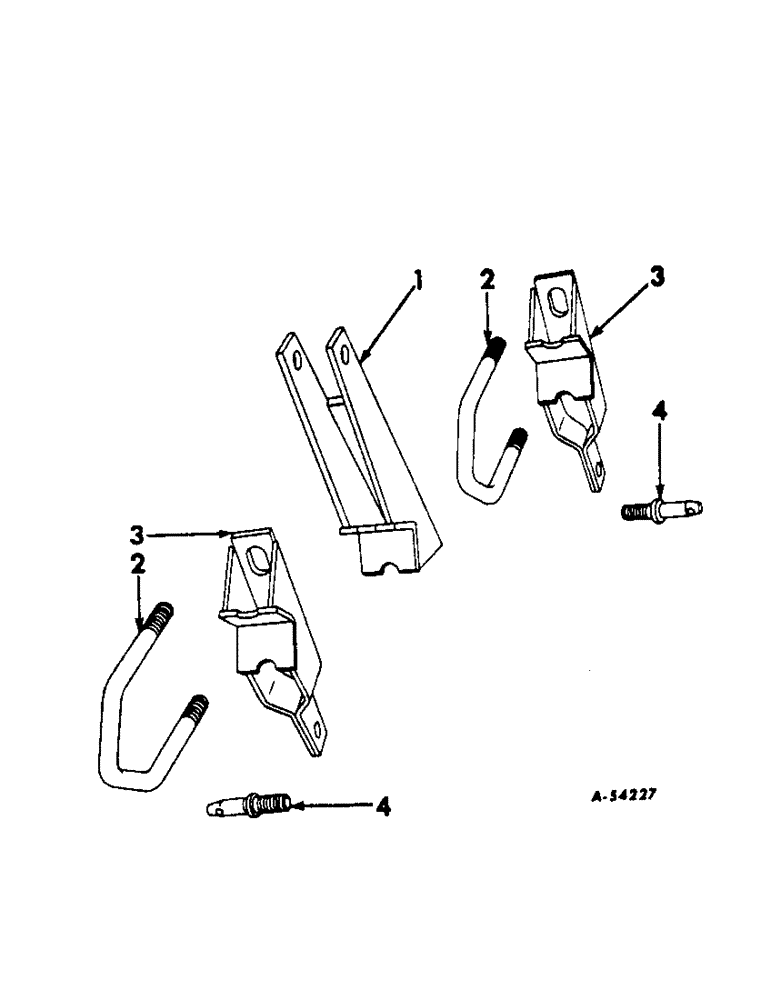

Запчасти Case IH 263 (Q-07[A]) - THREE-POINT HITCH

1

525906R91

BRACKET, upper pivot

1шт.

280954

NUT,3/4"-10, G5

2шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 in. heat-treated headed

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

3/4 x 10 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

526048R11

U-BOLT W/NUTS, lower pivot bracket, for 2-1/2 in. sq. tool bar

1шт.

2

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

U-BOLT, lower pivot bracket, for 3-1/4 in. sq tool bar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

PO12898

WASHER

29/32 x 1-1/2 in. x 11 ga

2шт.

3

525907R91

BRACKET, lower pivot

1шт.

4

525896R1

STUD

lower

1шт.

426767

NUT,7/8"-14, G5

7/8-NF type 5

1шт.

131047

WASHER,7/8"

7/8"

1шт.
