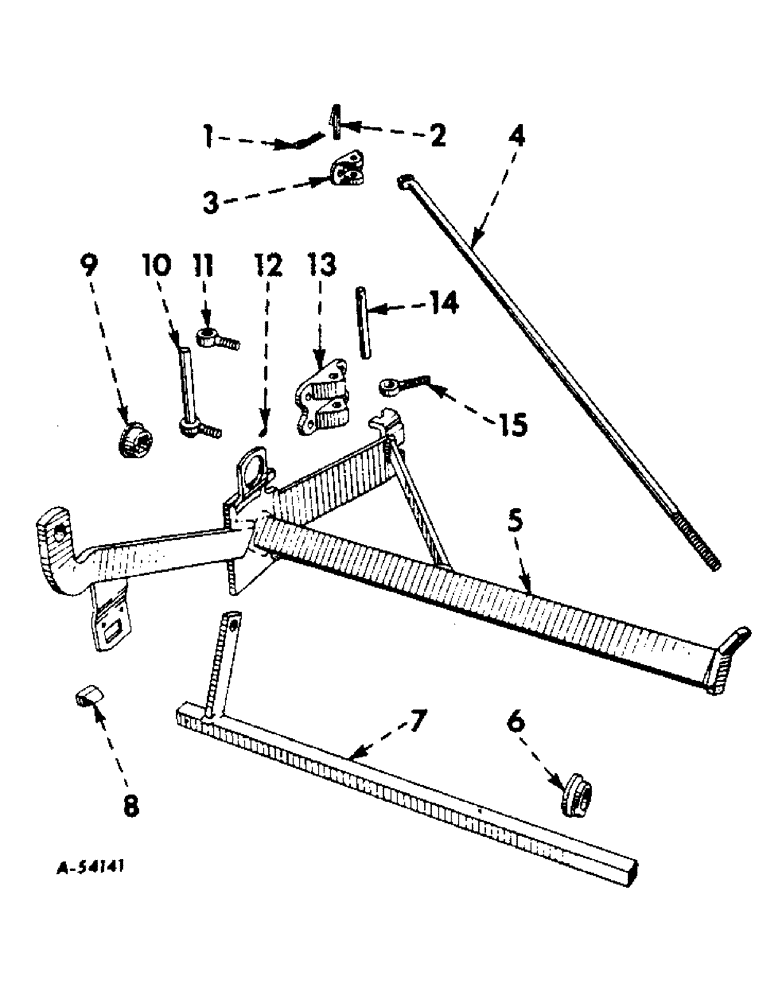

Запчасти Case IH 261 (P-03) - FRAME AND ROCKSHAFT

1

520175R1

CLIP

PIN, quick attachable cotter

1шт.

2

525649R11

PIN, upper truss rod attaching

1шт.

3

525645R1

BRACKET

truss rod

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

4

525711R1

ROD, truss

1шт.

218443

NUT

3/4 in. jam

2шт.

5

525733R91

FRAME, left main

1шт.

5

525734R91

FRAME, right main

1шт.

6

522496R1

BUSHING

BEARING, rockshaft outer

1шт.

7

525725R91

ROCKSHAFT, left lifting

1шт.

7

525726R91

ROCKSHAFT, right lifting

1шт.

8

518876R1

BLOCK

STUD, frame plate guide

1шт.

17421R1

BOLT (SPREADER)

BOLT, 7/16 x 7/8 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5028

WASHER

15/32 x 1 in. x 11 ga

1шт.

9

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner

1шт.

NLS

NO LONGER SERVICED

Split (Cotter), 1/4" x 2 3/4"

1шт.

Q3493

WASHER, 29/32 x 3 in. x 14 ga

1шт.

10

525648R1

PIN, frame attaching eyebolt

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

525646R1

EYEBOLT, frame attaching

1шт.

220081

NUT

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

12

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive base lubrication

1шт.

13

525644R1

BRACKET, hinge

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

4шт.

14

518267R2

PIN, frame hinge, heat-treated

1шт.

15

518952R1

BOLT

EYEBOLT, frame hinge

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.
