Запчасти Case IH 261 (P-02) - MAIN FRAME AND ROCKSHAFT

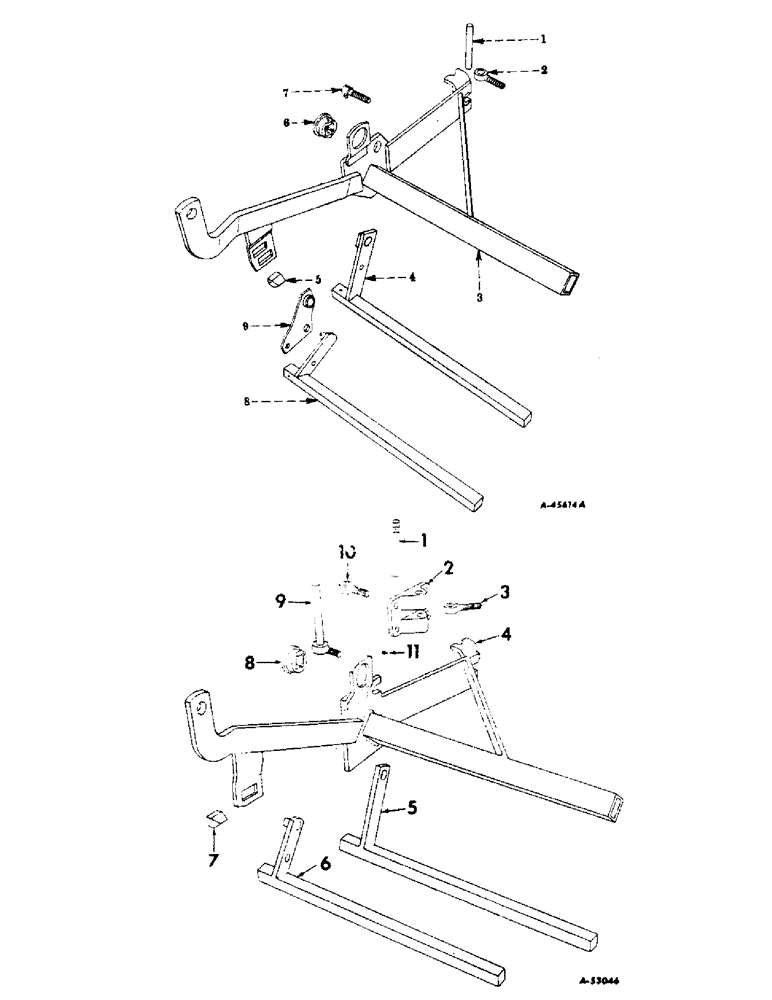

Схема запчастей Case IH 261 - (P-02) - MAIN FRAME AND ROCKSHAFT
9
3
1
4
9
2
5
2
8
8
11
10
7
7
6
3
6
1
5
4

Артикул

Название

Примечание

Количество

1

518267R2

PIN, frame hinge

1шт.

2

518952R1

BOLT

EYE, frame hinge

1шт.

220081

NUT

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

3

522549R91

FRAME, main left

1шт.

3

522550R91

FRAME, main right

1шт.

4

522545R91

ROCKSHAFT, lifting left, 1956

1шт.

4

522546R91

ROCKSHAFT, lifting right 1956

1шт.

5

518876R1

BLOCK

STUD, frame guide

1шт.

17421R1

BOLT (SPREADER)

BOLT, 7/16 x 7/8 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5028

WASHER

15/32 x 1 in. x 11 ga.

1шт.

6

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner

1шт.

NLS

NO LONGER SERVICED

Split (Cotter), 1/4" x 2 3/4"

1шт.

Q3493

WASHER, 2-9/32 x 3 in. x 14 ga.

1шт.

7

515097R2

BOLT,3/4" - 10 x 3 5/16"

frame hook

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

8

523533R91

ROCKSHAFT, lifting left, 1957 and since

1шт.

8

523534R91

ROCKSHAFT, lifting right, 1957 and since

1шт.

9

523543R11

BRACKET, left cylinder attaching, 1957 and 1958

1шт.

9

523544R11

BRACKET, right cylinder attaching, 1957 and 1958

1шт.

17475R1

BOLT, 5/8 x 1-1/2 in. mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

1

518267R2

PIN, frame hing, heat-treated

1шт.

2

525644R1

BRACKET, hinge

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

4шт.

3

518952R1

BOLT

EYEBOLT, frame hinge

1шт.

280954

NUT,3/4"-10, G5

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

4

525661R91

FRAME, main left

1шт.

4

525660R91

FRAME, main right

1шт.

5

525673R91

ROCKSHAFT, lifting left

1шт.

5

525674R91

ROCKSHAFT, lifting right

1шт.

6

523533R91

ROCKSHAFT, lifting left

1шт.

6

523534R91

ROCKSHAFT, lifting right

1шт.

7

518876R1

BLOCK

STUD, frame plate guide

1шт.

17421R1

BOLT (SPREADER)

BOLT, 7/16 x 7/8 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

8

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner

1шт.

103425

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

518814R1

WASHER

2-9/32 x 3 in. x 11 ga

1шт.

9

525648R1

PIN, frame attaching eyebolt

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

10

525646R1

EYEBOLT, frame attaching

1шт.

280954

NUT,3/4"-10, G5

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

11

110161

FITTING, 3/16 in. drive type straight lubrication

1шт.

Выбрано товаров: 48
