Запчасти Case IH 261 (P-25) - STABILIZER ROD AND BRACKET

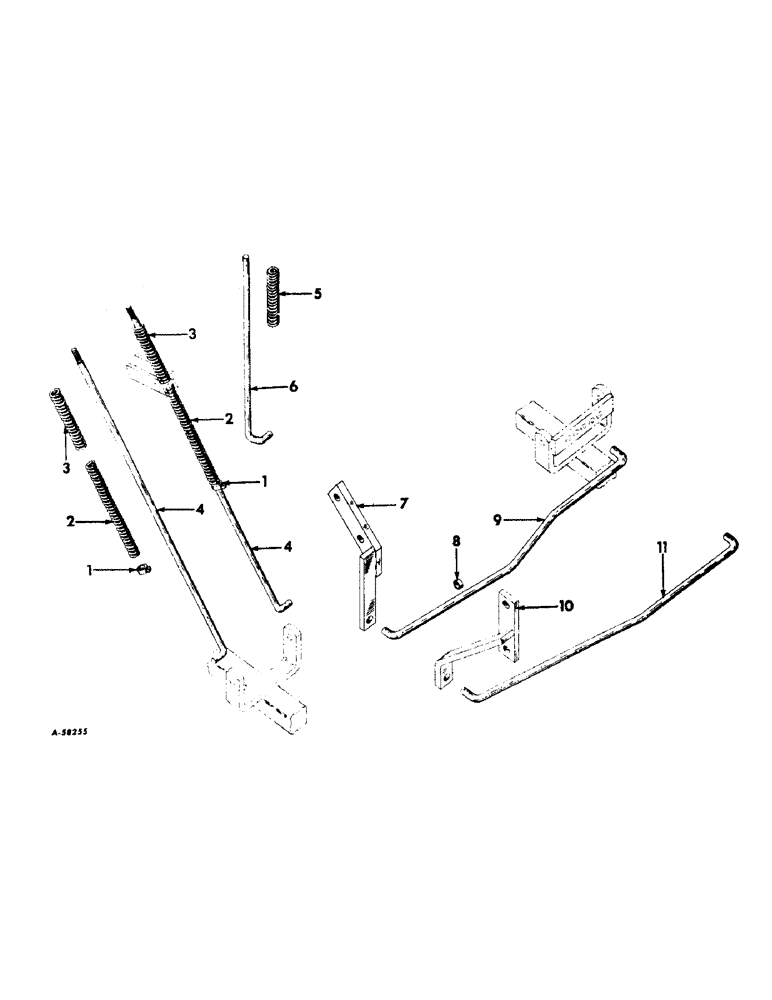

Схема запчастей Case IH 261 - (P-25) - STABILIZER ROD AND BRACKET
3
8
4
2
4
5
1
3
2
7
1
6
10
9
11

Артикул

Название

Примечание

Количество

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

2

PO102

SPRING

1шт.

3

PO23

SPRING

lift rod pressure

1шт.

4

461712R2

ROD, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

615120R1

WASHER

19/32 x 1-1/4 in. x 16 ga

1шт.

5

PO3A

SPRING

see note A

1шт.

6

523052R1

ROD

left, see note A

1шт.

7

461713R11

BRACKET ASSEMBLY, stabilizer, see notes A and B

1шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4 x 1-1/4 in. mach, for Farmall 340 tractors

2шт.

18821R1

BOLT

5/8 x 1-1/4 in. mach, for Farmall 240 tractors

2шт.

8

516678R1

BUSHING, see note A

1шт.

9

461715R1

ROD, stabilizer, see note A

1шт.

10

461709R11

BRACKET ASSEMBLY, stabilizer

1шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4 x 1-1/4 in. mach, for Farmall 340 tractors

2шт.

11

461711R1

ROD, stabilizer

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Выбрано товаров: 19
