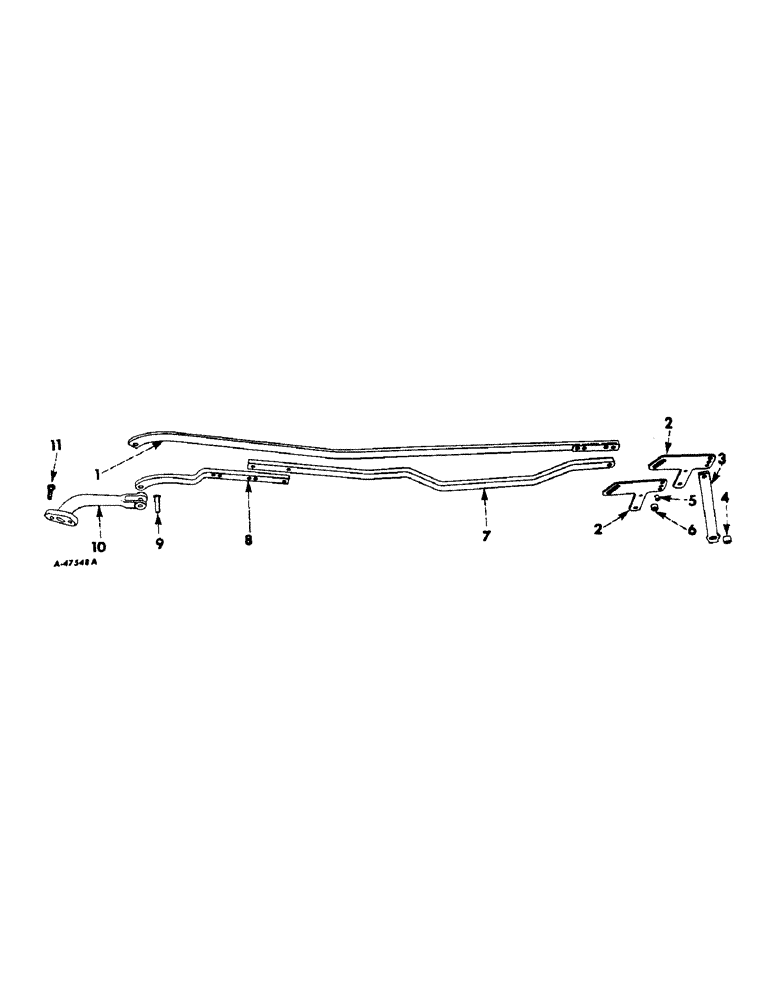

Запчасти Case IH 261 (P-23) - SELECTIVE LIFT AND SIMULTANEOUS LIFT LINKS

1

523904R92

LINK, rear lift

1шт.

2

523907R91

BELLCRANK

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 type 1

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

518927R1

PIN, 5/8 x 2-3/16 pt-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

551177R1

WASHER

.656 x 1.250 x .054 pln

1шт.

3

523902R1

LINK, front pick-up

1шт.

4

523908R1

BUSHING, rockshaft pin

1шт.

5

523909R1

SPACER, bellcrank

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

523894R1

BUSHING, bellcrank pivot

1шт.

7

523895R2

LINK, left rear lift

1шт.

7

523896R2

LINK, right rear lift

1шт.

8

523897R1

EXTENSION, left rear lift link

1шт.

8

523898R1

EXTENSION, right rear lift link

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

523910R1

PIN, 3/4 x 2-3/8 in. special dld-hd

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

615264R1

WASHER

1-7/32 x 1-3/4 in. x 16 ga

1шт.

10

523891R1

ARM, rear rockshaft left, order 464626R1 and two 570879R1

1шт.

10

464626R1

ARM, rear rockshaft left

1шт.

10

523892R1

ARM, rear rockshaft right, order 464627R1 and two 570879R1

1шт.

10

464627R1

ARM, rear rockshaft right

1шт.

11

523911R1

SCREW, cap conical hd 5/8 x 1-3/4 in., for use with 523891R1 and 523892R1

1шт.

11

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SPRING, cap special 5/8 x 2-1/4 in.

2шт.
