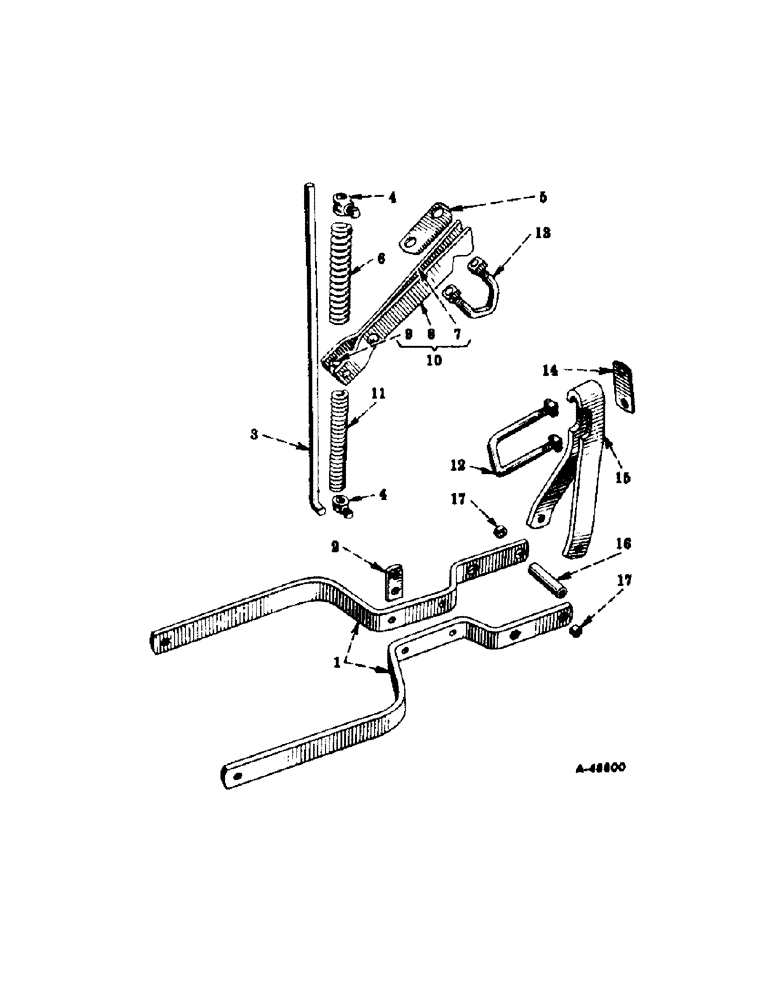

Запчасти Case IH 261 (P-19) - ROTARY WEEDER FRAME

1

516444R1

RAIL, frame

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2 x 1-3/4 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

2

516445R1

CLIP, lift rod

1шт.

17523R1

BOLT, 1/2 x 2 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

3

29201B

ROD, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

5

30739B

CLIP, left arm u-bolt

1шт.

6

PO102

SPRING

cushion, 1-1/4 in. OD, 6-1/8 in long, 16 coils

1шт.

7

PO27517B

ARM, left lift, order PO27529B

1шт.

8

PO27516B

ARM, right lift, order PO27529B

1шт.

9

837B

SWIVEL, lift arm

1шт.

10

PO27529B

ARM, lift-riveted assembly

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 in. rd-hd

1шт.

11

308X

SPRING, pressure, 1.113 in. OD, 7-7/8 in,. long, 23 coils

1шт.

12

511150R1

U-BOLT, hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

13

30740BX

U-BOLT W/NUTS, lift arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

14

511153R1

CLIP, hitch bracket u-bolt

1шт.

15

516443R1

BRACKET, hitch

1шт.

17938R1

BOLT, 5/8 x 7-1/4 in. mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

575810R1

WASHER

21/32 x 1-1/2 in. x 11 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

16

511159R1

SPACER, hitch bracket, 3/4 x 4 in. pipe

1шт.

17

511160R1

BUSHING, frame rail, 1/2 x 17/32 in. pipe

1шт.
