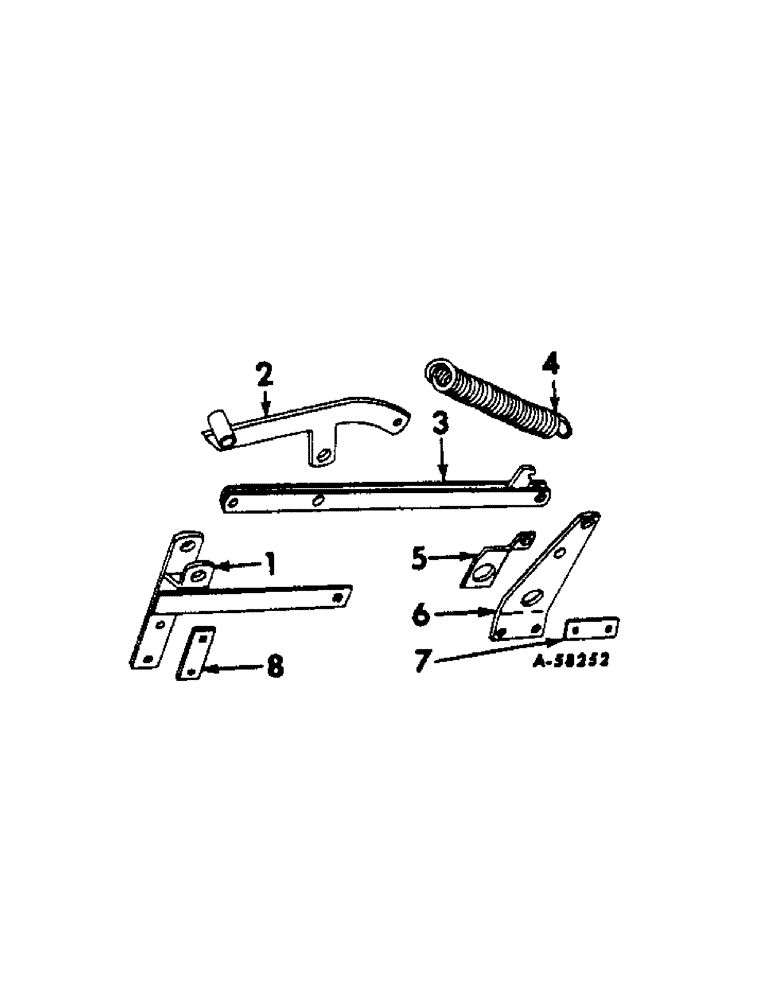

Запчасти Case IH 261 (P-18[A]) - CYLINDER RETURN

1

461739R91

ANCHOR, stabilizer pivot

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

515116R91

BELLCRANK

1шт.

513540R1

PIN, 5/8 x 2-7/8 in. dld/std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

515112R91

LINK, bellcrank connecting

1шт.

SE235

HEADED PIN,3/8" x 1 1/8"

PIN, 3/8 x 1-1/8 in. dld-std-hd

1шт.

Q619

AXLE PIN,5/8" x 1 1/8"

PIN, 5/8 x 1-1/8 in. dld-std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

PO27

SPRING

1шт.

5

461744R1

STRAP, hammer

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

461743R1

EXTENSION, rockshaft arm

1шт.

7

461746R1

CLIP, rockshaft extension

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4 crg type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

461745R1

CLIP, pivot holddown

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
