Запчасти Case IH 261 (P-12) - BALL BEARING GAUGE WHEEL

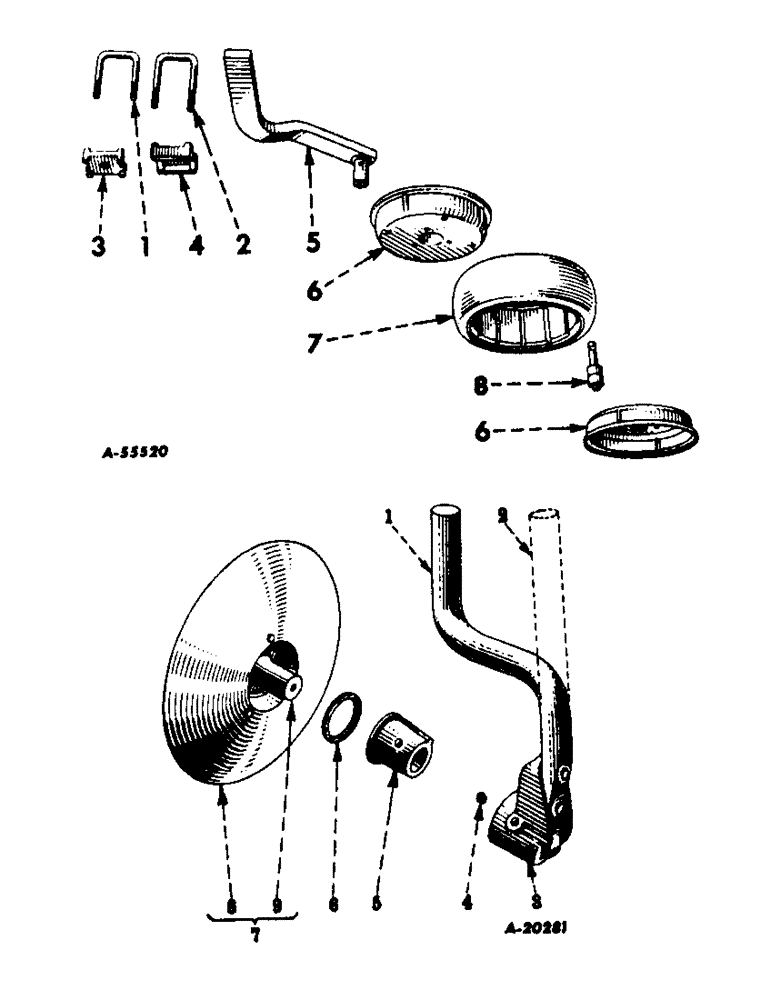

Схема запчастей Case IH 261 - (P-12) - BALL BEARING GAUGE WHEEL
4
8
7
6
5
2
4
3
5
1
3
1
9
6
8
9
6
7

Артикул

Название

Примечание

Количество

1

522572R1

BOLT

U-BOLT, standard, for sq tool bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

2

522647R1

BOLT,U, 1/2" - 13 x 3 5/8"

U-BOLT, standard, for pipe tool bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

3

522571R1

BLOCK

standard clamp, for sq tool bars

1шт.

4

522635R1

CLAMP

BLOCK, standard clamp left, for pipe tool bar

1шт.

4

522636R1

CLAMP

BLOCK, standard clamp right, for pipe tool bar

1шт.

5

483274R91

SUPPORT ASSY.

STANDARD ASSY, gauge wheel

1шт.

5

526766R11

SUPPORT ASSY.

STANDARD W/SLEEVE, left

1шт.

5

526767R11

SUPPORT ASSY.

STANDARD W/SLEEVE, right

1шт.

222502

SCREW

3/8 x 3/8 in. hex socket flat pt set

2шт.

6

526768R1

WHEEL

RIM, gauge wheel

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 in. C-Z pltd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

516492R1

TYRE/TIRE

TIRE, zero pressure, 4.00 x 12 in.

1шт.

8

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSEMBLY, double row ball

1шт.

1

29238B

STANDARD, 6-1/2 in. offset, 1-1/4 in. dia

1шт.

2

29514B

STANDARD, straight, 1-1/4 in. dia

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 in. rd-hd

2шт.

3

1438BX

BRACKET W/SET SCREW, standard

1шт.

19888R1

SCREW, 7/16 x 1 in. C-Z cup-pt sq-hd set

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

5

1436BA

SLEEVE CYLINDER

SLEEVE

1шт.

15166R1

BOLT, 3/8 x 3-3/8 in. crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

557267R1

WASHER

15/32 x 1-3/4 in. x 11 ga

1шт.

6

M1

WASHER

felt

1шт.

7

25458BB

HUB CAP

DISK, W/HUB

1шт.

8

29955B

DISC

DISK, 13 in. dia

1шт.

9

1894BA

HUB CAP

HUB, disk

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 in. truss-hd

6шт.

Выбрано товаров: 33
