Запчасти Case IH 261 (P-10) - ROUND TOOL BAR AND ATTACHING CLAMP

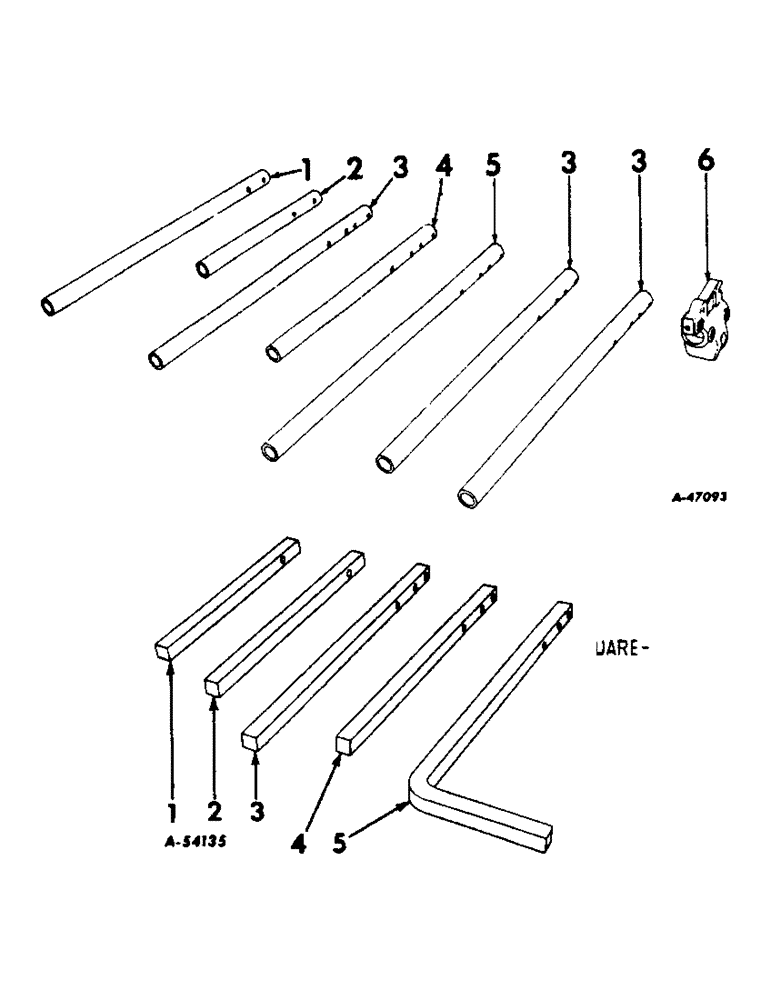

Схема запчастей Case IH 261 - (P-10) - ROUND TOOL BAR AND ATTACHING CLAMP
2
4
6
4
1
3
5
1
3
3
2
3
5

Артикул

Название

Примечание

Количество

1

522643R3

PIPE, right gang, 1.66 in. OD, 32 in. long

1шт.

2

522644R4

PIPE, left gang, 1.66 in. OD, 21-1/8 in. long

1шт.

3

522645R3

PIPE, gang, 1.66 in. OD, 32 in. long

1шт.

4

522646R3

PIPE

gang, 1.66 in. OD, 25-1/2 in. long

1шт.

5

523653R3

PIPE, gang, 1.66 in. OD, 36 in. long

1шт.

6

522641R1

CLAMP

tool bar attaching

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 in. C-Z mach

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 in. C-Z mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

112980

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 in. cup-pt sq-hd set

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1

462972R2

TOOL BAR, 1-3/8 in. sq, 36-1/2 in. long

1шт.

1

522564R3

TOOL BAR, 1-3/8 in. sq, 21-1/8 in. long

1шт.

2

522562R1

TOOL BAR, 1-3/8 in. sq, 28-1/2 in. long

1шт.

2

525816R1

TOOL BAR, 1-3/8 in. sq, 23-7/8 in. long

1шт.

3

525817R1

TOOL BAR, 1-3/8 in. sq, 29 in. long

1шт.

4

522566R1

TOOL BAR, 1-3/8 in. sq, 25-1/2 in. long

1шт.

5

523062R1

TOOL BAR, 1-3/8 in. sq, approx 40 in. long overall

1шт.

Выбрано товаров: 18
