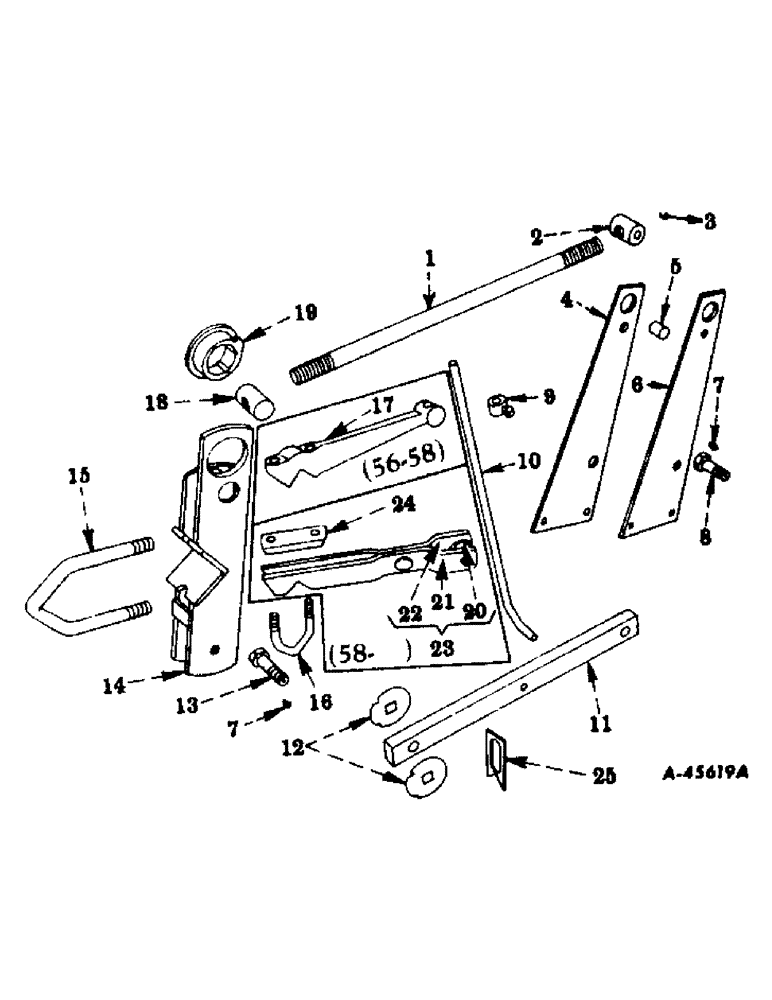

Запчасти Case IH 261 (P-07) - FOURTH GANG PARALLEL LINKAGE

1

522506R2

TURNBUCKLE

ROD, upper parallel

1шт.

2

52251R1

SWIVEL, upper parallel link rear, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

3

522591R1

PLUG

CUSHION, upper parallel link locking bushing fibre

1шт.

4

522520R1

PLATE, tool bar outer attaching, tapped

1шт.

5

522537R1

SPACER

tool bar attaching plate

1шт.

6

522521R1

PLATE, tool bar outer attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, straight 1/4 in. lubrication, Lower parallel link pivot bolt

1шт.

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

10

522503R1

ROD, lift

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

523061R1

WASHER

21/32 x 1-3/8 in. x 11 ga case-hardened

1шт.

11

522523R1

LINK, lower parallel outer

1шт.

12

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

BRACKET, left and right head, also rockshaft support, discontinued for service

1шт.

15

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

16

522508R2

U-BOLT, lift arm, for 1-1/4 in. sq rockshaft

1шт.

16

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm, for 1-3/8 in. sq rockshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

ARM, long lift, (56), discontinued for service

58шт.

18

522509R1

BAR

SWIVEL, upper parallel link front, LH thd

1шт.

19

523328R1

BEARING ASSY,2.8125" OD x 1"

rockshaft outer, for 1-3/8 in. sq rockshaft

1шт.

19

522496R1

BUSHING

BEARING, rockshaft outer, for 1-1/4 in. sq rockshaft

1шт.

20

468022R1

TRUNNION

lift arm

1шт.

21

ARM, left long lift, (58), order 525666R91

1шт.

22

ARM, right long lift, (58), order 525666R91

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 in. rd-hd

1шт.

23

525666R91

ARM ASSEMBLY, long lift

1шт.

24

CLIP, lift arm, discontinued for service

1шт.

25

525670R2

BAR

LOCK, frame

58шт.
