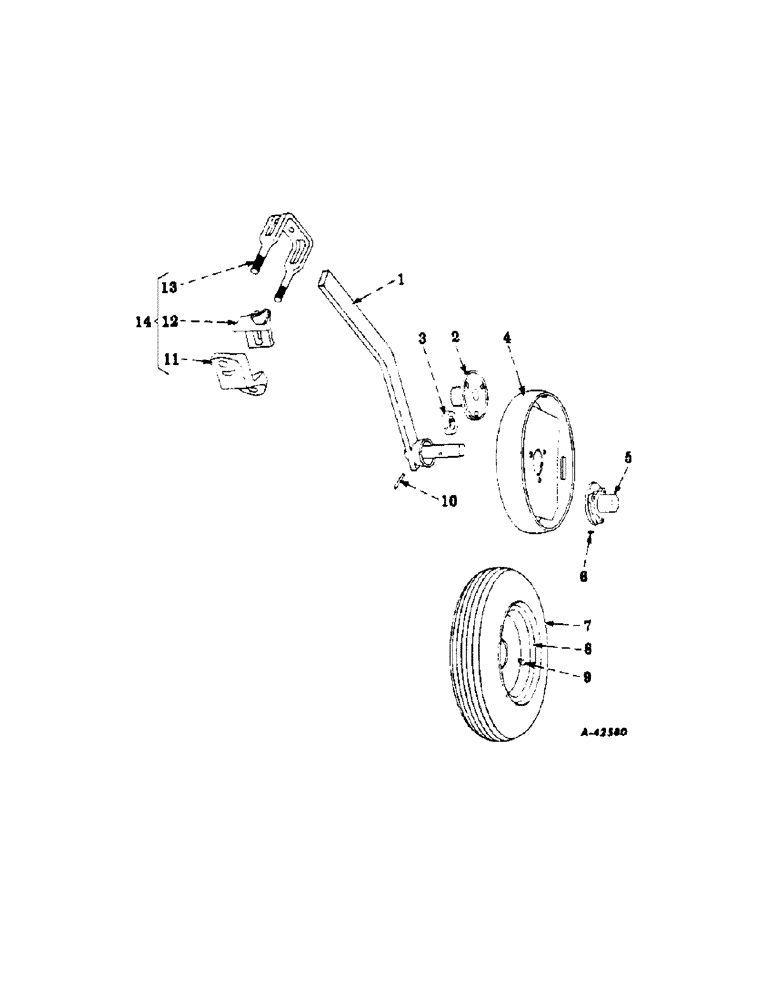

Запчасти Case IH 259 (N-4) - GAUGE WHEELS, PNEUMATIC TIRE AND STEEL WHEEL

1

522057R91

STANDARD, left

1шт.

1

522058R91

STANDARD, right

1шт.

2

PO2774

BOX, inside wheel

1шт.

15091R1

BOLT, 1/2 x 2-1/4 in. sq-nk crg

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

PO2933

COLLAR, thrust

1шт.

4

PO24429A

WHEEL, steel

1шт.

5

PO2773

BOX, outside wheel

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

7

TIRE, 4-ply ribbed implement pneumatic, 4.00 x 9 in.

1шт.

8

B32992

DISK W/VALVE HOLE, wheel

1шт.

8

B32968

DISK, wheel, less valve hole

1шт.

9

TUBE, pneumatic tire, 4.00 x 9 in.

1шт.

10

PO25932

PIN, thrust collar

1шт.

11

520777R1

CLAMP

CAP, standard u-bolt

1шт.

12

PO2988A

BLOCK, standard clamp

1шт.

13

PO26799A

U-BOLT

1шт.

280954

NUT,3/4"-10, G5

2шт.

14

PO26939A

CLAMP ASSEMBLY, standard

1шт.
