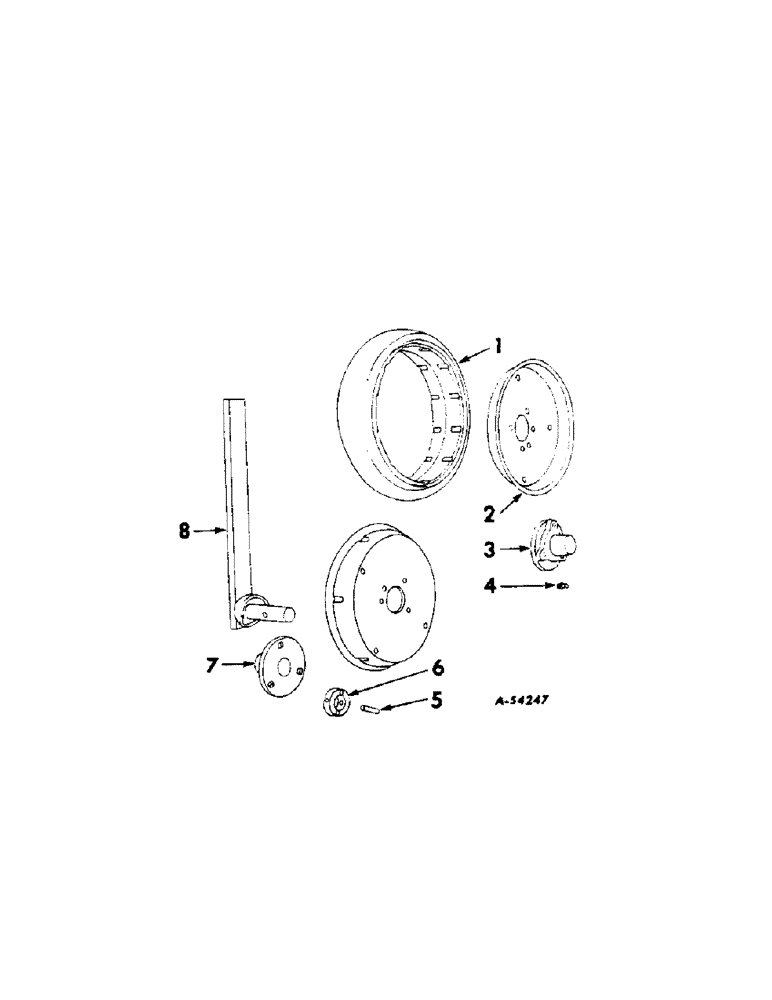

Запчасти Case IH 259 (N-4[A]) - GAUGE WHEEL WITH ZERO-PRESSURE TIRE

1

664072R1

TIRE, zero-pressure, 4.00 x 16 in.

1шт.

2

526165R1

DISK, wheel

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

PO2773

BOX, outside

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

PO25932

PIN, thrust collar

1шт.

6

PO2933

COLLAR, thrust

1шт.

7

PO2774

BOX, inside wheel

1шт.

15091R1

BOLT, 1/2 x 2-1/4 in. sq-nk crg

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

526163R11

STANDARD, wheel

1шт.
