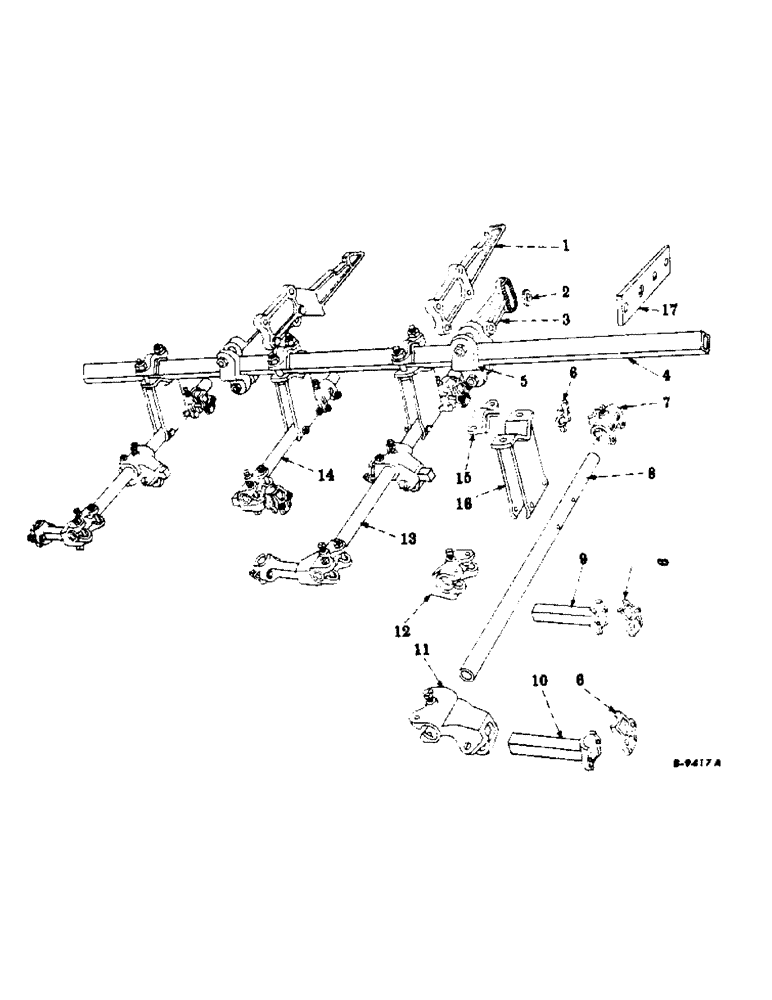

Запчасти Case IH 259 (N-3) - PIPE BEAMS AND CLAMPS

1

523587R1

BEAM, left coupling, for 2-1/2 in. fast hitch sockets (56)

57шт.

1

521085R1

BEAM, left coupling, for 3 in. fast-hitch sockets (56)

57шт.

1

521086R1

BEAM, right coupling, for 2-1/2 in. fast-hitch sockets (56)

57шт.

1

523588R1

BEAM, right coupling, for 3 in. fast-hitch sockets (56)

57шт.

280954

NUT,3/4"-10, G5

2шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

3/4 x 2-3/4 pln type 5

2шт.

271619

CIRCLIP

BOLT, 3/4 x 4 pln type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

521084R2

WASHER

coupling beam serrated

1шт.

280954

NUT,3/4"-10, G5

1шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

3/4 x 3-3/4 pln type 5

1шт.

3

521087R2

BRACKET

coupling beam attaching

1шт.

218200

NUT,7/8"-14, G5

7/8-NF pln type 5

2шт.

NLS

NO LONGER SERVICED

7/8-NF x 4-1/2 type 5

1шт.

271689

WASHER,Hex, 7/8" - 14 x 4 3/4", Gr 5

7/8NF x 4-3/4 pln type 5

1шт.

4

522030R91

TOOL BAR, main, 2-1/4 in. sq, 90 in. long

1шт.

4

519400R1

TOOL BAR, main, 2-1/4 in. sq, 95 in. long

1шт.

5

523962R2

CLAMP

coupling beam

1шт.

6

1779BB

CLAMP

CAP, tool bar extension

1шт.

7

1869BX

CLAMP

W/SET SCREW, standard

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 in. C-Z sq-nk crg

2шт.

29821B

BOLT, 1/2 x 2-1/2 in. sq-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

112980

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 in. cup-pt sq-hd set

1шт.

8

522038R1

PIPE, gang outside, OD 1.66 in.

1шт.

9

28164BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 6-1/2 in. long

1шт.

10

28236BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 7-3/4 in. long

1шт.

29822B

BOLT

1/2 x 2-3/4 in. C-Z heat-treated sq-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

519901R11

CLAMP W/SET SCREW, tool bar extension long offset

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

2шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

112980

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 in. cup-pt sq-hd set

1шт.

12

518963R21

CLAMP W/SET SCREW, tool bar extension short offset

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

2шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

112980

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 in. cup-pt sq-hd set

1шт.

13

522040R1

PIPE, right inside gang, OD 1.66 in.

1шт.

14

522039R1

PIPE, left inside gang, OD 1.66 in.

1шт.

15

518859R1

CLAMP

head bracket

1шт.

18851R1

BOLT,Hex, 7/8"-9 x 3 1/2", G2

7/8 x 3-1/2 type 1

2шт.

16

522037R91

BRACKET, tool bar head

1шт.

18850R1

BOLT

7/8 x 3 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17

523847R1

EXTENSION, coupling beam, for Farmall tractors (56)

57шт.

296846R1

CARRIAGE BOLT,#3, 3/4" - 10 x 2 3/4", Gr 5

BOLT, 3/4 x 2-3/4 pln plow type 5

2шт.

280954

NUT,3/4"-10, G5

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4 x 3-1/4 pln type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.
