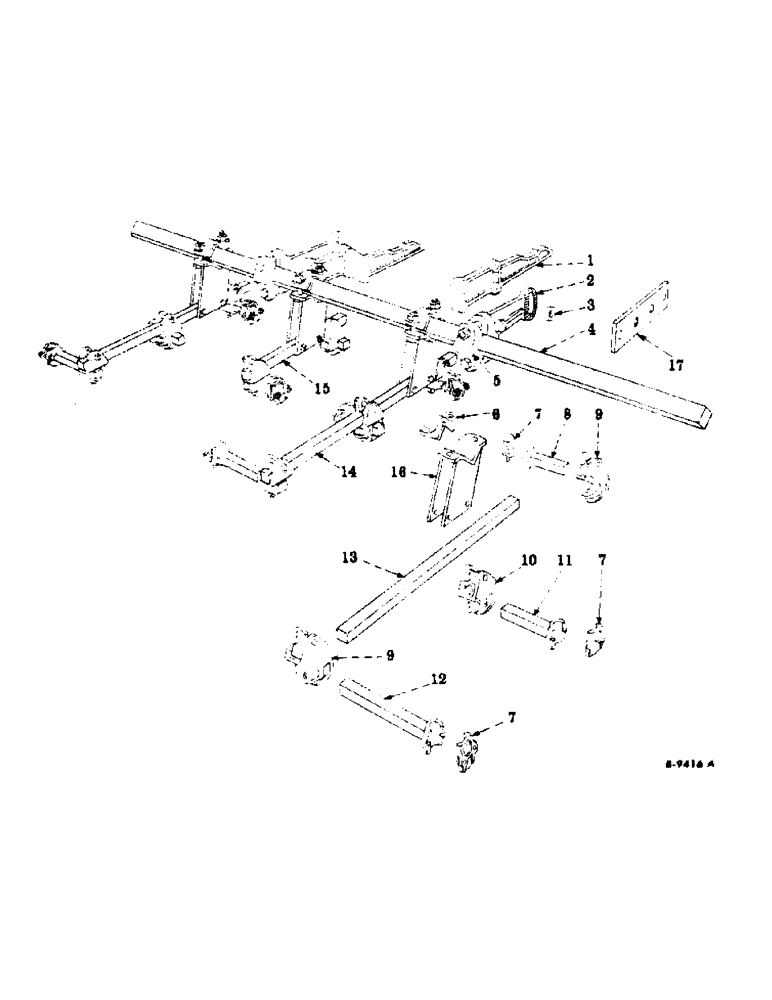

Запчасти Case IH 259 (N-2) - TOOL BAR AND CLAMPS

1

523587R1

BEAM, left coupling, for 2-1/2 in. fast hitch sockets (56)

57шт.

1

521085R1

BEAM, left coupling, for 3 in. fast hitch sockets (56)

57шт.

1

521086R1

BEAM, right coupling, for 3 in. fast-hitch sockets (56)

57шт.

1

523588R1

BEAM, right coupling, for 2-1/2 in. fast-hitch sockets (56)

57шт.

280954

NUT,3/4"-10, G5

2шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

3/4 x 2-3/4 pln type 5

2шт.

271619

CIRCLIP

BOLT, 3/4 x 4 pln type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

521087R2

BRACKET

coupling beam attaching

1шт.

218200

NUT,7/8"-14, G5

7/8-NF pln type 5

2шт.

114-806

BOLT,Hex, 7/8" - 14 x 4-1/2", Gr 5

7/8-NF x 4-1/2 type 5

1шт.

271689

WASHER,Hex, 7/8" - 14 x 4 3/4", Gr 5

7/8NF x 4-3/4 pln type 5

1шт.

3

521084R2

WASHER

coupling beam serrated

1шт.

280954

NUT,3/4"-10, G5

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4 x 3-3/4 pln type 5

1шт.

4

522030R91

TOOL BAR, main 2-1/4 in. sq, 90 in. long

1шт.

4

519400R1

TOOL BAR, main, 2-1/4 in. sq, 95 in. long

1шт.

5

523962R2

CLAMP

coupling beam

1шт.

6

518859R1

CLAMP

head bracket

1шт.

18851R1

BOLT,Hex, 7/8"-9 x 3 1/2", G2

7/8 x 3-1/2 type 1

2шт.

7

1779BB

CLAMP

CAP, tool bar extension

1шт.

8

29148BA

EXTENSION, tool bar, 1-1/4 in. sq, 5-1/2 in. long

1шт.

29821B

BOLT, 1/2 x 2-1/4 in. sq-hd mach (2), mach

2шт.

102637

NUT,1/2"-13, G5

1шт.

9

518956R3

CLAMP

tool bar extension short offset

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

10

518958R2

CLAMP

tool bar extension straight

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

11

28164BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 6-1/2 in. long

1шт.

12

521750R1

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 9-3/4 in. long

1шт.

29821B

BOLT, 1/2 x 2-1/2 in. sq-hd mach (4), mach

4шт.

102378

NUT, 1/2 in. C-Z

1шт.

13

522024R1

TOOL BAR, outside, 1-3/8 in. sq

1шт.

14

522027R1

TOOL BAR, inside right, 1-3/8 in. sq

1шт.

15

522025R1

TOOL BAR, inside left, 1-3/8 in. sq x 19 in. long

1шт.

16

522036R91

BRACKET, tool bar head

1шт.

18851R1

BOLT,Hex, 7/8"-9 x 3 1/2", G2

7/8 x 3-1/2 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 pln type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17

523847R1

EXTENSION, coupling beam, for Farmall tractors (56)

57шт.

296846R1

CARRIAGE BOLT,#3, 3/4" - 10 x 2 3/4", Gr 5

BOLT, 3/4 x 2-3/4 pln plow type 5

2шт.

280954

NUT,3/4"-10, G5

1шт.

271616

SEAL KIT

3/4 x 3-1/4 pln type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.
