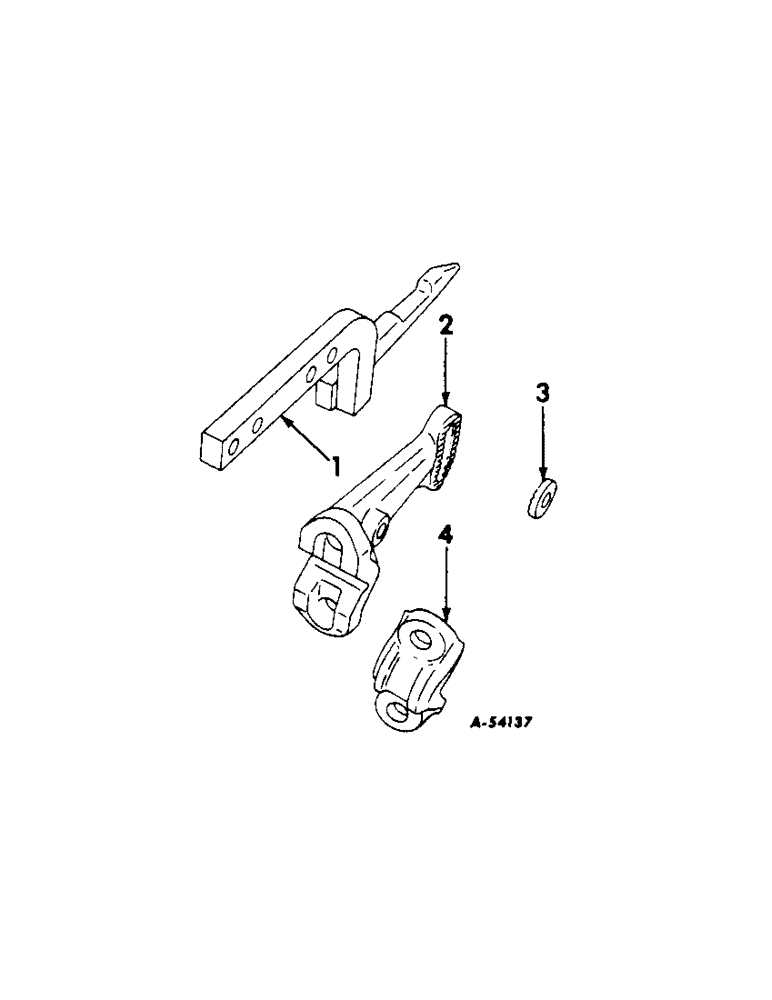

Запчасти Case IH 259 (N-8[B]) - COUPLING BEAMS

1

524907R91

BEAM, left coupling, for 2-1/2 in. fast-hitch sockets

58шт.

1

524906R91

BEAM, right coupling, for 3 in. fast-hitch sockets

58шт.

1

524908R91

BEAM, right coupling, for 2-1/2 in. fast-hitch sockets

58шт.

1

524905R91

BEAM, left coupling, for 3 in. fast hitch sockets

58шт.

280954

NUT,3/4"-10, G5

4шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

SCREW, 3/4 x 3-3/4 in. cap

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4 x 4 in. C-Z cap , Course threads

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

521087R2

BRACKET

coupling beam attaching

2шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z

4шт.

114-806

BOLT,Hex, 7/8" - 14 x 4-1/2", Gr 5

SCREW, 7/8UNF x 4-1/2 in. C-Z cap

4шт.

3

521084R2

WASHER

coupling beam serrated

2шт.

4

523962R2

CLAMP

bracket

2шт.
