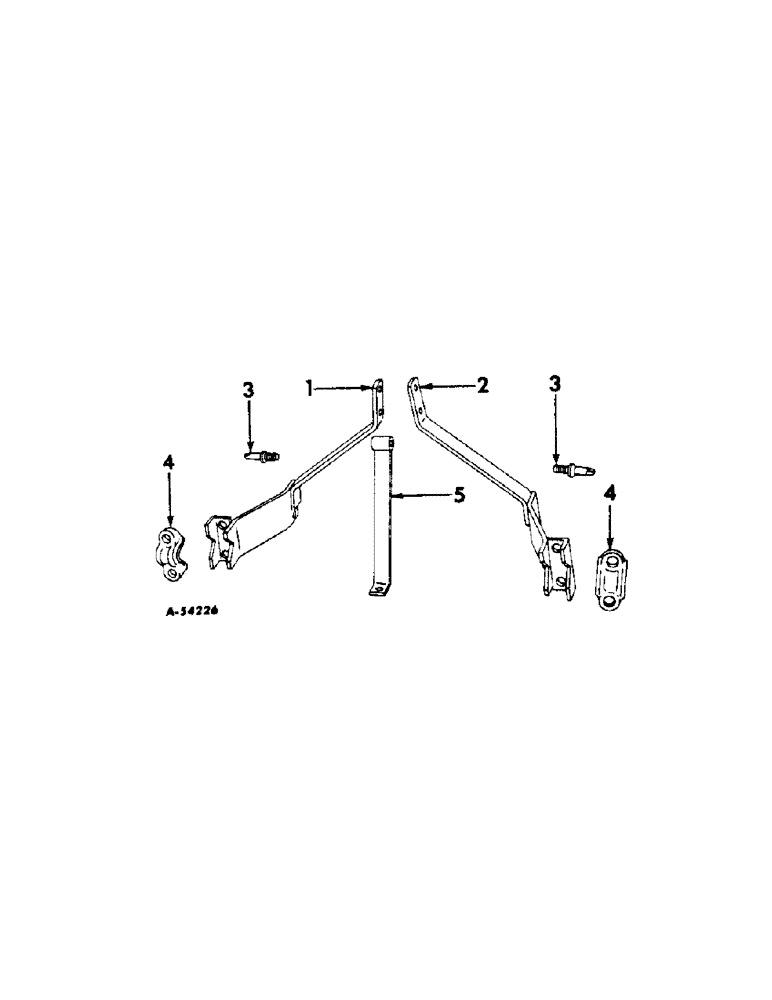

Запчасти Case IH 259 (N-7) - THREE-POINT HITCH

1

525897R91

FRAME, left attaching

1шт.

2

525898R91

FRAME, right attaching

1шт.

20299R1

BOLT, 5/8 x 3-3/4 type 1

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 in. heat-treated headed

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

525896R1

STUD

lower link

1шт.

426767

NUT,7/8"-14, G5

7/8-NF type 5

1шт.

131047

WASHER,7/8"

7/8"

1шт.

4

523962R2

CLAMP

CAP, support clamp

1шт.

218200

NUT,7/8"-14, G5

7/8-NF pln type 5

4шт.

271849

BOLT

7/8-NF x 5 type 5

2шт.

12356R1

BOLT, 7/8-NF x 5-1/4 type 5

2шт.

5

525638R21

BRACE

1шт.

19703R1

BOLT, 5/8 x 1-1/4 crg type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
