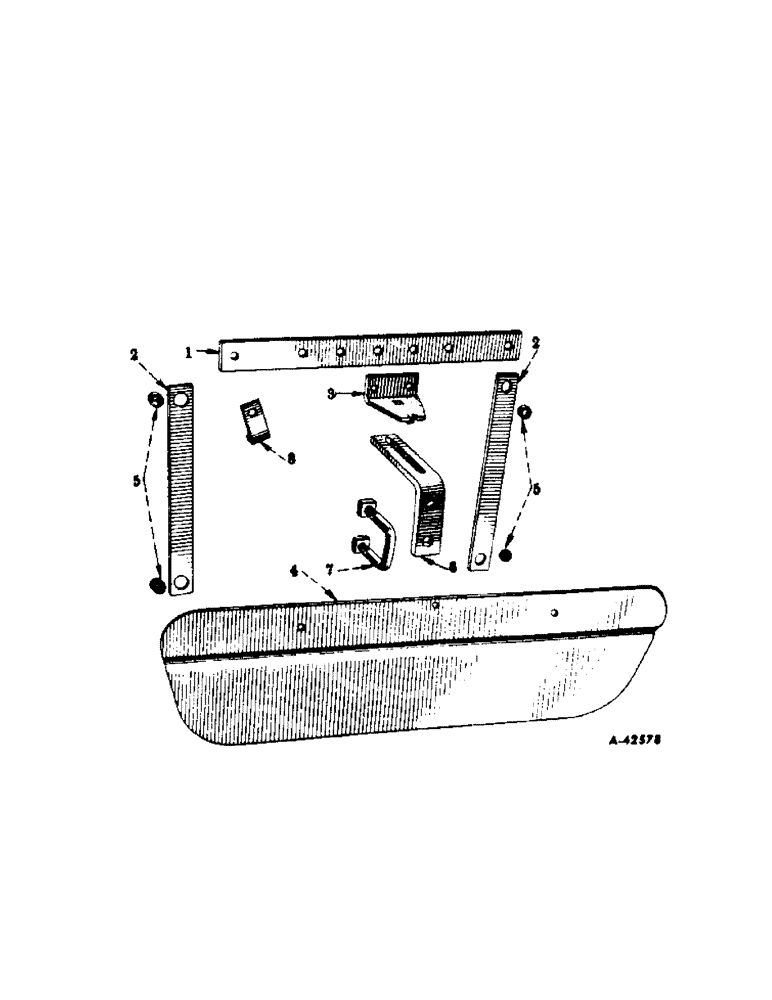

Запчасти Case IH 259 (N-6) - CULTIVATOR SHIELD, FOR SQUARE TOOL BARS

1

516214R2

SUPPORT, pivot link

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

114607

LOCK, Ext Tooth, 7/16"

1шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

2шт.

2

510754R1

LINK, straight pivot

1шт.

3

516212R2

BRACKET, shield adjusting

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

516215R1

SHIELD

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

4шт.

5

512836R1

WASHER

BUSHING, pivot link

1шт.

6

521438R1

BRACKET, shield mounting

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-3/8 pln crg type 1

1шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

1шт.

7

512357R1

U-BOLT, mounting bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

611346R1

WASHER

.406 x .875 x .054

2шт.

8

515217R1

SUPPORT

CLIP, shield adjusting

1шт.
