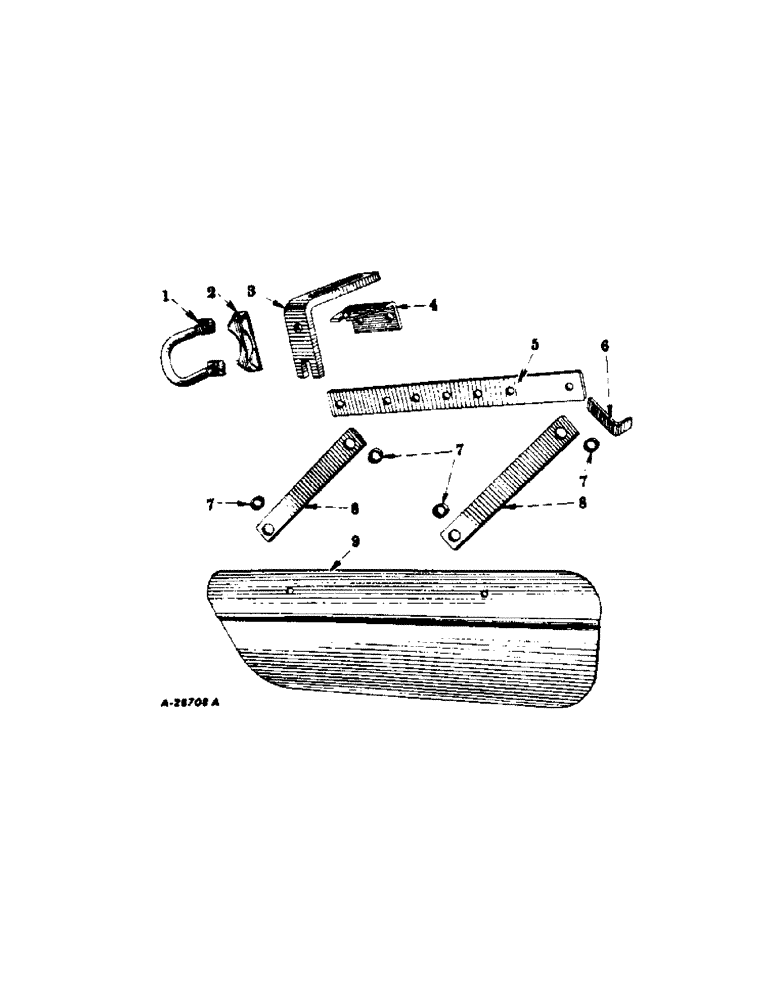

Запчасти Case IH 259 (N-6[A]) - CULTIVATOR SHIELD FOR PIPE BEAMS

1

517353R1

U-BOLT, shield mounting

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

25150B

ADAPTER, shield bracket

1шт.

3

521438R1

BRACKET, shield mounting

1шт.

4

516212R2

BRACKET, shield mounting

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

1шт.

5

516214R2

SUPPRT, pivot link

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

1шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

2шт.

6

515217R1

SUPPORT

CLIP, shield adjusting

1шт.

7

512836R1

WASHER

BUSHING, pivot link

1шт.

8

510754R1

LINK, straight pivot

1шт.

9

516215R1

SHIELD

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

4шт.
