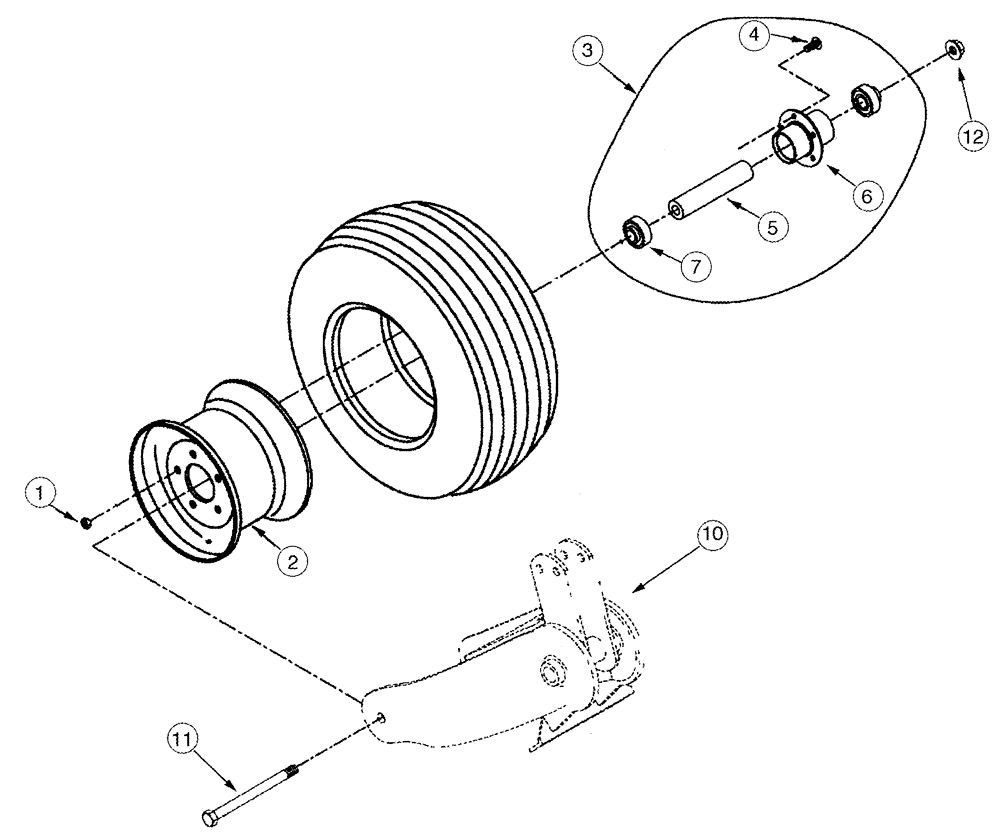

Запчасти Case IH 2240 (09-09) - GAUGE WHEEL

1

425-118

NUT,1/2"-20, G5

5шт.

2

369060A1

WHEEL

8" x 10"

1шт.

2b

810769C1

VALVE

Not Illustrated

1шт.

3

369059A1

HUB

Includes 4 - 7

1шт.

4

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

1/2 x 1 1/4

5шт.

5

369063A1

SPACER

1" OD x 11/16" ID x 2 7/3

1шт.

6

NSS

NOT SOLD SEPARAT

Hub

1шт.

7

372718A1

BALL BEARING,19.05mm ID x 47mm OD x 14.99mm W

Consists Of 8, 9

2шт.

8

369150A1

BUSHING

Not Illustrated

1шт.

9

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

Not Illustrated

1шт.

10

REF

INSTRUCTION

Fork, See Figure 9-05 Ref 24

1шт.

11

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

5/8 x 9

1шт.

12

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.
