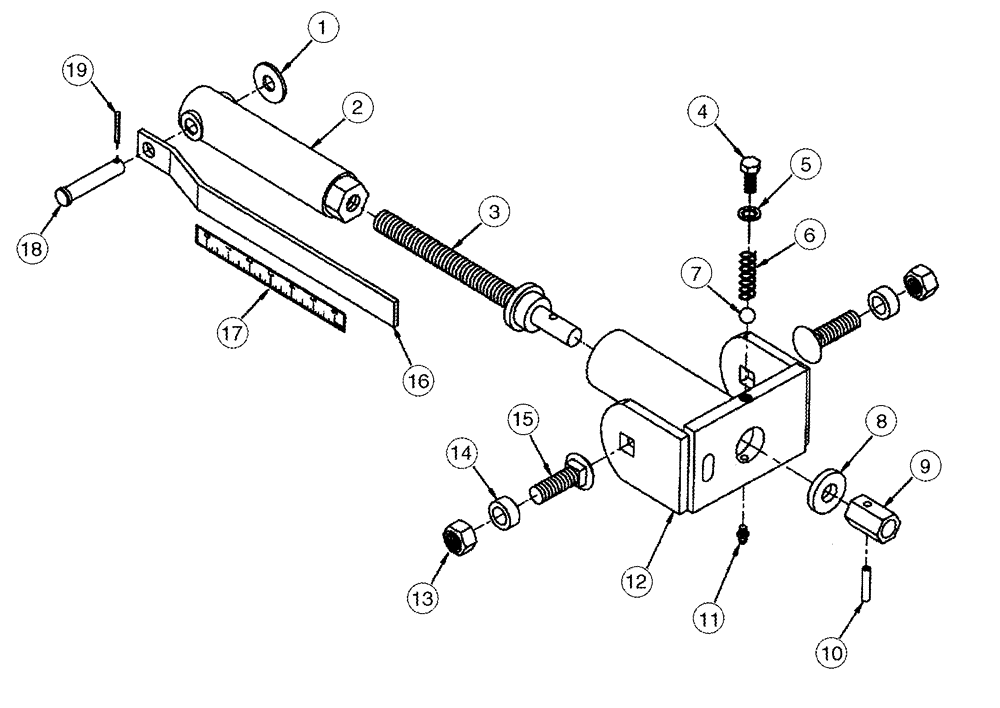

Запчасти Case IH 2240 (09-06) - ROW UNIT ADJUSTING CRANK ASSY

1

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

2

369053A1

CRANK

Lower

1шт.

3

369054A1

SCREW

1шт.

4

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

5

493-21039

LOCK WASHER,Int Tooth, 3/8"

3/8

1шт.

6

369047A1

SPRING

1шт.

7

211-2210

BALL,5/16" Dia, Stainless

1шт.

8

369051A1

WASHER

1шт.

9

369049A1

NUT

1шт.

10

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1/4" x 1 1/4", Slotted

1шт.

11

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

12

369056A1

CRANK

Upper

1шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

369052A1

BUSHING

1"OD x 5/8"ID x 7/16"

1шт.

15

412-1024

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

5/8 x 1-1/2

2шт.

16

369055A1

STRAP

1шт.

17

369050A1

DECAL

Depth Gauge

1шт.

18

439-5844

HEADED PIN,1/2" x 2 3/4", G5

1/2 x 2-3/4

1шт.

19

432-816

COTTER PIN,1/8" x 1"

1шт.
