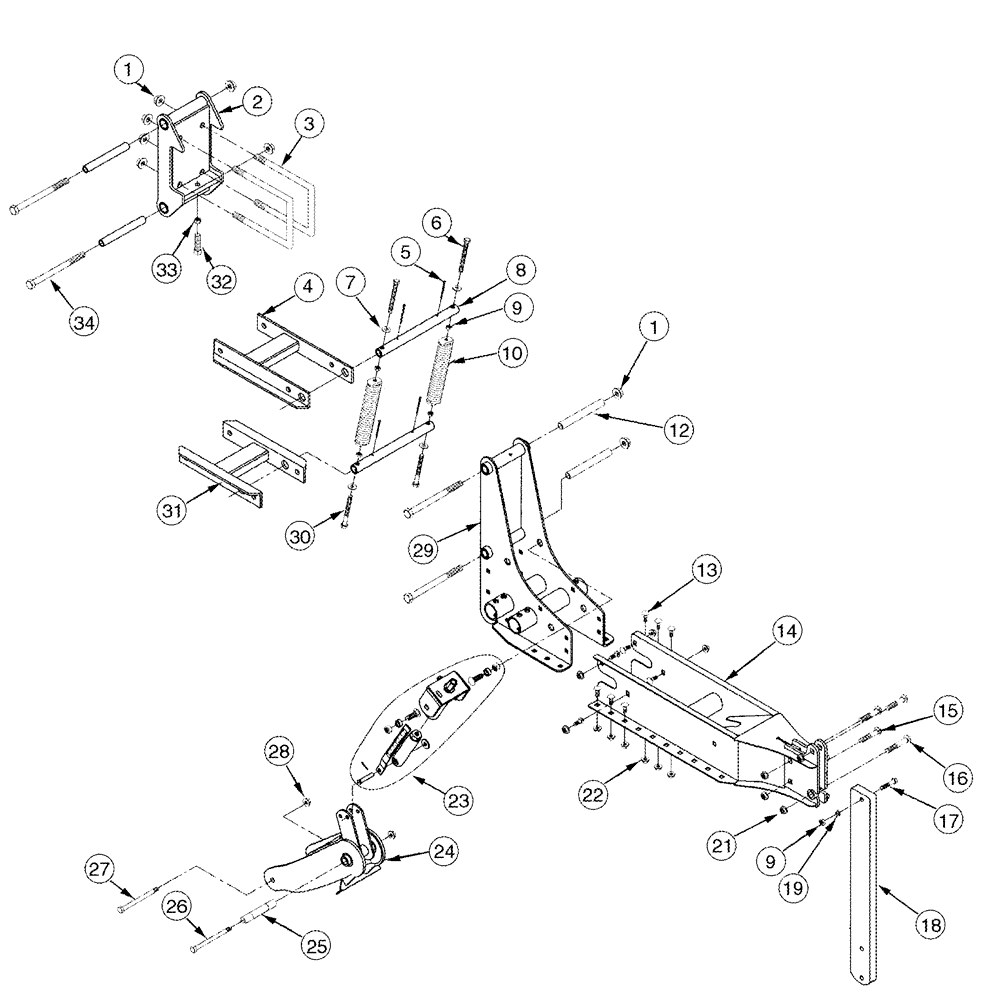

Запчасти Case IH 2240 (09-05) - ROW UNIT

1

232-53112

FLANGE NUT,Flg, 3/4"-10

8шт.

2

369039A1

MOUNTING PARTS

1шт.

3

147451C2

U-BOLT,3/4" - 10 x 217.45mm

BOLT "U" , 3/4 x 7

2шт.

4

369042A1

LINKAGE

1шт.

5

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

6

113-2297

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5, Full Thd

2шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

8

369043A1

TUBE,14.88" Length

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

5шт.

10

369045A1

SPRING

2шт.

12

369038A1

BUSHING

1" OD x 3/4" ID x 8"

4шт.

13

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

10шт.

14

369048A1

FRAME

1шт.

15

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2

2шт.

16

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

18

369036A1

SUPPORT ASSY.

1" x 3" x 26" lg

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

21

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8

4шт.

22

425-288

FLANGE NUT,Flg, 1/2"-13, G5

1/2

10шт.

23

369037A1

CRANK

See Figure 9-06

1шт.

24

369040A1

FORK

1шт.

25

369041A1

BUSHING

1"OD x 5/8"ID x 6-1/2"

1шт.

26

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8

1шт.

27

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

5/8 x 9

1шт.

28

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

29

369046A1

FRAME

1шт.

30

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

31

369044A1

LINKAGE

1шт.

32

485-17540

SET SCREW,Sq Hd, 3/4"-10 x 2 1/2"

3/4 x 2 1/2

1шт.

33

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4

1шт.

34

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

4шт.
