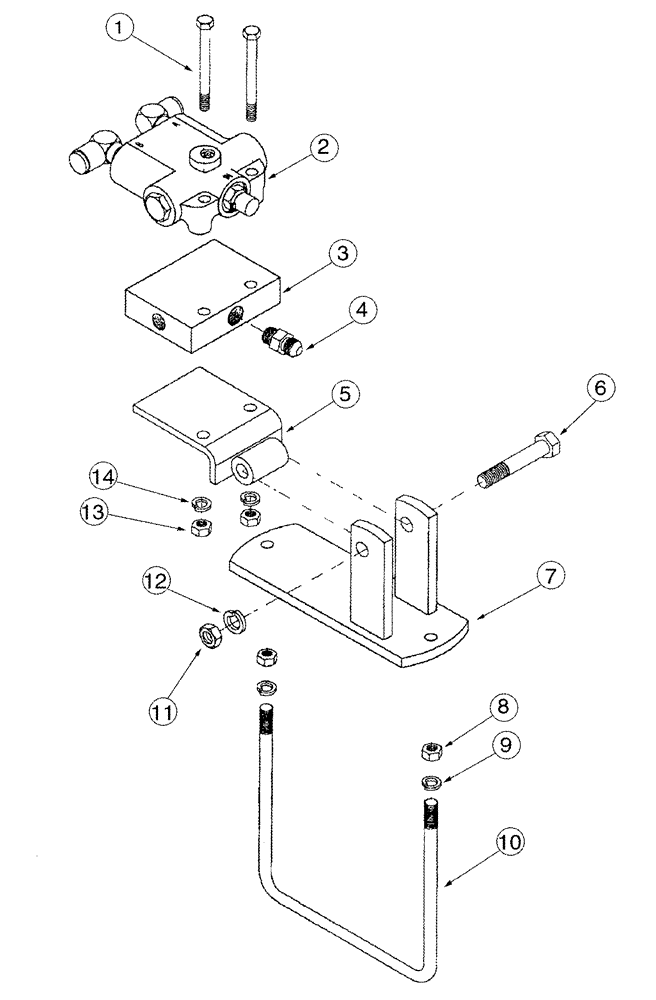

Запчасти Case IH 2240 (09-17) - VALVE ASSY

1

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

2

374804A1

VALVE

1шт.

3

374807A1

TEE

1шт.

4

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

5

374805A1

MOUNTING PARTS

1шт.

6

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

7

374806A1

MOUNTING PARTS

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

374802A1

U-BOLT,3/8" - 16 x 7.11" W x 8.19" L

BOLT "U"

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.
