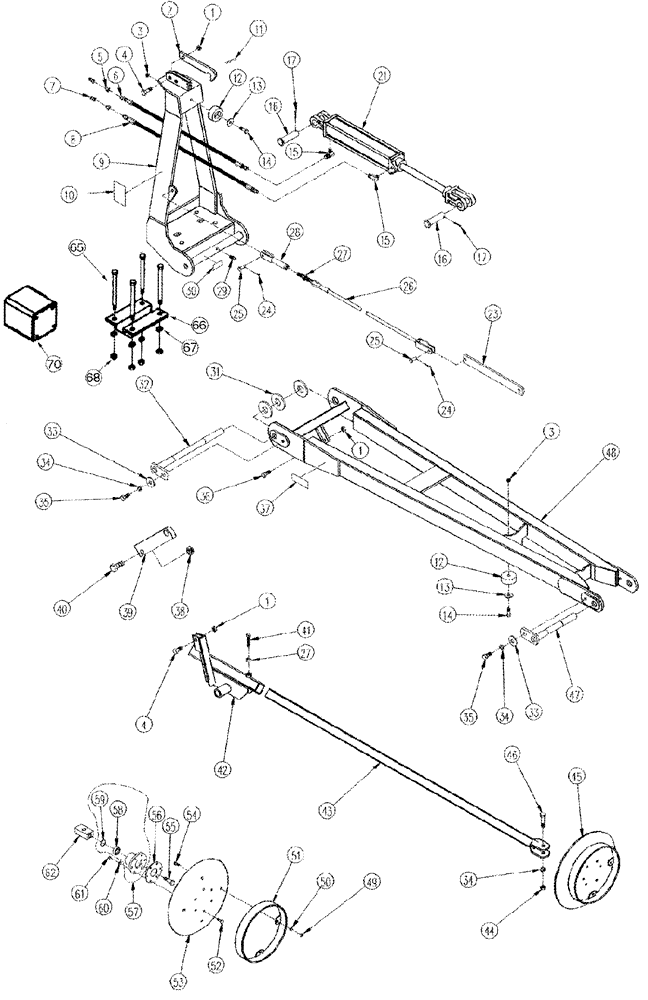

Запчасти Case IH 2240 (09-15[02]) - FOLDING MARKERS RIGID TOOLBAR 8 ROW WIDE - 12 ROW NARROW

1

231-1448

NUT,1/2"-13, GB

3шт.

2

374781A1

LATCH

1шт.

3

231-1446

NUT,3/8" - 16, Gr 5

2шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

369161A1

BUSHING

2шт.

6

374788A1

HOSE

1/4 X 227", 8RW, 10RN (1)

1шт.

6

374797A1

HYDRAULIC HOSE,0.25" ID x 263.00"

1/4 X 263", 10RW, 12RN (1)

1шт.

7

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

2шт.

8

374789A1

HOSE

1/4 X 219", 8RW, 10RN (1)

1шт.

8

374798A1

LARGE HOSE

HOSE,LARGE , 1/4 X 255", 10RW, 12RN (1)

1шт.

9

374780A1

BRACKET

1шт.

10

NSS

NOT SOLD SEPARAT

Decal

2шт.

11

374785A1

PIN

3/16 x 3 9/16

1шт.

12

337125A1

BUMPER

2 1/2

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

374829A1

ELBOW

2шт.

16

374958A1

CLEVIS PIN,31.77mm OD x 101.6mm L

2шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

21

374828A1

CYLINDER

2 x 12

1шт.

22

374773A1

CYLINDER

Consists Of 15 - 21

1шт.

23

374775A1

STRAP

1шт.

24

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

25

374786A1

CLEVIS PIN

3/8 x 1 1/8

2шт.

26

374787A1

CABLE

1/4 x 70", 8RW, 10RN (1)

1шт.

26

374796A1

CABLE

1/4 x 93", 10RW, 12RN (1)

1шт.

27

425-148

JAM NUT,Jam, 1/2"-13, G5

3шт.

28

374776A1

CLEVIS

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30

369064A1

DECAL

1шт.

31

495-21106

WASHER,1"

1.062 x 2.50 x .165

2шт.

32

374777A1

PIN

1шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

36

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

37

NSS

NOT SOLD SEPARAT

Decal

2шт.

38

231-14412

LOCK NUT,3/4"-10, GB

1шт.

39

374952A1

BLOCK

1шт.

40

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

41

485-15024

SET SCREW,Sq Hd, 1/2"-13 x 1 1/2"

1/2 x 1 1/2

2шт.

42

374779A1

HINGE

1шт.

43

374793A1

TUBE

8RW , 10RN (1)

1шт.

43

374799A1

TUBE

10RW, 12RN (1)

1шт.

44

425-108

NUT,1/2" - 13, Gr 5

1шт.

45

357205A1

KIT

14", Includes 49 - 63

1шт.

46

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

47

374778A1

PIN

1шт.

48

374790A1

ARM

8RW , 10RN (1)

1шт.

48

374800A1

ARM

10RW, 12RN (1)

1шт.

49

425-105

NUT,5/16"-18, G5

4шт.

50

493-81008

LOCK WASHER,Int Tooth, 5/16"

4шт.

51

357102A1

BAND

1шт.

52

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

6шт.

53

357103A1

DISC

14"

1шт.

54

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

55

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

56

357106A1

GASKET

1шт.

57

357105A1

BEARING ASSY,0.85"

Includes 58, 59

1шт.

58

369108A1

BALL BEARING,0.75" ID

1шт.

59

101-21237

SNAP RING,#237, 2.537", Int

2 3/8 in

1шт.

60

493-21026

LOCK WASHER,Int Tooth, 1/4"

6шт.

61

425-104

NUT,1/4"-20, Cl 5

6шт.

62

357104A1

BLOCK

1шт.
