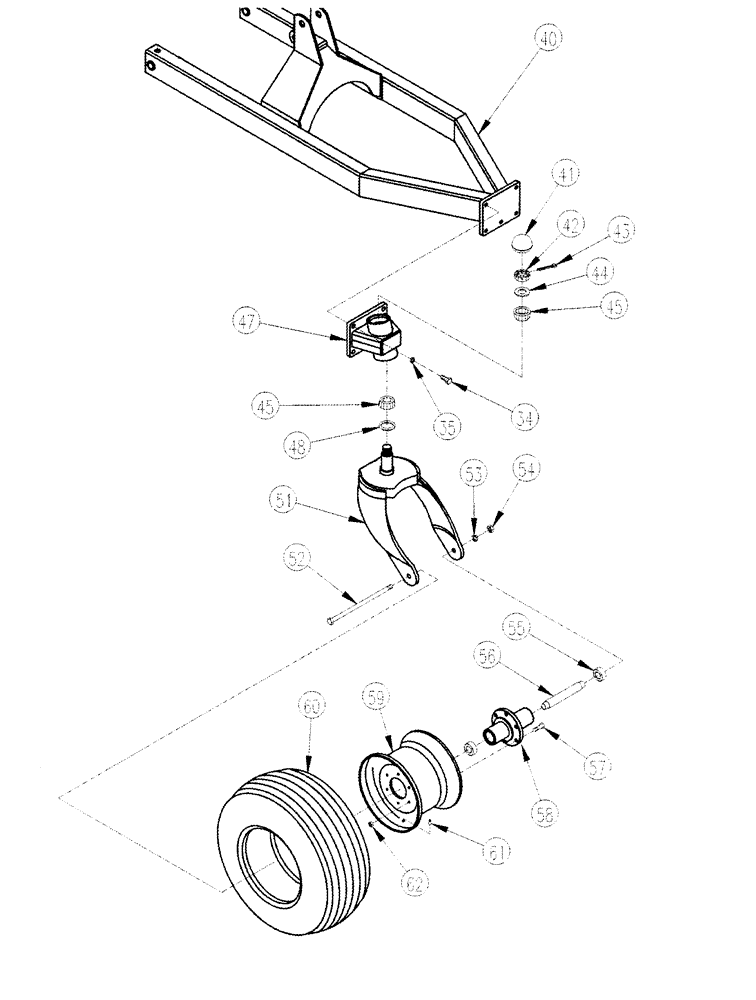

Запчасти Case IH 2240 (09-14) - WHEEL LIFT ASSIST, CONTINUED

40

REF

INSTRUCTION

Frame, See Figure 9-13 Ref 7

1шт.

41

374872A1

CAP

1шт.

42

425-128

SLOTTED NUT,1/2"-13, G5

1/2

1шт.

43

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

1шт.

44

374871A1

WASHER

1шт.

45

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

47

374869A1

FRAME

Tail

1шт.

48

374880A1

SEAL

1шт.

51

374870A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

52

374848A1

BOLT

1 x 12 1/2 in

1шт.

53

492-11100

LOCK WASHER,1"

1"

1шт.

54

425-1016

NUT,1"-8, G5

1шт.

55

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

2шт.

56

374884A1

SPACER

1шт.

57

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 NF x 15/16

6шт.

58

374883A1

HUB

1шт.

59

374887A1

WHEEL

1шт.

60

NSS

NOT SOLD SEPARAT

Tire

1шт.

61

810769C1

VALVE

1шт.

62

453770R1

WHEEL NUT

6шт.
