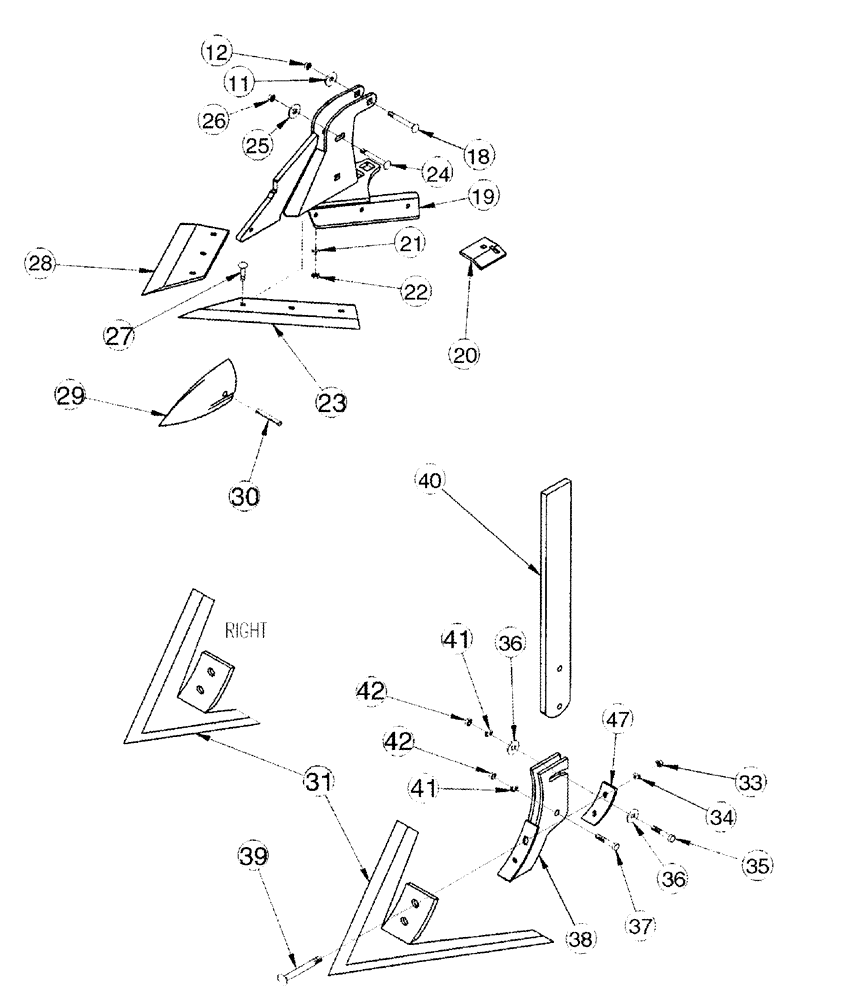

Запчасти Case IH 2240 (09-11) - SWEEP OPTIONS

18

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

19

372787A1

MOUNTING PARTS

Blade, 30 - 40" Full row (1)

1шт.

19

372788A1

FOOT

Blade, Right Hand Side, 30" Half row (1)

1шт.

19

372789A1

FOOT

Blade, Left Hand Side, 30" Half row (1)

1шт.

21

492-11038

LOCK WASHER,3/8"

6шт.

22

425-106

NUT,3/8"-16, Cl 5

6шт.

23

372783A1

BLADE

30", Half, Left

1шт.

23

372785A1

SHOVEL

30", Left

1шт.

23

372719A1

SHOVEL

36", Left

1шт.

23

372721A1

SHOVEL

24", Left

1шт.

23

374758A1

BLADE

26", Left

1шт.

24

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

2шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

2шт.

27

419-3616

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8" x 1"

6шт.

28

372782A1

BLADE

30", Right

1шт.

28

372784A1

SHOVEL

30", Right

1шт.

28

372799A1

SHOVEL

36", Right

1шт.

28

372720A1

SHOVEL

24", Right

1шт.

28

374757A1

BLADE

26", Right

1шт.

29

372786A1

POINT

1шт.

30

38-32024

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

31

372653A1

SHOVEL

14 in, Full, Hard Faced

1шт.

31

372654A1

SHOVEL

16 in, Full, Hard Faced

1шт.

31

372655A1

SHOVEL

18 in, Full, Hard Faced

1шт.

31

372656A1

SHOVEL

20 in, Full, Hard Faced

1шт.

31

372657A1

SHOVEL

24", Full, Hard Faced

1шт.

31

372658A1

SHOVEL

26", Full, Hard Faced

1шт.

31

372639A1

SHOVEL

14 in, 3/4, Right, Hard Faced

1шт.

31

372638A1

SHOVEL

14 in, 3/4, Left, Hard Faced

1шт.

31

372641A1

SHOVEL

16 in, 3/4, Right, Hard Faced

1шт.

31

372640A1

SHOVEL

16 in, 3/4, Left, Hard Faced

1шт.

31

372643A1

SHOVEL

18 in, 3/4, Right, Hard Faced

1шт.

31

372642A1

SHOVEL

18 in, 3/4, Left, Hard Faced

1шт.

31

372645A1

SHOVEL

20 in, 3/4, Right, Hard Faced

1шт.

31

372644A1

SHOVEL

20 in, 3/4, Left, Hard Faced

1шт.

31

372647A1

SHOVEL

24 in, 3/4, Right, Hard Faced

1шт.

31

372646A1

SHOVEL

24 in, 3/4, Left, Hard Faced

1шт.

31

372649A1

SHOVEL

26 in, 3/4, Right, Hard Faced

1шт.

31

372648A1

SHOVEL

26 in, 3/4, Left, Hard Faced

1шт.

33

425-107

NUT,7/16"-14, G5

2шт.

34

492-11044

LOCK WASHER,7/16"

2шт.

35

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

36

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

37

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

38

372780A1

FOOT

1шт.

39

419-3748

PLOW BOLT,#3, 7/16" - 14 x 3", Gr 5

7/16 x 3

2шт.

40

369036A1

SUPPORT ASSY.

1" x 3" x 26" lg

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

42

425-108

NUT,1/2" - 13, Gr 5

2шт.

47

372781A1

HEEL

1шт.
