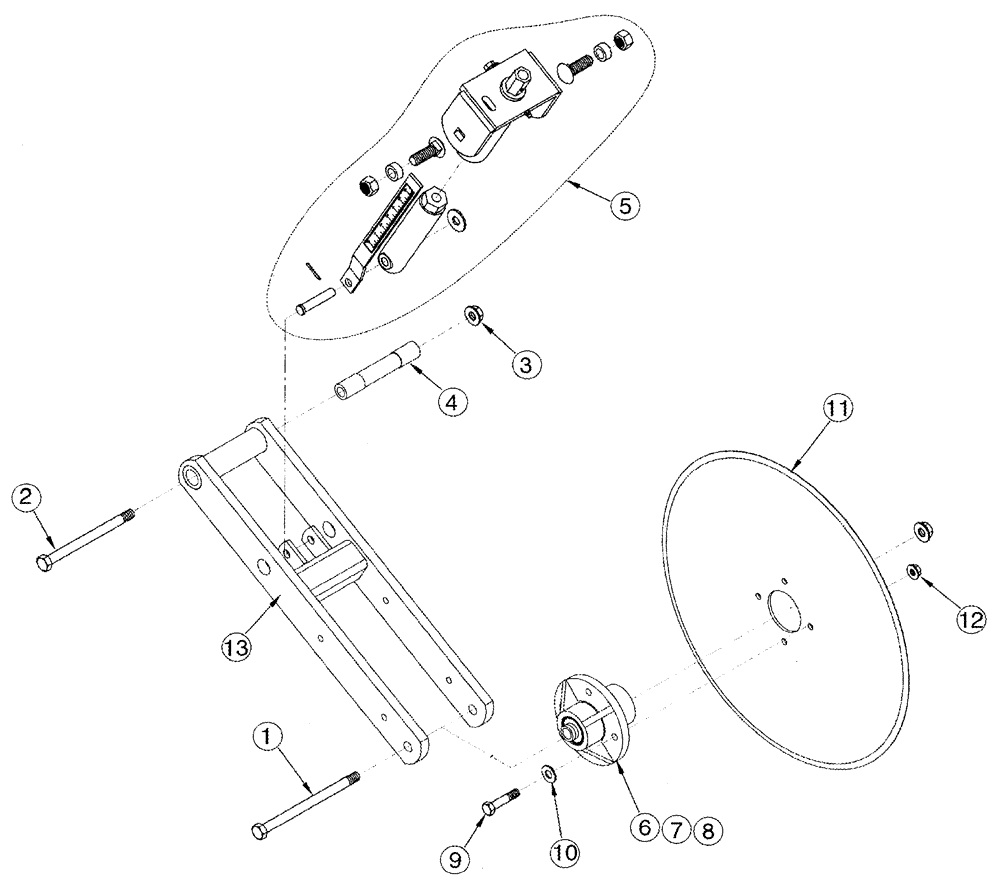

Запчасти Case IH 2240 (09-10) - CENTER COULTER

1

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8 x 7

1шт.

2

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/6 x 7-1/2

1шт.

3

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8

2шт.

4

369041A1

BUSHING

1"OD x 5/8"ID x 6-1/2"

1шт.

5

369037A1

CRANK

See Figure 9-06

1шт.

6

369069A1

HUB ASSY.

Includes 7, 8

1шт.

7

369122A1

SPACER

1шт.

8

372718A1

BALL BEARING,19.05mm ID x 47mm OD x 14.99mm W

With Bushing

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

11

369070A1

DISC

20 in

1шт.

12

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

13

369068A1

YOKE

UNIVERSAL JOINT YOKE

1шт.
