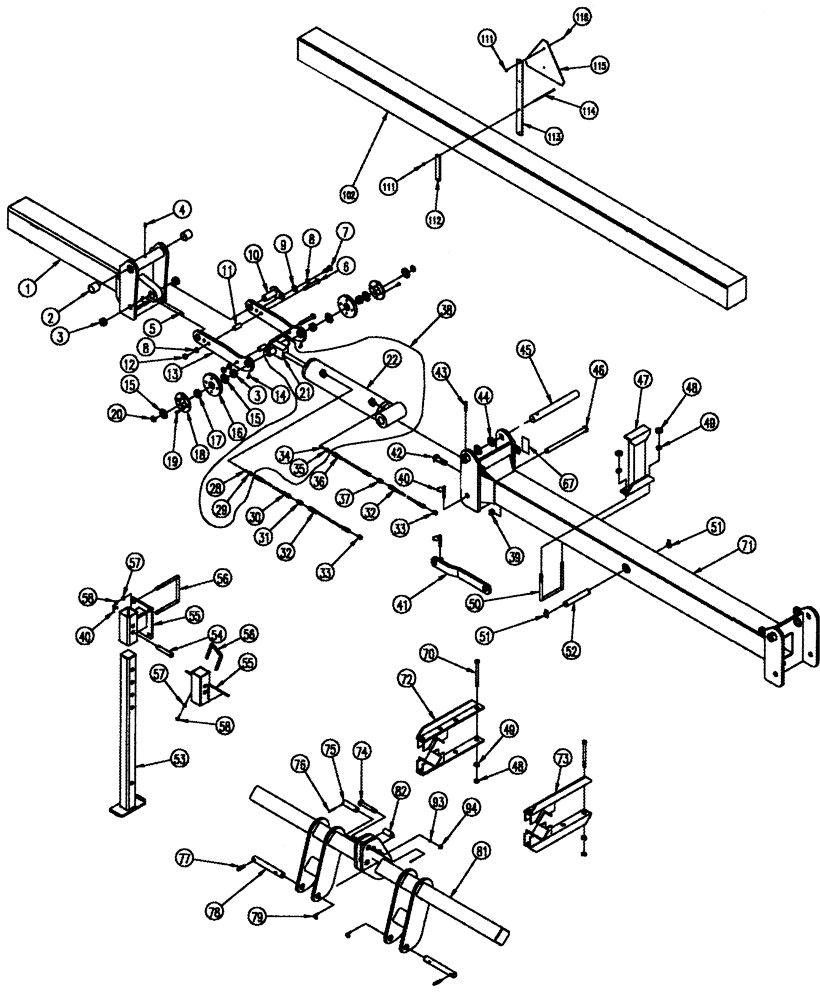

Запчасти Case IH 2240 (09-01) - FRAME

1

372778A1

FRAME

60 in, 10 row 30 inch folding (2)

1шт.

1

372772A1

FRAME

65 in, 8 row 36 inch folding (2)

1шт.

1

369187A1

FRAME

74 in, 8 row 38 / 40 inch folding (2)

1шт.

1

369193A1

FRAME

78 in, 10 row 36 inch folding (2)

1шт.

1

372777A1

FRAME

82 in, 10 row 38 inch folding (2)

1шт.

1

369184A1

FRAME

90 in, 12 row 30 inch folding (2)

1шт.

1

369210A1

FRAME

106 in, 12 row 36 inch folding (2)

1шт.

1

369155A1

FRAME

116 in, 12 row 38 / 40 inch and 16 row 30 inch folding (2)

1шт.

2

356913A1

BUSHING

2.125 OD x 1.754 ID x 2

4шт.

3

369159A1

BUSHING

1.875 OD x 1.51 ID x .75

16шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

6

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2 x 4-1/2

4шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

8

429-11050

1/2

6шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

10

369168A1

PLATE

2шт.

11

369174A1

BUSHING

Spacer

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

8шт.

13

369169A1

STRAP

4шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

4шт.

15

369160A1

BUSHING

2-1/2 OD x 1-1/2 ID x 14

8шт.

16

369181A1

WHEEL,149.22mm OD x 15.87mm W

1/2", Guide

4шт.

16

369170A1

WHEEL,155.57mm OD x 19.05mm W

3/4", Guide

4шт.

17

369179A1

BUSHING

1.875 OD x 1.51 ID x .625

4шт.

18

369167A1

PLATE

4шт.

19

461-43812

HEX SOC SCREW,Flat Hd, 3/8"-16 x 3/4"

3/8 x 3/4

16шт.

20

100-11150

SNAP RING,#150, Ext

4шт.

21

369182A1

PIN

6 row rigid: 8 row rigid: 10 row 36/38 folding: 12 row 36/38/40 folding: 16 row 30 inch folding (2), With Pin

1шт.

21

369171A1

BLOCK

8 row 36/38/40 inch folding: 10 row 30 inch folding: 12 row 30 inch folding (2), With Pin

1шт.

22

372735A1

CYLINDER

4 x 24

2шт.

28

372736A1

SET SCREW,Hdls Hex Skt, 3/8" - 16 x 3/8", Flat Pt

.062

1шт.

29

372737A1

ADAPTER

1шт.

30

369190A1

HOSE,0.25" ID x 840.00"

1/4 X 84, 8 row 36 inch folding (2)

1шт.

30

369135A1

HOSE,96.00"

8 row 38 / 40 inch folding: 10 row 30 inch folding: 12 row 30 inch folding (2)

1шт.

30

369196A1

HOSE,120.00"

1/4 X 120, 10 row 36 / 38 inch folding: 12 row 36 inch folding (2)

1шт.

30

369152A1

HOSE,132.00"

12 row 38 / 40 inch folding: 16 row 30 inch folding (2)

1шт.

31

369175A1

FITTING

2шт.

32

369163A1

HOSE

1/4 x 48

4шт.

33

369161A1

BUSHING

Bushing

8шт.

34

372738A1

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16", Flat Pt

2шт.

35

372739A1

ADAPTER

2шт.

36

369191A1

HOSE

1/4 x 60, 8 row 36 inch folding (2)

2шт.

36

369183A1

HOSE

1/4 x 72, 8 row 38 / 40 inch folding: 10 row 30 inch folding: 12 row 30 inch folding (2)

2шт.

36

369197A1

HOSE

1/4 X 96, 10 row 36 / 38 inch folding: 12 row 36 inch folding (2)

2шт.

36

369153A1

HOSE

1/4 X 108, 12 row 38 / 40 inch folding: 16 row 30 inch folding (2)

2шт.

37

369176A1

FITTING

2шт.

38

369154A1

KIT

2шт.

39

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1.25

2шт.

40

A30338

PIN

4шт.

41

369173A1

BRACKET

2шт.

42

28-1840

BOLT,Hex, 1-1/8" - 12 x 2-1/2", Gr 8

1 1/8 x 2 1/2

2шт.

43

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

44

355964A1

BUSHING

2 1/2 x 1 3/4 x 14

4шт.

45

337382A1

PIN,44.45mm OD x 411.18mm L

Hinge

2шт.

46

337378A1

PIN

2шт.

47

369172A1

SUPPORT

Wing

2шт.

48

425-1012

NUT,3/4"-10, G5

20шт.

49

492-11075

LOCK WASHER,3/4"

3/4"

20шт.

50

147451C2

U-BOLT,3/4" - 10 x 217.45mm

BOLT "U" , 3/4 x 7

2шт.

51

100-11100

SNAP RING,#100, Ext

4шт.

52

369166A1

SHAFT

3/8" Wall Center (2)

1шт.

52

369180A1

SHAFT

1/2" Wall Center (2)

1шт.

53

358761A1

TUBE,48.5" Length

1шт.

54

355976A1

PIN,19.05mm OD x 126.64mm L

1шт.

55

330562A1

SLEEVE

Double Bar Stand

1шт.

55

369115A1

BRACKET

4 x 4 Bar Stand

1шт.

56

1250813C1

U-BOLT

5/8-11 X 7 X 7

1шт.

56

608528R1

BOLT,U, 5/8" - 11 x 5.75"

5/8 x 4

1шт.

56

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8 x 7 X 6

1шт.

57

492-11062

BEARING WASHER,5/8"

4шт.

58

425-1010

NUT,5/8"-11, G5

4шт.

70

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9

1шт.

71

369192A1

FRAME

180 in, 8 row 36 inch center (1)

1шт.

71

369186A1

FRAME

200 in, 8 row 38 / 40 inch center (1)

1шт.

71

369185A1

FRAME

210 in, 10 row 30 inch / 12 row 30 inch center (1)

1шт.

71

369195A1

FRAME

252 in, 10 row 36 inch / 12 row 36 inch center (1)

1шт.

71

369211A1

FRAME

266 in, 10 row 38 inch center (1)

1шт.

71

369188A1

FRAME

270 in, 16 row 30 inch center (1)

1шт.

71

369156A1

FRAME

280 in, 12 row 38 / 40 inch center (1)

1шт.

72

369091A1

SPACER

Rigid And Stacker Models (1), Right

1шт.

73

369092A1

SPACER

Rigid And Stacker Models (1), Left

1шт.

74

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

1шт.

75

369085A1

PIN

1 1/4 x 4 7/8

1шт.

76

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.

77

438-13240

LOCK PIN,12.5mm OD x 63.5mm L, Coiled

1/2" x 2 1/2", Slotted

2шт.

78

369083A1

PIN

1 7/16 x 10 7/8

2шт.

79

372907R91

LINCH PIN

16 row 30 inch folding (1)

2шт.

81

369089A1

TRAILER HITCH

144 in, 8 row 38/40 inch stacker: 12 row 36/38/40 inch stacker (1)

1шт.

81

369086A1

TRAILER HITCH

168 in, 6 row 30/36/38/40 inch rigid: 8 row 30 inch rigid: 8 row 36 inch folding (1)

1шт.

81

369082A1

TRAILER HITCH

192 in, 8 row 38/40 inch folding (1)

1шт.

81

369088A1

TRAILER HITCH

204 in, 8 row 36/38/40 inch rigid: 10 row 36 inch folding (1)

1шт.

81

369087A1

TRAILER HITCH

228 in, 10 row 38 inch folding: 12 row 36/38/40 inch folding (1)

1шт.

81

369078A1

TUBE,43.88" Length

240 in, 16 row 30 inch folding (1)

1шт.

82

369081A1

BUSHING

1 1/4 OD x 3/4 ID x 2 1/8

1шт.

93

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

94

425-1012

NUT,3/4"-10, G5

1шт.

102

369116A1

BAR

17 ft, 7 x 7 x 3/8 in, 6 row 30 inch (1)

1шт.

102

369119A1

BAR

23 ft, 7 x 7, 8 row 30 inch (1)

1шт.

102

369117A1

BAR

21 ft, 7 x 7, 6 row 36 inch (1)

1шт.

102

369120A1

FRAME

27 ft, 7 x 7, 8 row 36 inch (1)

1шт.

102

369118A1

BAR

22 ft, 7 x 7 x 3/8 in, 6 row 38 inch (1)

1шт.

102

369121A1

BAR

30 ft, 7 x 7, 8 row 38 inch (1)

1шт.

109

369110A1

STRAP

1шт.

111

425-284

FLANGE NUT,Flg, 1/4"-20.G5

1/4

4шт.

112

369110A1

STRAP

1шт.

113

369111A1

BRACKET

1шт.

114

413-4128

BOLT,Hex, 1/4" - 20 x 8", Gr 5

1/4 x 8

2шт.

115

311860A1

EMBLEM

SMV Emblem

1шт.

116

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.
