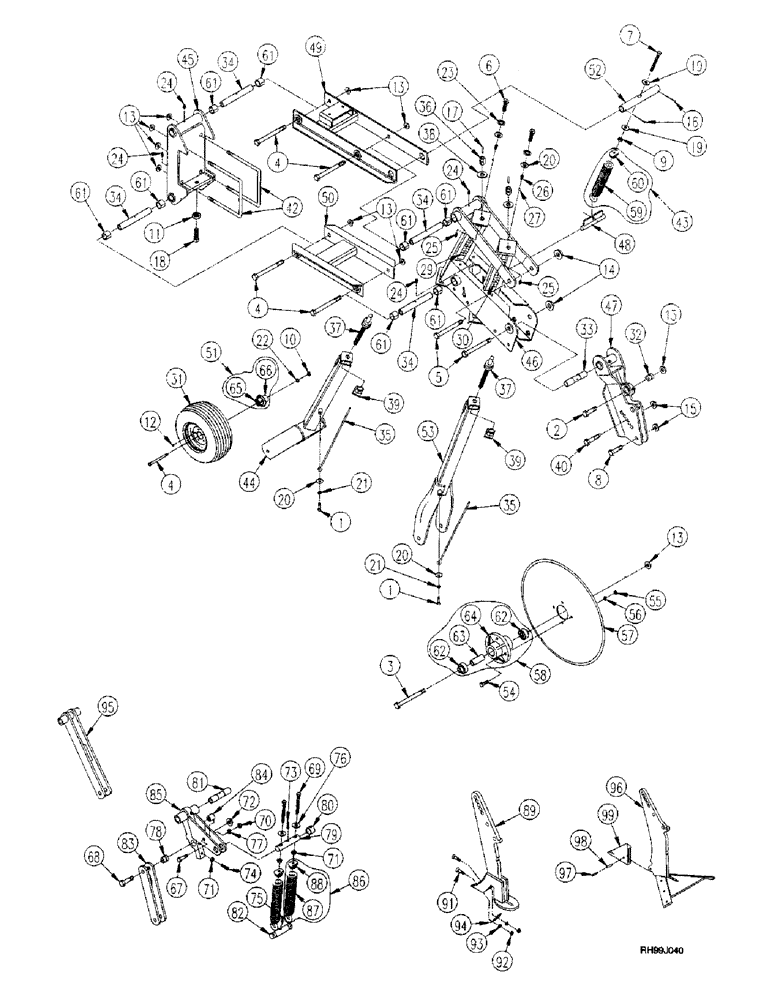

Запчасти Case IH 2220 (9-12) - ROW UNIT

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

2

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

3

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

4

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

5/8 x 9

5шт.

5

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4 x 6-1/2

2шт.

6

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

7

113-2479

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1шт.

8

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

Flange 5/8 x 2-1/2; 8

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4

1шт.

12

425-118

NUT,1/2"-20, G5

1/2 NF

5шт.

13

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

10шт.

14

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

15

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8

2шт.

16

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

17

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

18

485-17540

SET SCREW,Sq Hd, 3/4"-10 x 2 1/2"

Screw 3/4 x 2 1/2

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

20

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64) 3/8"

4шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

493-21039

LOCK WASHER,Int Tooth, 3/8"

Washer, Lock 3/8

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

25

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

26

369047A1

SPRING

2шт.

27

211-1010

BALL,5/16" OD

5/16; 24,CRS

2шт.

28

369064A1

DECAL

Grease Daily

2шт.

29

369137A1

DECAL

Tire Depth

1шт.

30

369138A1

DECAL

Coulter Depth

1шт.

31

358766A1

WHEEL

Rim, Wheel

1шт.

31a

810769C1

VALVE

Stem Not Illustrated

1шт.

32

358749A1

BUSHING

1шт.

33

358751A1

BUSHING

1шт.

34

358765A1

BUSHING

7 1/4

1шт.

35

358767A1

ROD

2шт.

36

369049A1

NUT

2шт.

37

358768A1

ADJUSTMENT SCREW

2шт.

38

369051A1

WASHER

2шт.

39

358770A1

STOP

Nut

2шт.

40

358769A1

BOLT,Hex Flg, 5/8" - 11 x 3", Gr 5

Screw 5/8 x 3

2шт.

42

1250813C1

U-BOLT

Bolt, U 5/8-11 X 7 X 7

2шт.

43

358771A1

PIVOT

Hook Assy Consists Of : 59, 60

1шт.

44

358773A1

MOUNTING PARTS

Mount

1шт.

45

358774A1

MOUNTING PARTS

Bracket

1шт.

46

358775A1

FRAME

Body

1шт.

47

358776A1

TUBE

Support

1шт.

48

358777A1

PIN

1шт.

49

358778A1

LINKAGE

Bracket Upper

1шт.

49

369132A1

BAR

Bracket #16R and 18R with 22 inch row spacing only Upper

1шт.

50

358779A1

LINKAGE

Bracket Lower

1шт.

51

369059A1

HUB

Assy Consists Of : 65, 66, 66A, 66B

1шт.

52

358780A1

TUBE,0.875" ID, 1.25" OD, 8.875" Length

Rod

1шт.

53

358781A1

TUBE

1шт.

54

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

55

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

56

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

57

358783A1

PLOW DISC

Coulter 18 in

1шт.

58

369069A1

HUB ASSY.

Hub Assy Consists Of : 62, 63, 64

1шт.

59

369147A1

SPRING

1шт.

60

369145A1

PLUG

1шт.

61

355963A1

BUSHING

1-1/4" OD x 1" ID x 1"

8шт.

62

372718A1

BALL BEARING,19.05mm ID x 47mm OD x 14.99mm W

Bearing, Roller

2шт.

63

369122A1

SPACER

1шт.

64

369124A1

HUB

1шт.

65

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

Bolt 1/2 x 1 1/4

5шт.

66

NSS

NOT SOLD SEPARAT

Hub Order : 51

1шт.

66a

369063A1

SPACER

1" OD x 11/16" ID x 2 7/3

1шт.

66b

372718A1

BALL BEARING,19.05mm ID x 47mm OD x 14.99mm W

Bearing, Roller Consists Of : 66C, 66D

2шт.

66c

369150A1

BUSHING

1шт.

66d

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

Bearing, Roller

1шт.

67

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

68

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

69

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5

2шт.

70

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

71

425-148

JAM NUT,Jam, 1/2"-13, G5

3шт.

72

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

73

438-32020

PIN,5/16" x 1 1/4", Coiled

1шт.

74

485-15032

SET SCREW,Sq Hd, 1/2"-13 x 2"

Screw 1/2 x 2

1шт.

75

461-33812

HEX SOC SCREW,3/8"-16 x 3/4"

Screw 3/8 x 3/4

1шт.

76

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

77

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

78

358749A1

BUSHING

1шт.

79

358732A1

ROD

1шт.

80

358750A1

COLLAR

1шт.

81

358751A1

BUSHING

1шт.

82

358752A1

PIN

1шт.

83

358753A1

LINKAGE

Bracket

1шт.

84

358754A1

SPACER

1шт.

85

358755A1

LINKAGE

Bracket

1шт.

86

358756A1

SPRING

Assy Consists Of : 87, 88

1шт.

87

369144A1

SPRING

1шт.

88

369145A1

PLUG

1шт.

89

358743A1

SHANK

1шт.

91

419-3748

PLOW BOLT,#3, 7/16" - 14 x 3", Gr 5

Bolt 7/16 x 3

2шт.

92

425-107

NUT,7/16"-14, G5

2шт.

93

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

94

358744A1

PLATE

Base

1шт.

95

358742A1

LINKAGE

Bracket

1шт.

96

358747A1

SHANK

3 Piece

1шт.

97

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

98

438-32020

PIN,5/16" x 1 1/4", Coiled

1шт.

99

358748A1

POINT

1шт.
