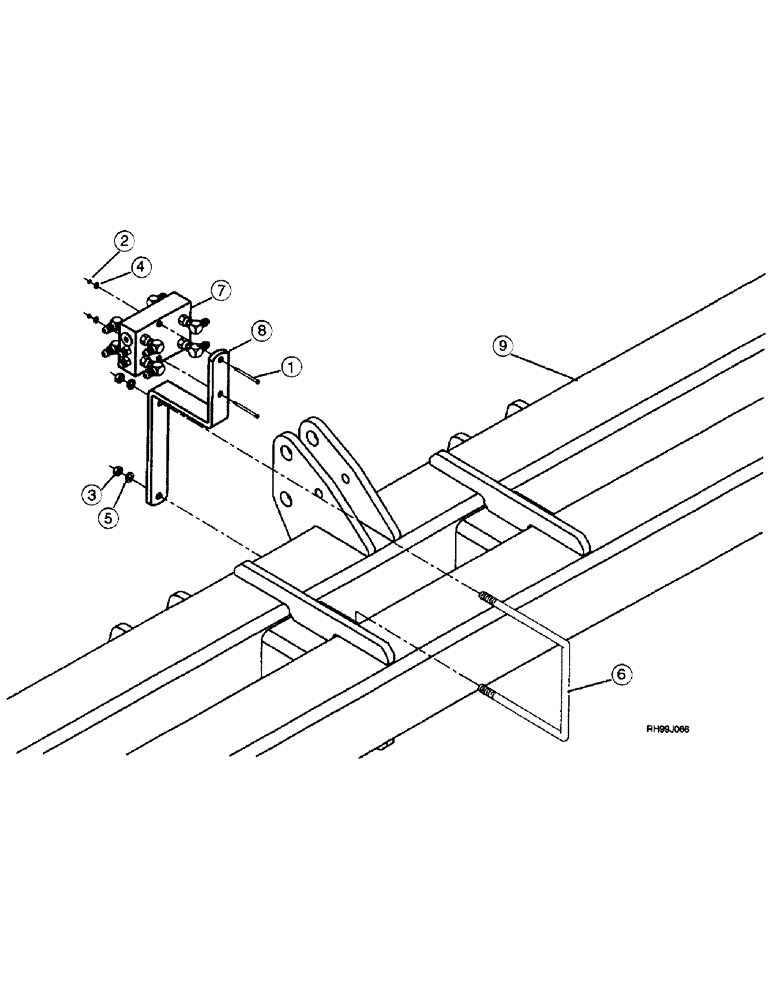

Запчасти Case IH 2220 (9-48) - MANIFOLD - HYDRAULIC

1

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4

2шт.

2

425-105

NUT,5/16"-18, G5

2шт.

3

9628503

NUT,3/8"-16, G5

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

142372A1

U-BOLT

Bolt, U

1шт.

7

372747A1

MANIFOLD

1шт.

8

372771A1

MOUNTING PARTS

Bracket

1шт.

9

REF

INSTRUCTION

Frame See Figure 9-40 Ref 12

1шт.
