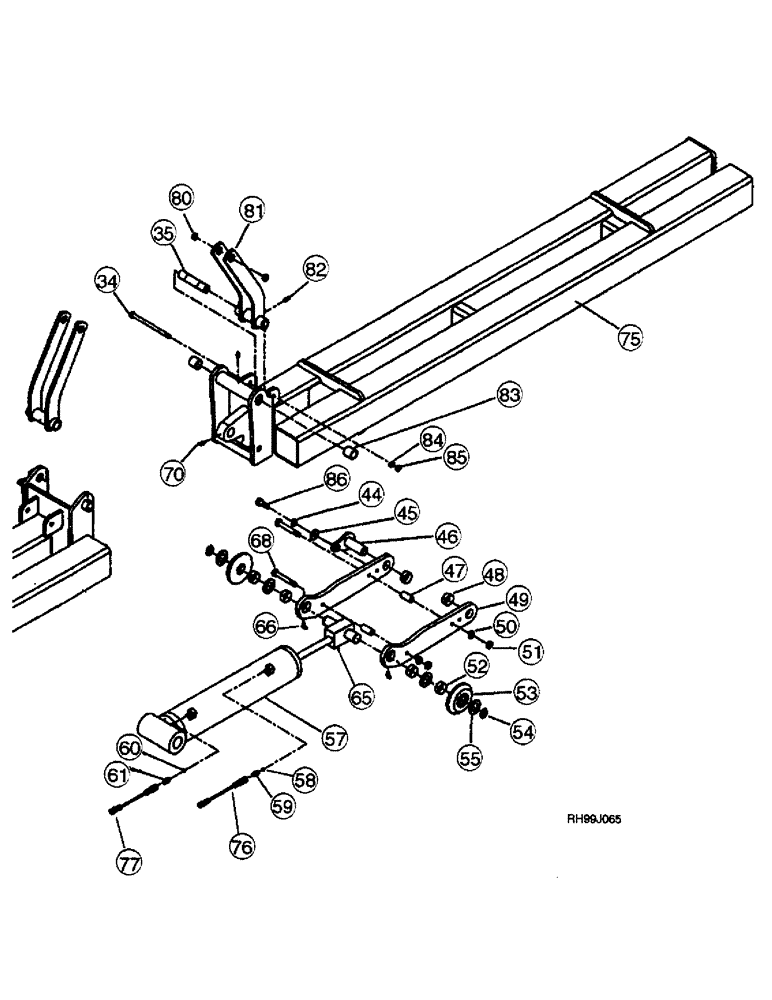

Запчасти Case IH 2220 (9-44) - FRAME - DOUBLE BAR
№
Артикул
Название
Примечание
Количество
44
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
45
495-21056
WASHER,1/2"
9/16 x 1-3/8 x 7/64
2шт.
46
369168A1
PLATE
Pin
2шт.
47
369174A1
BUSHING
2шт.
48
369159A1
BUSHING
1.875 OD x 1.51 ID x .75
8шт.
49
369199A1
STRAP
3/8"
4шт.
50
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
51
425-108
NUT,1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
52
369179A1
BUSHING
1.875 OD x 1.51 ID x .625
4шт.
53
369198A1
WHEEL,136.53mm OD x 25.4mm W
1/2"
4шт.
54
100-11150
SNAP RING,#150, Ext
Ring, Snap, #150, Ext
4шт.
55
369160A1
BUSHING
2-1/2 OD x 1-1/2 ID x 14
8шт.
57
372735A1
CYLINDER
4 x 24
1шт.
58
372736A1
SET SCREW,Hdls Hex Skt, 3/8" - 16 x 3/8", Flat Pt
Restrictor .062
1шт.
59
372737A1
ADAPTER
1шт.
60
372738A1
SET SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16", Flat Pt
Restrictor
1шт.
61
372739A1
ADAPTER
1шт.
65
369182A1
PIN
Block Assy
2шт.
66
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
Fitting, Grease 1/4 tpr x 3/4
4шт.
68
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
1/2 x 4-1/2
4шт.
75
369228A1
FRAME
Wing Right #24 Row 20 inch (1)
1шт.
75
369234A1
FRAME
Wing Right #24 Row 22 inch (1)
1шт.
75
372733A1
FRAME
Wing Right #16 Row 20 inch (1)
1шт.
75
369229A1
FRAME
Wing Left #24 Row 20 inch (1)
1шт.
75
369235A1
FRAME
Wing Left #24 Row 22 inch (1)
1шт.
75
372734A1
FRAME
Wing Left #16 Row 20 inch (1)
1шт.
76
369152A1
HOSE,132.00"
- #24 Row 20 & 22 inch (1) 132.00"
1шт.
76
372730A1
HOSE,0.25" ID x 96.00"
1шт.
77
369223A1
HOSE
Assy, 1/4 X 108 #24 Row 20 inch (1)
1шт.
77
369196A1
HOSE,120.00"
ASSY., 0.25" ID x , Return 120.00"
1шт.
77
372731A1
HOSE,0.25" ID x 72.00"
1шт.
80
357208A1
BUSHING
8шт.
81
369226A1
BRACKET
2шт.
82
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
6шт.
83
356913A1
BUSHING
2.125 OD x 1.754 ID x 2
4шт.
84
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
85
425-1012
NUT,3/4"-10, G5
3/4
4шт.
86
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
Выбрано товаров: 39
