Запчасти Case IH 2220 (9-40) - FRAME - DOUBLE BAR

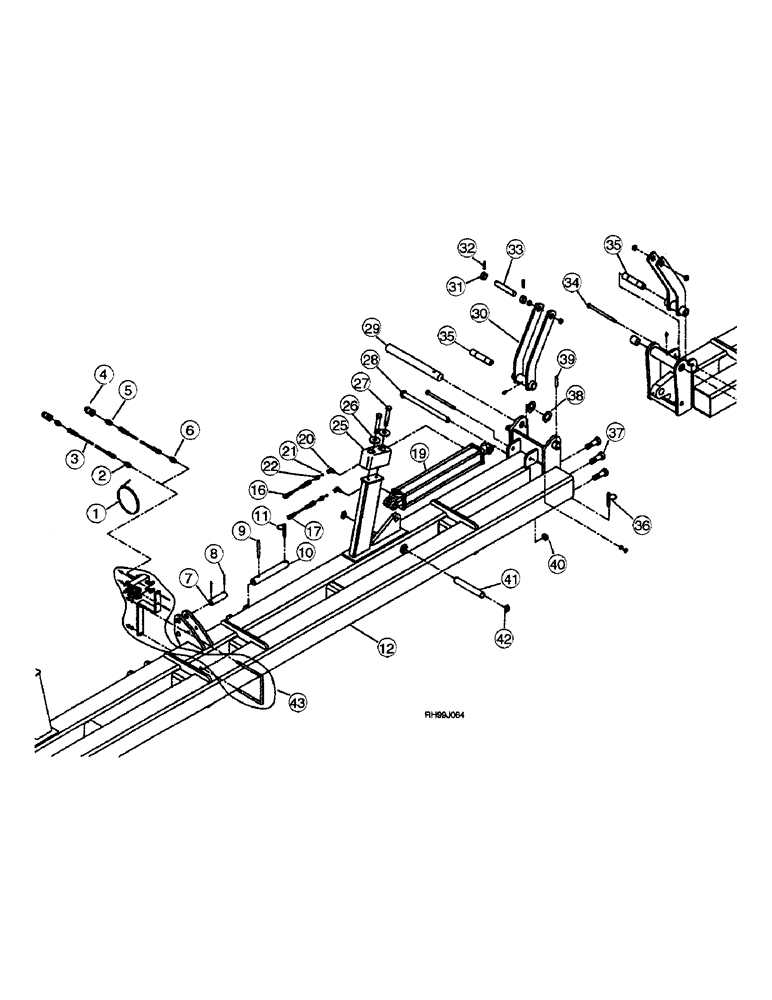

Схема запчастей Case IH 2220 - (9-40) - FRAME - DOUBLE BAR
37
12
36
7
5
43
11
41
3
22
35
2
20
30
42
10
34
8
29
9
31
28
6
19
4
21
16
40
26
35
27
39
38
25
33
17
1
32

Артикул

Название

Примечание

Количество

1

306132C1

CABLE TIE,14.5" L

Strap 14 in

4шт.

2

369175A1

FITTING

Adapter

1шт.

3

369163A1

HOSE

Assy 1/4 x 48

2шт.

4

1272770C2

COUPLING, BREAK AWAY

Coupling

2шт.

5

369161A1

BUSHING

Reducer

2шт.

6

369176A1

FITTING

Adapter

1шт.

7

369085A1

PIN

1 1/4 x 4 7/8

1шт.

8

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

9

438-13240

LOCK PIN,12.5mm OD x 63.5mm L, Coiled

Pin, 1/2" x 2 1/2", Slotted

2шт.

10

369083A1

PIN

1 7/16 x 10 7/8

2шт.

11

372907R91

LINCH PIN

Pin, Lock

2шт.

12

369227A1

FRAME

#24 Row 20 inch (1)

1шт.

12

369201A1

FRAME

#24 Row 22 inch (1)

1шт.

12

372732A1

FRAME

#16 Row 20 inch (1)

1шт.

16

369224A1

HOSE

Assy, 1/4 x 132 #24 Row 20 inch (1)

1шт.

16

369233A1

HOSE

Assy, 1/4 x 144 #24 Row 22 inch (1)

1шт.

16

369190A1

HOSE,0.25" ID x 840.00"

ASSY., 0.25" ID x 84.00"

1шт.

17

369153A1

HOSE

Assy, 1/4 X 108 #24 Row 20 & 22 inch (1)

1шт.

17

369191A1

HOSE

Assy, 1/4 x 60 #16 Row 20 inch (1)

1шт.

19

372742A1

CYLINDER

1шт.

20

372741A1

ELBOW

90 deg

2шт.

21

372736A1

SET SCREW,Hdls Hex Skt, 3/8" - 16 x 3/8", Flat Pt

Restrictor .062

2шт.

22

372737A1

ADAPTER

2шт.

25

337124A1

BUMPER

Stop

2шт.

26

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

4шт.

27

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

4шт.

28

337378A1

PIN

Lock

2шт.

29

337382A1

PIN,44.45mm OD x 411.18mm L

2шт.

30

369225A1

BRACKET

2шт.

31

355975A1

COLLAR

4шт.

32

38-32024

PIN,5/16" x 1 1/2", Coiled

4шт.

33

372745A1

PIN

2шт.

34

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

3/4 x 8 1/2

4шт.

35

372744A1

BUSHING

4шт.

36

A30338

PIN

Lock

2шт.

37

28-1840

BOLT,Hex, 1-1/8" - 12 x 2-1/2", Gr 8

1 1/8 x 2 1/2

6шт.

38

355964A1

BUSHING

2 1/2 x 1 3/4 x 14

4шт.

39

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

40

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1.25

2шт.

41

369180A1

SHAFT

Pin

2шт.

42

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

43

NSS

NOT SOLD SEPARAT

Package Manifold See Figure 9-48 Continued

1шт.

Выбрано товаров: 42
