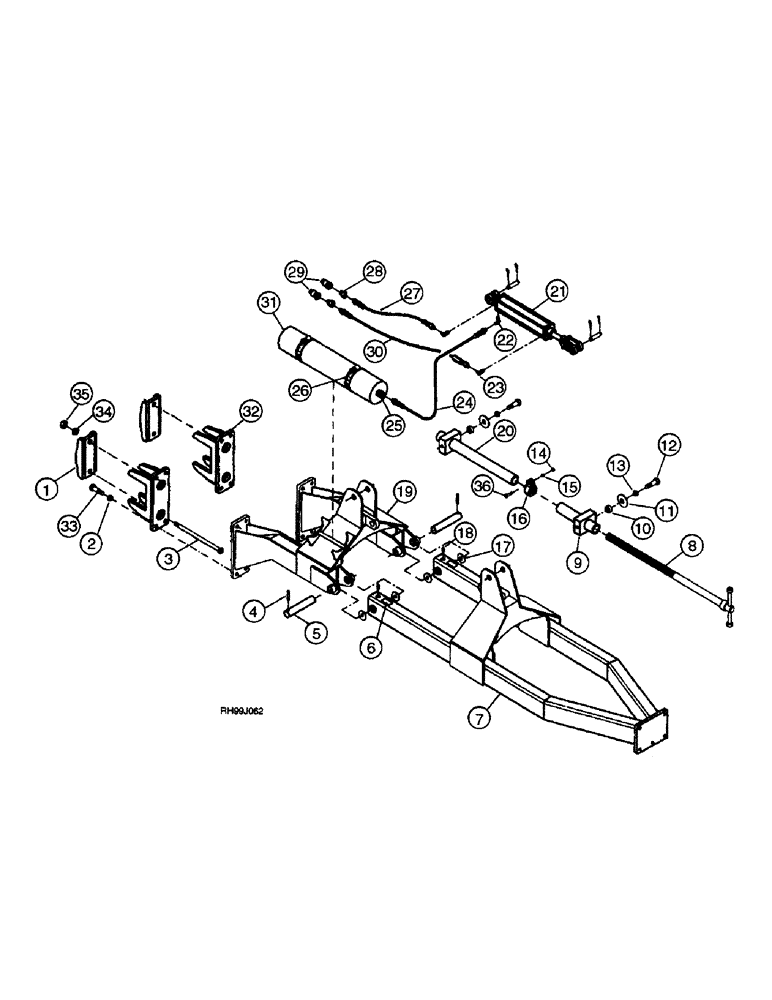

Запчасти Case IH 2220 (9-36) - WHEEL - LIFT ASSIST

1

374854A1

CAP

2шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

3

326-16176

BOLT,Hex, 1" - 8 x 11", Gr 8

4шт.

4

435-11232

GROOVED PIN,3/8" x 2", Type A

Pin, Grooved, 3/8" x 2", Type A

2шт.

5

374846A1

PIN

6-11/16

2шт.

6

369064A1

DECAL

Grease Daily

6шт.

7

374856A1

FRAME

Rear

1шт.

8

374844A1

ADJUSTMENT SCREW,1 1/4" x 32"

1шт.

9

374851A1

BRACKET

Slide

1шт.

10

374847A1

BUSHING

4шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

12

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4 x 1-3/4

4шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

14

9628503

NUT,3/8"-16, G5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

374845A1

LOCK NUT

1шт.

17

374858A1

WASHER

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

19

374857A1

FRAME

Front

1шт.

20

374850A1

HOUSING

1шт.

21

374843A1

CYLINDER,Double Acting, 34.92mm Rod, 254mm Stroke

1шт.

22

218-593

TEE,9/16"-18, 37 Degree

9/16 fl x fl x fl

1шт.

23

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 3/4 fl x 9/16 Or

2шт.

24

374762A1

HOSE

1/2 x 21 in

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

26

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

Clamp

2шт.

27

374760A1

HOSE

3/8 x 124 in

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

29

1285718C2

QUICK MALE COUPLING

3/4 NF

2шт.

30

374761A1

HOSE

3/8 x 136 in

1шт.

31

374849A1

ACCUMULATOR

Assy

1шт.

32

374855A1

MOUNTING PARTS

Mount

2шт.

33

413-16176

BOLT,Hex, 1" - 8 x 11", Gr 5

1 x 11

1шт.

34

492-11100

LOCK WASHER,1"

1"

4шт.

35

425-1016

NUT,1"-8, G5

4шт.

36

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Continued Hex, 3/8"-16 x 1 1/2", G5

1шт.
