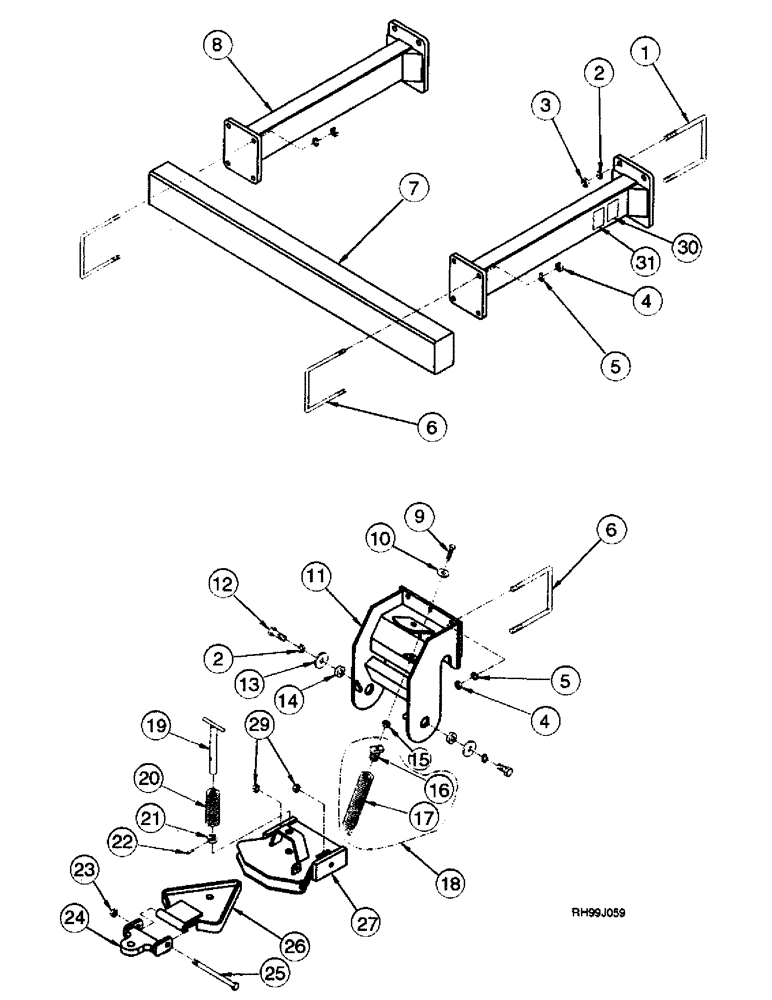

Запчасти Case IH 2220 (9-32) - HITCH - NURSE TANK

1

147451C2

U-BOLT,3/4" - 10 x 217.45mm

Bolt, U 3/4 x 7

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

10шт.

3

425-1012

NUT,3/4"-10, G5

3/4

8шт.

4

425-1010

NUT,5/8"-11, G5

14шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

6

91073C1

BOLT,U, 5/8" - 11 x 134mm

U 5/8

7шт.

7

374936A1

TUBE,60.3" Length

4 x 6 x 60

1шт.

8

374935A1

ARM

Mount, 39 in Arm

2шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

11

374865A1

TRAILER HITCH

Hitch

1шт.

12

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

13

374874A1

WASHER

2шт.

14

374873A1

BUSHING

2шт.

15

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

16

NSS

NOT SOLD SEPARAT

Plug

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

374824A1

SPRING

Assy Consists Of : 16, 17

1шт.

19

374877A1

PIN

1шт.

20

374862A1

SPRING

1шт.

21

355975A1

COLLAR

1шт.

22

38-32024

PIN,5/16" x 1 1/2", Coiled

1шт.

23

231-14412

LOCK NUT,3/4"-10, GB

NUT, LOCK, 3/4"-10, GB

1шт.

24

374932A1

LEVER

1шт.

25

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4 x 7-1/2; 5

1шт.

26

374931A1

BAR

1шт.

27

374937A1

TRANSFER BOX

Box

1шт.

29

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4

2шт.

30

369143A1

DECAL

Warning

2шт.

31

369136A1

DECAL

2шт.
