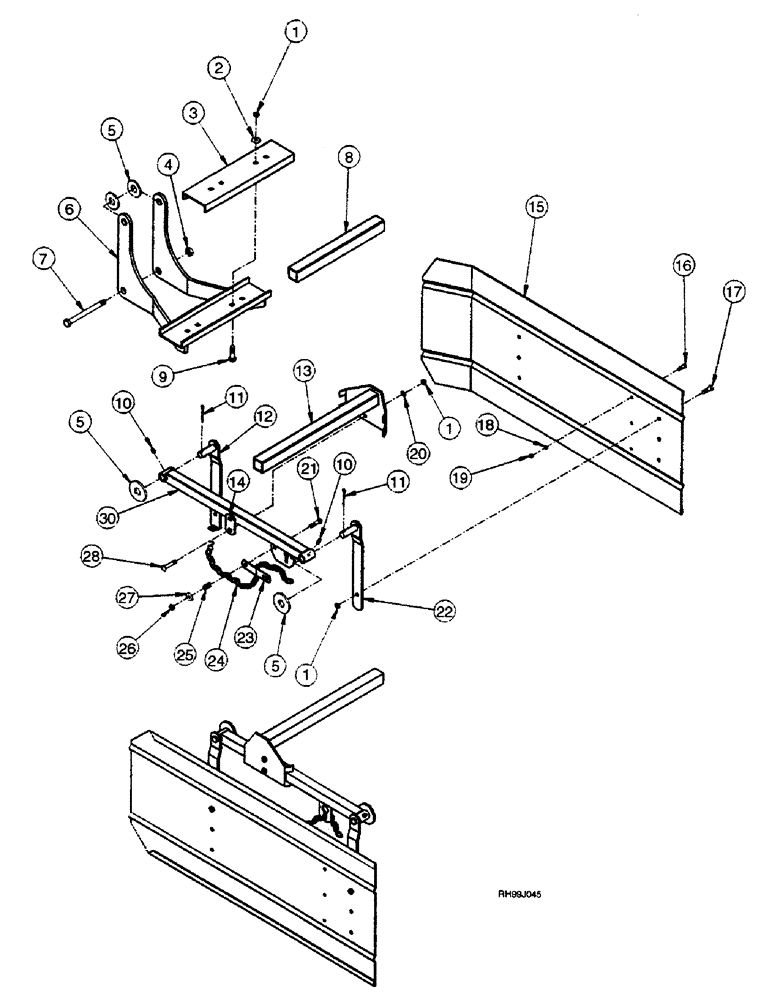

Запчасти Case IH 2220 (9-28) - FENDERS - OPEN TOP

1

9628503

NUT,3/8"-16, G5

10шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

3

372698A1

CAP

Bracket

1шт.

4

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

5

495-11081

WASHER,3/4", SAE

6шт.

6

372692A1

MOUNTING PARTS

Mount

1шт.

7

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7; 5

2шт.

8

372701A1

TUBE,15" Length

1шт.

9

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

Bolt, Carriage 3/8 x 2-1/2

2шт.

10

326-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

11

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

12

372688A1

ARM

Front

2шт.

13

372693A1

TUBE

2шт.

14

372696A1

STRAP

2.75 in lg

2шт.

15

372690A1

FENDER

2шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

493-81008

LOCK WASHER,Int Tooth, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

2шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

433-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

Bolt 5/16 x 1 1/2

2шт.

22

372689A1

ARM

Rear

2шт.

23

372697A1

STRAP

4.688 in lg

2шт.

24

372695A1

CHAIN (AG)

Chain Includes : Hook

2шт.

25

372694A1

SPRING

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

27

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16") 5/16", SAE

2шт.

28

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

Bolt 3/8 x 2-1/4

4шт.

30

372699A1

TUBE,24" Length

2шт.
