Запчасти Case IH 2220 (9-22) - SWEEP OPTIONS

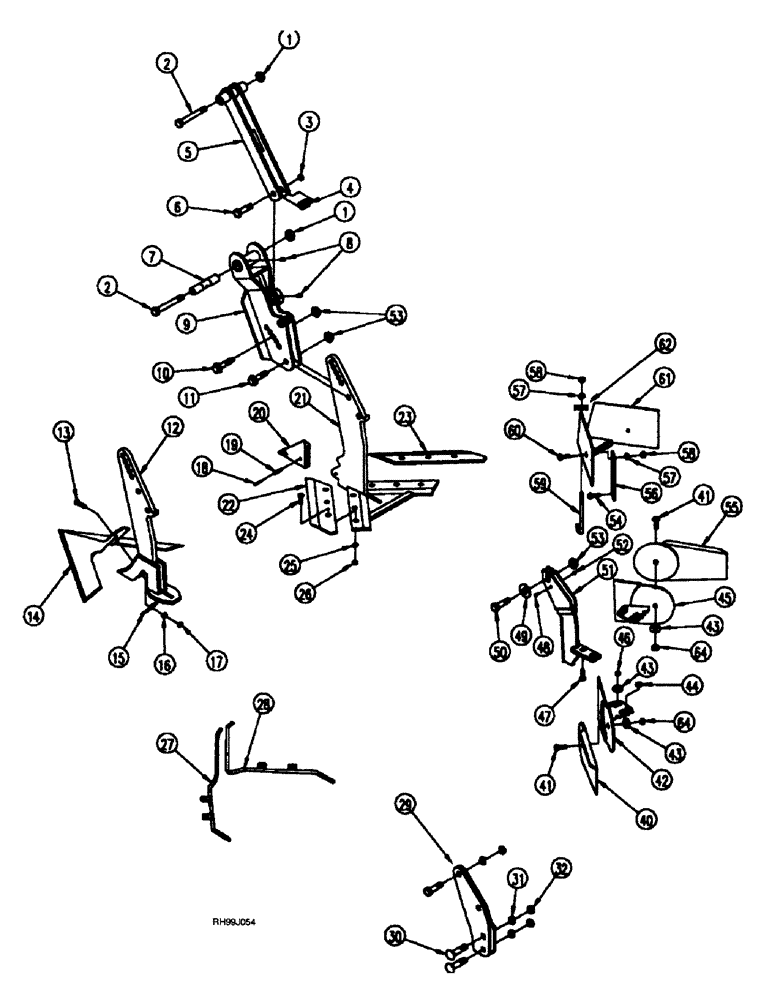

Схема запчастей Case IH 2220 - (9-22) - SWEEP OPTIONS
44
27
46
18
23
21
40
5
41
4
41
26
50
43
57
47
1
10
32
51
17
52
2
24
57
3
56
19
22
7
2
15
62
53
6
48
60
28
20
53
11
58
55
58
9
64
12
16
54
45
59
43
43
1
61
29
49
25
8
64
13
31
30
14
42

Артикул

Название

Примечание

Количество

1

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4 x 6-1/2

1шт.

3

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

4

358749A1

BUSHING

1шт.

5

358742A1

LINKAGE

Bracket

1шт.

6

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

7

358751A1

BUSHING

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

9

358776A1

TUBE

Support Includes : 8

1шт.

10

358769A1

BOLT,Hex Flg, 5/8" - 11 x 3", Gr 5

Screw 5/8 x 3

1шт.

11

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

Flange 5/8 x 2-1/2; 8

1шт.

12

358743A1

SHANK

1шт.

13

419-3748

PLOW BOLT,#3, 7/16" - 14 x 3", Gr 5

Bolt 7/16 x 3

2шт.

14

372652A1

SHOVEL

Sweep, 12 in Hard Face

1шт.

14

372653A1

SHOVEL

Sweep, 14 in Hard Face

1шт.

14

372654A1

SHOVEL

Sweep, 16 in Hard Face

1шт.

14

372655A1

SHOVEL

Sweep, 18 in Hard Face

1шт.

14

372656A1

SHOVEL

Sweep, 20 in Hard Face

1шт.

14

372650A1

SHOVEL

Sweep, 12 in Left, Hard Faced

1шт.

14

372651A1

SHOVEL

Sweep, 12 in Right, Hard Faced

1шт.

14

372638A1

SHOVEL

Sweep, 14 in Left, Hard Faced

1шт.

14

372639A1

SHOVEL

Sweep, 14 in Right, Hard Faced

1шт.

14

372640A1

SHOVEL

Sweep, 16 in Left, Hard Faced

1шт.

14

372641A1

SHOVEL

Sweep, 16 in Right, Hard Faced

1шт.

14

372642A1

SHOVEL

Sweep, 18 in Left, Hard Faced

1шт.

14

372643A1

SHOVEL

Sweep, 18 in Right, Hard Faced

1шт.

14

372644A1

SHOVEL

Sweep, 20 in Left, Hard Faced

1шт.

14

372645A1

SHOVEL

Sweep, 20 in Right, Hard Faced

1шт.

14

372646A1

SHOVEL

Sweep, 24 in Left, Hard Faced

1шт.

14

372647A1

SHOVEL

Sweep, 24 in Right, Hard Faced

1шт.

14

372648A1

SHOVEL

Sweep, 26 in Left, Hard Faced

1шт.

14

372649A1

SHOVEL

Sweep, 26 in Right, Hard Faced

1шт.

15

358744A1

PLATE

Base

1шт.

16

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

17

425-107

NUT,7/16"-14, G5

1шт.

18

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

19

438-32020

PIN,5/16" x 1 1/4", Coiled

1шт.

20

358748A1

POINT

Chrome

1шт.

21

358747A1

SHANK

1шт.

22

372660A1

BLADE

Sweep, 17 in Left

1шт.

22

372678A1

BLADE

Sweep, 17-5/8 in Left

1шт.

22

372680A1

BLADE

Sweep, 21 in Left

1шт.

22

372684A1

BLADE

Sweep, 23-3/4 in Left

1шт.

22

?372682A1

Left

1шт.

22

372686A1

BLADE

Sweep, 30 in Left

1шт.

23

372659A1

BLADE

Sweep, 17 in Right

1шт.

23

372677A1

BLADE

Sweep, 17-5/8 in Right

1шт.

23

372679A1

BLADE

Sweep, 21 in Right

1шт.

23

372683A1

BLADE

Sweep, 23-3/4 in Right

1шт.

23

372681A1

BLADE

Sweep, 25 in Right

1шт.

23

372685A1

BLADE

Sweep, 30 in Right

1шт.

24

419-2620

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

Bolt 3/8 x 1-1/4

6шт.

25

492-11038

LOCK WASHER,3/8"

6шт.

26

9628503

NUT,3/8"-16, G5

6шт.

27

374923A1

TUBE,5.180, 4" Length

#15-1/2 & 17-1/2 inch wing blade, left (1)

1шт.

27

374925A1

TUBE,5.180, 4" Length

#19 or 23 inch wing blade, left (1)

1шт.

27

374927A1

TUBE

#25 or 28 inch wing blade, left (1)

1шт.

28

374922A1

TUBE,4, 5.22" Length

15-1/2 & 17-1/2 inch wing blade, right (1)

1шт.

28

374924A1

TUBE,5.22, 4" Length

#19 or 23 inch wing blade, right (1)

1шт.

28

374926A1

TUBE

#25 or 28 inch wing blade, right (1)

1шт.

29

374919A1

ADAPTER

1шт.

30

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

Bolt 1/2 x 2

2шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

40

374876A1

BLADE

Sweep Left

1шт.

41

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

Bolt 1/2 x 1

2шт.

42

374930A1

FRAME

Left

1шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

44

425-288

FLANGE NUT,Flg, 1/2"-13, G5

Flange 1/2

1шт.

45

374929A1

FRAME

Right

1шт.

46

231-1448

NUT,1/2"-13, GB

Lock 1/2

1шт.

47

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

Bolt 1/2 x 1-1/4

2шт.

48

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

49

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

50

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

1шт.

51

374928A1

MOUNTING PARTS

Mount

1шт.

52

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

53

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8

3шт.

54

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

Bolt 1/2 x 1-1/4

2шт.

55

374875A1

BLADE

Sweep Right

1шт.

56

374941A1

PLATE

2шт.

57

492-11038

LOCK WASHER,3/8"

3шт.

58

9628503

NUT,3/8"-16, G5

3шт.

59

374942A1

BOLT

1шт.

60

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

Bolt, Carriage 3/8 x 1

2шт.

61

374940A1

SHIELD

1шт.

62

374943A1

SPACER

1шт.

63

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.
