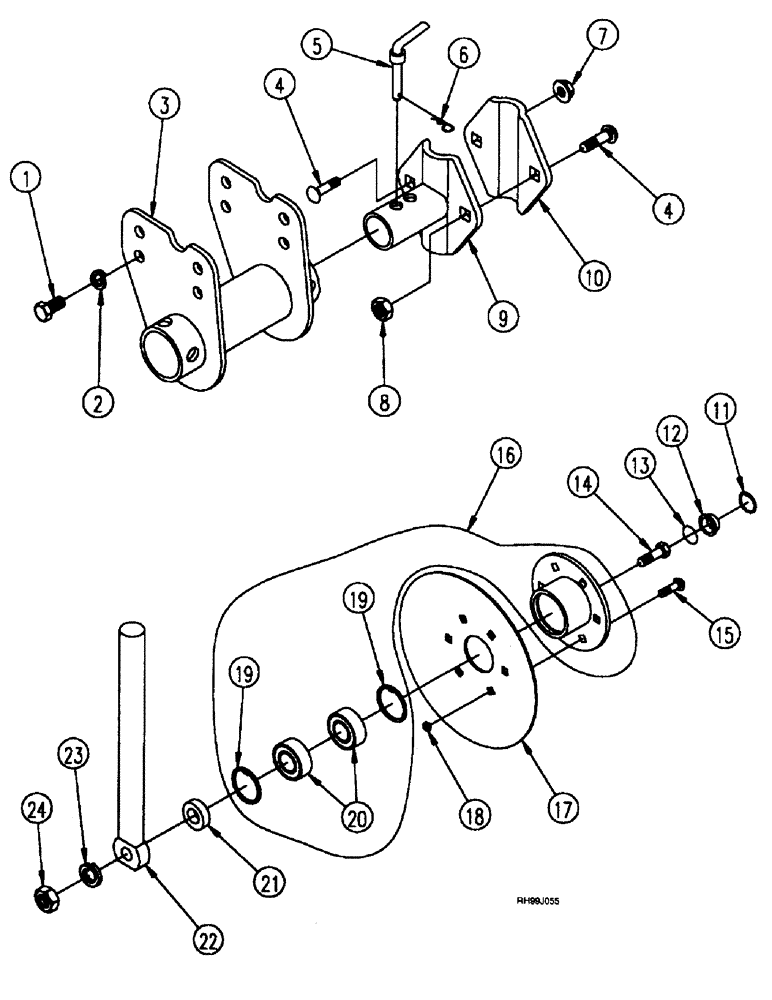

Запчасти Case IH 2220 (9-18) - BARRING-OFF DISC OPTION
№
Артикул
Название
Примечание
Количество
1
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1 Hex, 1/2"-13 x 1", G5, Full Thd
4шт.
2
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
3
374909A1
MOUNTING PARTS
Mount #20 or 22 inch row spacing (1)
1шт.
3
374915A1
MOUNTING PARTS
Mount #30 inch row spacing (1)
1шт.
3
374917A1
MOUNTING PARTS
Mount #36 inch row spacing (1)
1шт.
3
374918A1
MOUNTING PARTS
Mount #38 inch row spacing (1)
1шт.
4
433-1028
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5
Bolt 5/8 x 1-3/4
4шт.
5
369100A1
PIN
2шт.
6
369097A1
PIN
5/32 x 3 1/4
2шт.
7
425-2810
FLANGE NUT,Flg, 5/8"-11, G5
5/8
2шт.
8
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
2шт.
9
374910A1
SUPPORT TUBE
Tube #20 or 22 inch row spacing (2)
1шт.
9
374916A1
SUPPORT TUBE
Tube #30, 36, 38 or 40 inch row spacing (2)
1шт.
10
369101A1
CAP
2шт.
11
374808A1
RING, SNAP
1шт.
12
369107A1
CAP
Dust
1шт.
13
374809A1
O-RING
1шт.
14
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
3/4 x 4 #20 or 22 inch row spacing (1)
1шт.
14
413-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5
3/4 x 3-3/4 #30, 36, 38 or 40 inch row spacing (1)
1шт.
15
433-612
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
6шт.
16
374914A1
HUB ASSY.
Hub Assy #20 or 22 inch row spacing (1) Includes : 19, 20
1шт.
16
369106A1
HUB
Assy #30, 36, 38 or 40 inch row spacing (1) Includes : 19, 20
1шт.
17
369103A1
DISC
Plow 14
1шт.
18
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
6шт.
20
369108A1
BALL BEARING,0.75" ID
Roller
2шт.
21
374911A1
SPACER
#20 or 22 inch row spacing (1)
1шт.
21
495-11081
WASHER,3/4", SAE
#30 or 36, 38 or 40 inch row spacing (1) 3/4", SAE
1шт.
22
374912A1
SHANK
#20 or 22 inch row spacing (1) Right
1шт.
22
369104A1
SHANK
#30 or 36, 38 or 40 inch row spacing (1) Right
1шт.
22
374913A1
SHANK
#20 or 22 inch row spacing (1) Left
1шт.
22
369105A1
SHANK
#30 or 36, 38 or 40 inch row spacing (1) Left
1шт.
23
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
24
425-1012
NUT,3/4"-10, G5
3/4
1шт.
Выбрано товаров: 34
