Запчасти Case IH 200 (75.200.07) - SPIKE TOOTH HARROW (75) - SOIL PREPARATION

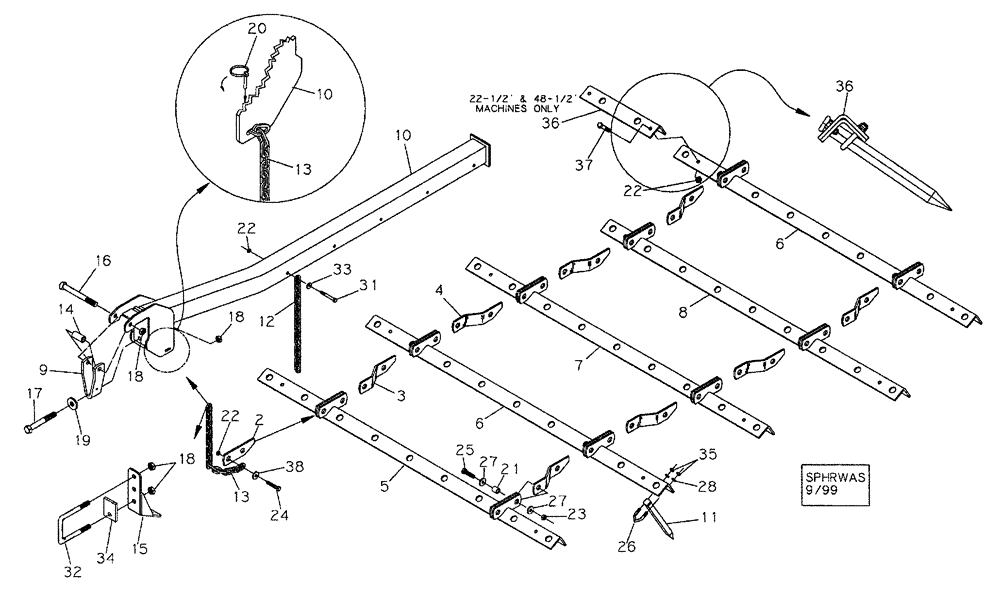

Схема запчастей Case IH 200 - (75.200.07) - SPIKE TOOTH HARROW (75) - SOIL PREPARATION
38
23
3
13
15
20
13
10
27
18
35
8
26
33
11
27
22
6
12
16
36
6
36
14
2
37
17
28
18
24
22
18
7
22
21
34
32
5
4
9
31
10
25
19

Артикул

Название

Примечание

Количество

2

06260050

LINK

Straight

2шт.

3

06260068

LINK

RH

4шт.

4

06260069

LINK

LH

4шт.

5

06260061

CHANNEL

6-Spike, First Bar, 40.50 Inches

1шт.

5

06260071

CHANNEL

7-Spike, First Bar, 48 Inches

1шт.

5

06260091

CHANNEL

9-Spike, First Bar, 63 Inches

1шт.

5

06260111

CHANNEL

11-Spike, First Bar, 78 Inches

1шт.

5

06260121

CHANNEL

12-Spike, First Bar, 85.50 Inches

1шт.

6

06260062

CHANNEL

6-Spike, Second And Fifth Bar, 40.50 Inches

2шт.

6

06260072

CHANNEL

7-Spike, Second And Fifth Bar, 48 Inches

2шт.

6

06260092

CHANNEL

9-Spike, Second And Fifth Bar, 63 Inches

2шт.

6

06260112

CHANNEL

11-Spike, Second And Fifth Bar, 78 Inches

2шт.

6

06260122

CHANNEL

12-Spike, Second And Fifth Bar, 85.50 Inches

2шт.

7

06260063

CHANNEL

6-Spike, Third Bar, 40.50 Inches

1шт.

7

06260073

CHANNEL

7-Spike, Third Bar, 48 Inches

1шт.

7

06260093

CHANNEL

9-Spike, Third Bar, 63 Inches

1шт.

7

06260113

CHANNEL

11-Spike, Third Bar, 78 Inches

1шт.

7

06260123

CHANNEL

12-Spike, Third Bar, 85.50 Inches

1шт.

8

06260064

BAR

6-Spike, Fourth Bar, 40.50 Inches

1шт.

8

06260074

CHANNEL

7-Spike, Fourth Bar, 48 Inches

1шт.

8

06260094

CHANNEL

9-Spike, Fourth Bar, 63 Inches

1шт.

8

06260114

CHANNEL

11-Spike, Fourth Bar, 78 Inches

1шт.

8

06260124

CHANNEL

12-Spike, Fourth Bar, 85.50 Inches

1шт.

9

06405150

CLAMP

Mount

2шт.

10

87646404

ARM

Spike Harrow

2шт.

11

33407513

SHOVEL

Spike

1шт.

12

22004161

CHAIN,528.57mm L

1/4 x 19-1/2, Lift

10шт.

13

22004341

CHAIN

1/4 x 34-3/4, Pull

2шт.

14

06405140

SPACER

Spacer

2шт.

15

06406050

BRACKET

Tow Chain

1шт.

16

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

17

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

18

85700693

NUT,5/8" - 11, Gr C

1шт.

19

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

20

A30338

PIN

1/4 x 1-3/4, Klik

4шт.

21

02323001

BUSHING

Heat Treated

18шт.

22

86992213

NUT

3/8, NC, Stover

12шт.

23

86992215

LOCK NUT,1/2"-13, GC

Stover

18шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

18шт.

26

16306050

U-BOLT

3/8 x 1-1/16 x 2-1/8

1шт.

27

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

40шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

30

425-1010

NUT,5/8"-11, G5

4шт.

31

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

10шт.

32

87629089

U-BOLT

2шт.

33

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

34

06406040

BAR

Spacer Used On Double Fold Models 38-1/2 Through 60-1/2

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

06406030

CHANNEL

Spike Extension

1шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

38

17407015

WASHER

7/16 ID x 1/8, Thick

2шт.

39

06406300

KIT

Anti-Tangle Chain (Not Shown)

1шт.

Выбрано товаров: 53
