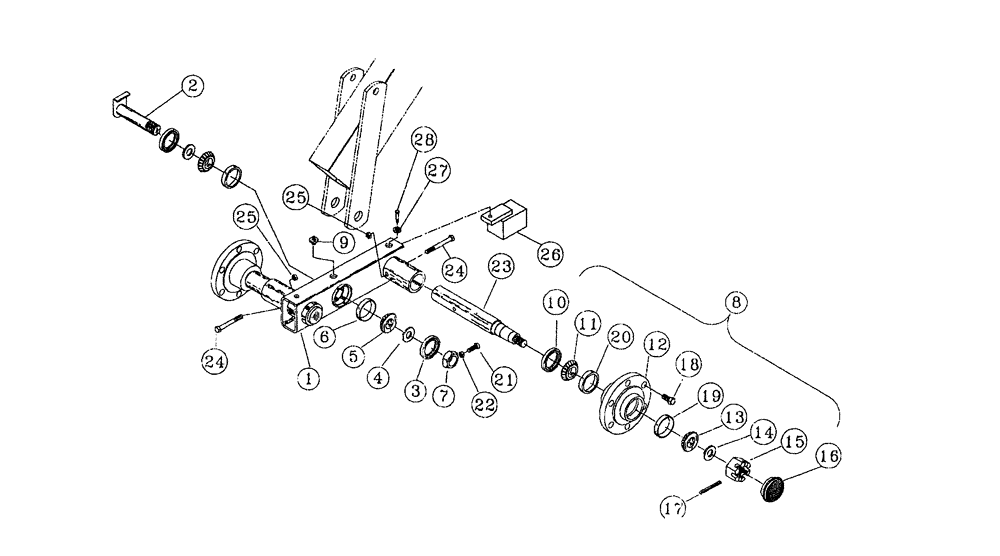

Запчасти Case IH 200 (44.100.04) - DOUBLE FOLD WALKING AXLE 38-1/2 - 60-1/2 2005 AND PRIOR UNITS (44) - WHEELS

1

06400450

TUBE ASSY.

Walking Axle, Rh, Wing Only

1шт.

1

06400470

TUBE ASSY.

Walking Axle, Lh, Wing Only

1шт.

1

06400870

TUBE ASSY.

Walking Axle, Rh, Main Frame

1шт.

1

06400880

BEAM

Walking Axle, Lh, Main Frame

1шт.

2

06400290

SPECIAL PIN

5-15 - 15 Long, Wing Only

1шт.

2

04661850

PIN

6-1/4 Long, Main Frame

1шт.

3

21932090

SEAL

2.094, CR20952, Wing Only

2шт.

3

21932510

SEAL

3.148, CR22870, Main Frame

2шт.

4

06201425

SPACER

Wing Only

2шт.

4

06400573

SPACER

Main Frame

2шт.

5

21871500

ROLLER BEARING,1.5" ID x 2.56" OD x 0.71"

1.50, Timken LM29749, Wing Only

2шт.

5

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50, Timken 2776, Main Frame

2шт.

6

21882561

BEARING, CUP,1.5005" ID x 2.5635" OD x 0.71"

2.56 OD Cup, Timken LM9710, Wing Only

2шт.

6

21883000

BEARING, CUP,76.2125 mm OD x 23.9135 mm

3.00 OD Cup, Timken 2720, Main Frame

2шт.

7

14032409

NUT

1-1/2

1шт.

8

28178300

HUB ASSY.

783, 6-Bolt, Wing Only

2шт.

8

28150800

HUB ASSY.

50-8, 8 Bolt, Main Frame

2шт.

9

15302005

FITTING

1/8 NPT Self Tap Zerk

1шт.

10

21931870

SEAL

1.875 ID x 3.005 OD, CR18823, Wing Only

1шт.

10

21932502

SEAL

2-1/2 ID x 3.256 OD, CR24924, Main Frame

1шт.

11

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.624, Timken LM501349

1шт.

12

28278300

HUB

783 With Cups, Wings Only

1шт.

12

28250800

HUB ASSY.

50-8 With Cups, Main Frame

1шт.

13

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25, Timken LM67048, Wings Only

1шт.

13

21872005

ROLLER BEARING,50 mm ID

2, Timken LM104948, Main Frame

1шт.

14

17014002

WASHER

7/8, 2 OD, Wings Only

1шт.

14

17916100

WASHER

1, Main Frame

1шт.

15

14051402

NUT

7/8 NF, Wings Only

1шт.

15

14051603

SLOTTED NUT

1 NF, Main Frame

1шт.

16

28477700

HUB CAP

Wings Only

1шт.

16

28460800

DUST CAP

Main Frame

1шт.

17

14700502

COTTER PIN

5/32 x 1-1/2, Wings Only

1шт.

17

14700600

COTTER PIN

3/16 x 2, Main Frame

1шт.

18

16408053

SPECIAL BOLT

1/2 NF x 1-15/32 Lug, Wings Only

6шт.

18

14081003

WHEEL NUT

5/8 NF, Main Frame

8шт.

19

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 OD, Timken LM67010, Wings Only

1шт.

19

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89 OD, Timken LM501310, Main Frame

1шт.

20

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89 OD, Timken LM501310, Wings Only

1шт.

20

21883265

ROLLER BEARING,2" ID x 3.22 mm OD x 0.8652 mm

3.228 OD, Timken JLM104910, Main Frame

1шт.

21

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head Set

1шт.

22

14030601

JAM NUT

3/8 NC, Jam

1шт.

23

28378350

AXLE SHAFT

783 - 1-7/8 Spindle, Wings Only

2шт.

23

28350832

SPINDLE

2-1/2, 12 Main Frame

2шт.

23

28350821

SPINDLE

2-1/2, 14 Main Frame

2шт.

24

16008135

BOLT

1/2 x 3-1/4 NC, Hex, GD 5, Wings Only

2шт.

24

16008165

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 NC, Hex, GD 5, Main Frame

2шт.

25

14110801

LOCK NUT

1/2 NC, Stover Lock

2шт.

26

06406140

BRACKET

Wheel Weight, 38-44 Units Only, Wings Only

1шт.

27

17210001

LOCK WASHER

5/8, Wings Only

1шт.

28

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Wings Only

1шт.
