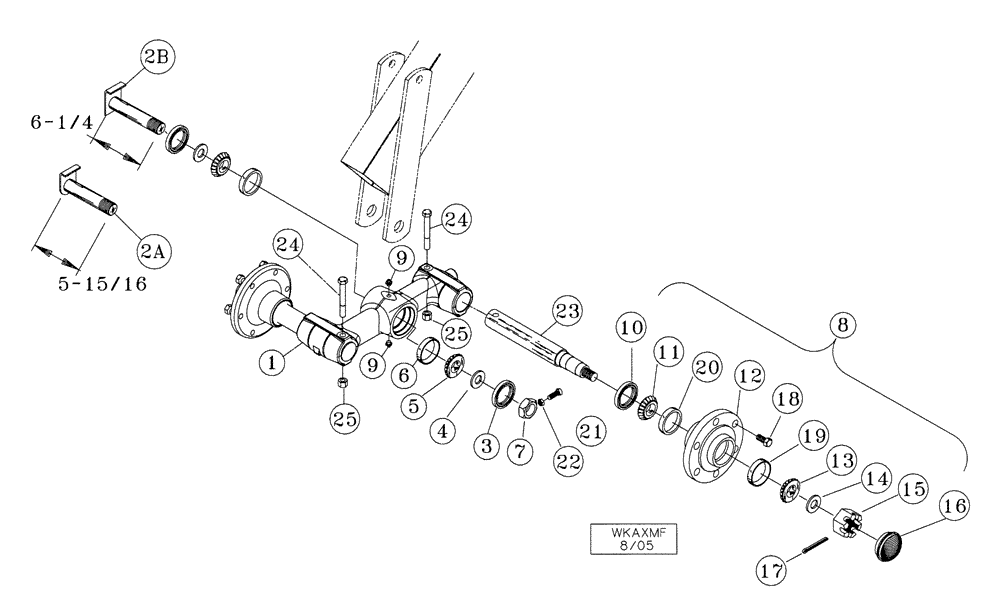

Запчасти Case IH 200 (44.100.03) - DOUBLE FOLD WALKING AXLE ASSEMBLY 38-1/2 THROUGH 46-1/2 (44) - WHEELS

1

87366225

CASTING

Walking Tandem With Cups, 50-8

2шт.

2

04661850

PIN

6-1/4

1шт.

3

21932510

SEAL

2.29, CR 22870

2шт.

4

06400573

SPACER

2шт.

5

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 Bore, Timken 2776

2шт.

6

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00 OD, Timken 2720

2шт.

7

14032409

NUT

1-1/2, Jam

1шт.

8

28150800

HUB ASSY.

50-8, 8-Bolt

2шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

1шт.

10

21932502

SEAL

2-1/2 ID x 3.256 OD, CR 24924

1шт.

11

21872005

ROLLER BEARING,50 mm ID

2 Bore, Timken LM104948

1шт.

12

28250800

HUB ASSY.

50-8

1шт.

13

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 Bore, Timken LM501349

1шт.

14

17916100

WASHER

1

1шт.

15

427652

SLOTTED NUT,1"-14, G5

1шт.

16

28460800

DUST CAP

1шт.

17

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

18

554480R1

WHEEL NUT

5/8, NF, Wheel

8шт.

19

663558R1

BEARING CUP

2.89 OD, Timken LM501310

1шт.

20

376463C1

BEARING CUP

3.228 OD, Timken JLM104910

1шт.

21

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head Set

1шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

23

87327585

SPINDLE

2-1/2, 50-8

2шт.

24

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.
